3.5.3. Exciter advanced controls
Advanced controls for the Big Bass module reside in the Visualizer above its main controls.
Violet is the signature color of the Big Bass section.
3.5.3.1. Frequency

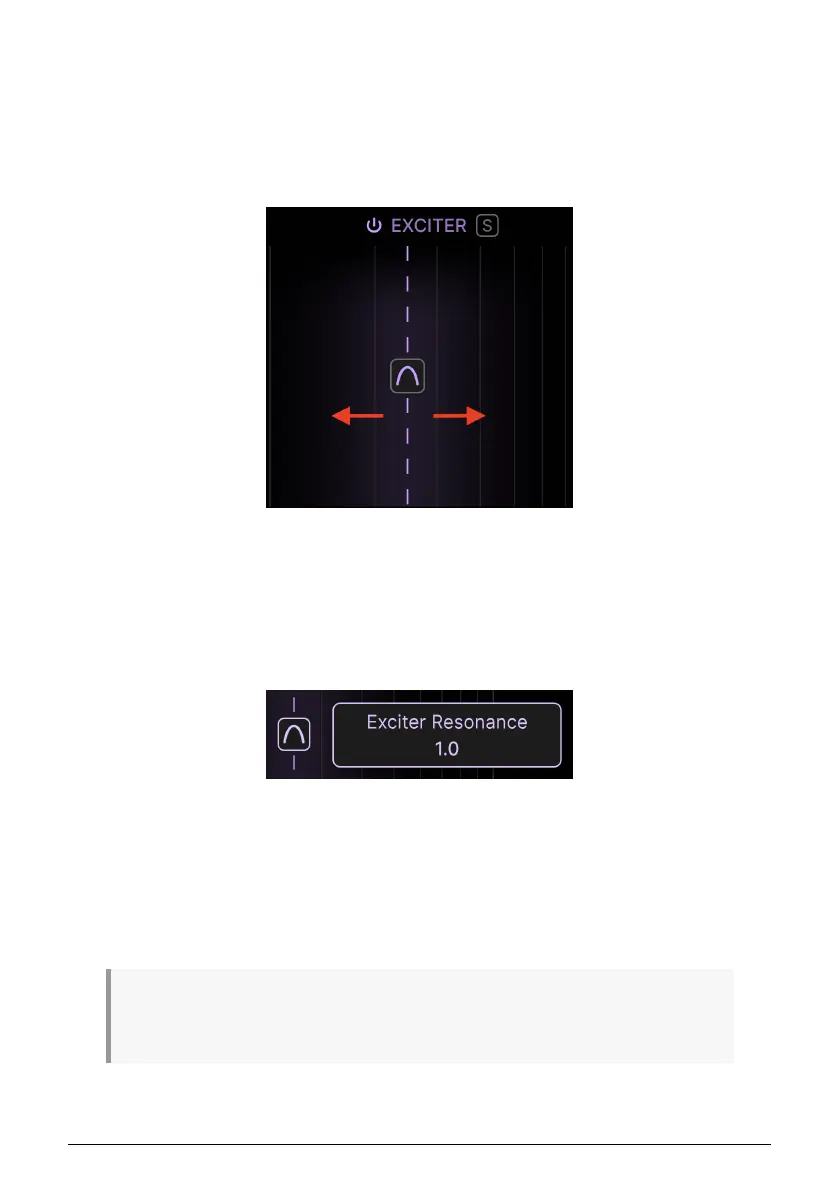

Slide the dotted violet vertical line left or right. This duplicates the function of the Exciter
module’s Frequency knob, but you may find this movement more precise. It sets the cutoff
frequency of a high-pass filter. Material above the cutoff gets processed by the Exciter, with
the dry signal retained in parallel.
3.5.3.2. Resonance
The arch-shaped icon in the middle of the frequency bar is the Resonance control for the
Exciter’s high-pass filter. Drag up or down on it to adjust the value, and the shape of the arch
will change to reflect the bandwidth of the resonance peak. A narrower arch also means a
higher amplitude in the emphasis range.
Similarly to the Big Bass module, you would increase the resonance to focus extra attention from the
Exciter on a particular frequency band you find lacking in clarity or detail. Since Resonance is located
at the input of the Exciter signal, it will emphasize harmonic generation around the set Frequency.
Hover over the Exciter section’s
Resonance to see the value displayed to
the right.
13 Arturia - User Manual Bus EXCITER-104 - THE BUS EXCITER-104 MAIN PANEL
