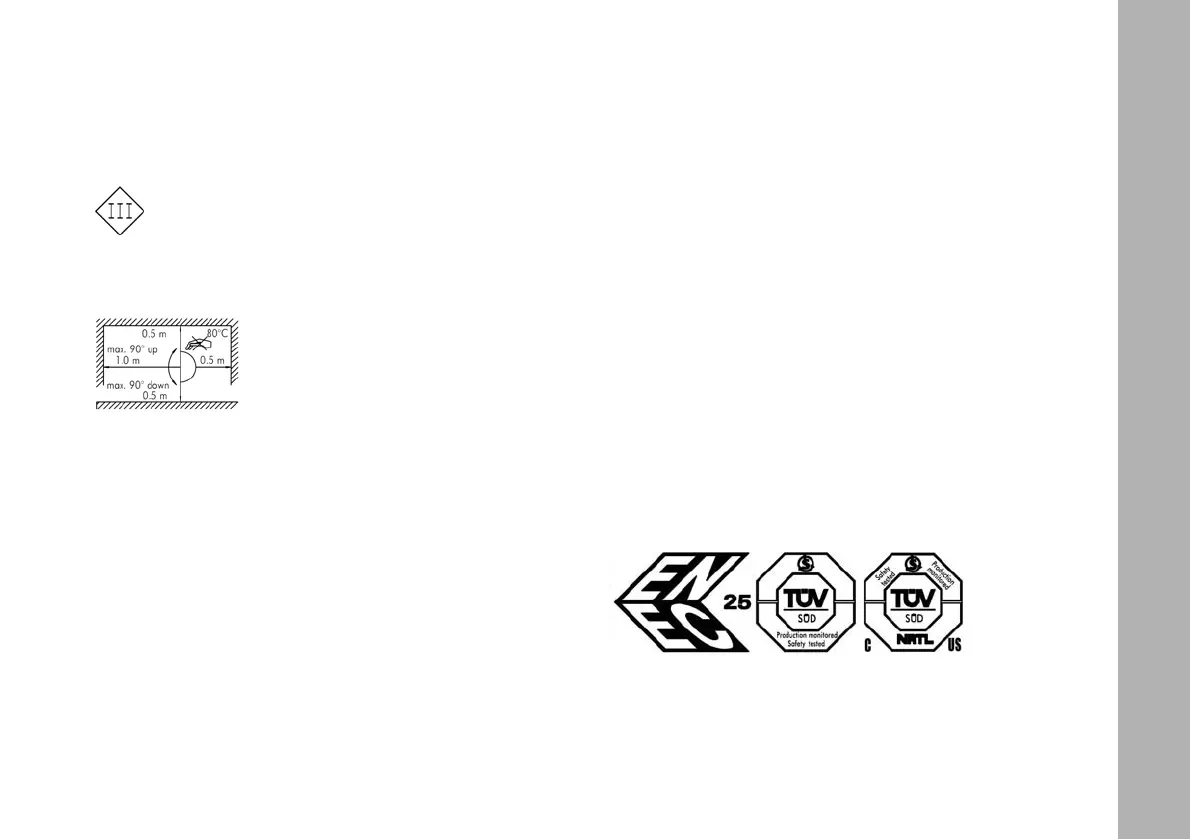

Specification
73
Construction
Color. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Blue / silver or black
Housing . . . . . . . . . . . . . . . . . . . . . . . . . Composite and aluminum
Protection rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP 20
Protection class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . III
Installation
Mounting. . . . . . . . . . .28 mm spigot or 16 mm / 28 mm combo pin
Orientation . . . . . . . . . . . . . . . . . . . . . +/- 90°
Min. clearance around fixture
. . . . . . . . . . . . . . . . . . . . . . . .0.5 m (19.7 in)
Min. view distance to light aperture
. . . . . . . . . . . . . . . . . . . . . . . .1.0 m (39.4 in)
Connectors
DC power input. . . . . . . . . . . . . . . . . . .Neutrik® locking 3-pin XLR
Battery pack connector. . . . . . . . . . . . .Neutrik® locking 4-pin XLR
DMX / RDM in / thru . . . . . . . . . . . . . . .Neutrik® locking 5-pin XLR
Art-Net connector . . . . . . . . . . . . . . . . . . RJ45 Ethernet connector
USB interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USB-A
Electrical
SkyPanel
Power input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 V =
Max. cable length between PSU and luminaire . . . . . .15 m (49 ft.)
External power supply unit
Power input. . . . . . . . . . . . . . . . . .100 - 240 V ~, 50 / 60 Hz (nom.)
Power output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 V =
Power supply . . . . . . .Auto-sensing switching-mode power supply
Typical power
230 V, 50 Hz. . . . . . . . . . . . . . . . . . . . . . . . 200 W (SkyPanel S30)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 W (SkyPanel S60)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 W (SkyPanel S120)
cos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 0,9
Measurements made at nominal voltage with all LEDs at full intensity.
Allow for a deviation of +/- 10%
Noise emission
Ambient temperature = 35° C (95° F). . . . . . . . . . . . . . . < 20dB(A)
Ambient temperature = 45° C (113° F). . . . . . . . . . . . . . < 30dB(A)
Thermal
Minimum ambient temperature (t
a
). . . . . . . . . . . . . . .-20° C (-4° F)
Maximum ambient temperature (t
a
) . . . . . . . . . . . . . 45° C (113° F)
When using 15 m (49 ft.) header cable . . . . . . . . . . 40° C (104° F)
Cooling . . . . . . . . . . . . . .Silent, temperature-controlled fan cooling
Approvals
RISK GROUP 2 - Moderate Risk
CAUTION! Possibly hazardous optical radiation emitted from
this product. Do not stare in an operating lamp.
