Installation Manual

Page | 27 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

SurroundVideo® Omni SX

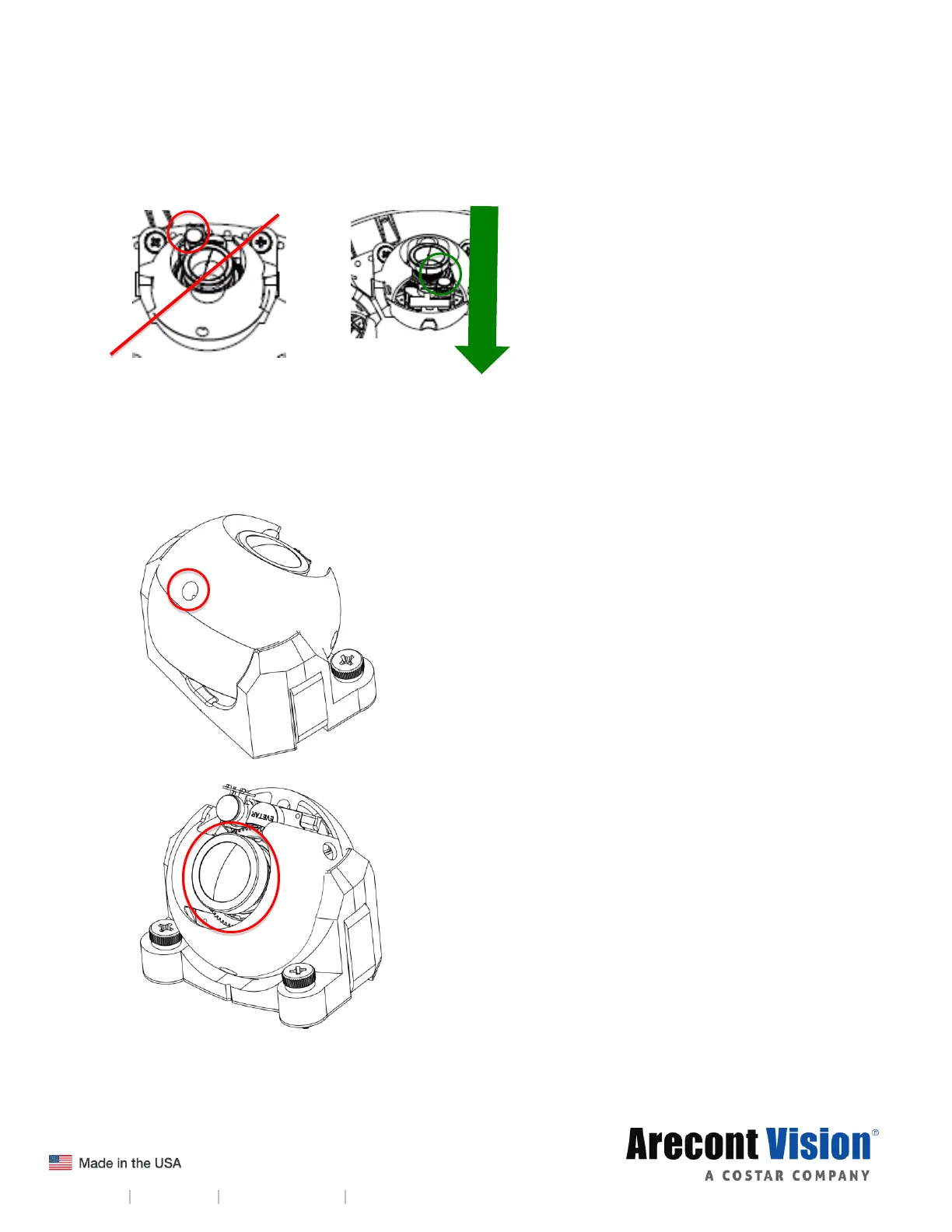

NOTE: Positioning the lens motor to close to the board may cause interference with the magnetic Omni

track. Ensure each lens motor is positioned away from the board.

Incorrect

Correct

Changing the Lens

1. Remove the dome cover by loosening the captive fasteners with the supplied L-key.

2. Loosen the lens lock screws (3) using the supplied flat-head screwdriver (if necessary). Only do

so if the lens seems very tight when turning.

3. Manually unscrew the lens counter clockwise, this may take several seconds.

4. Screw the replacement lens clockwise until you feel some resistance and hit a hard stop.

5. Retighten the lens lock screws (3) if necessary per instructions outlined above. Do not over

torque the screws.
