Installation Manual
Page | 19 support@arecontvision.com
+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com
SurroundVideo® Omni SX

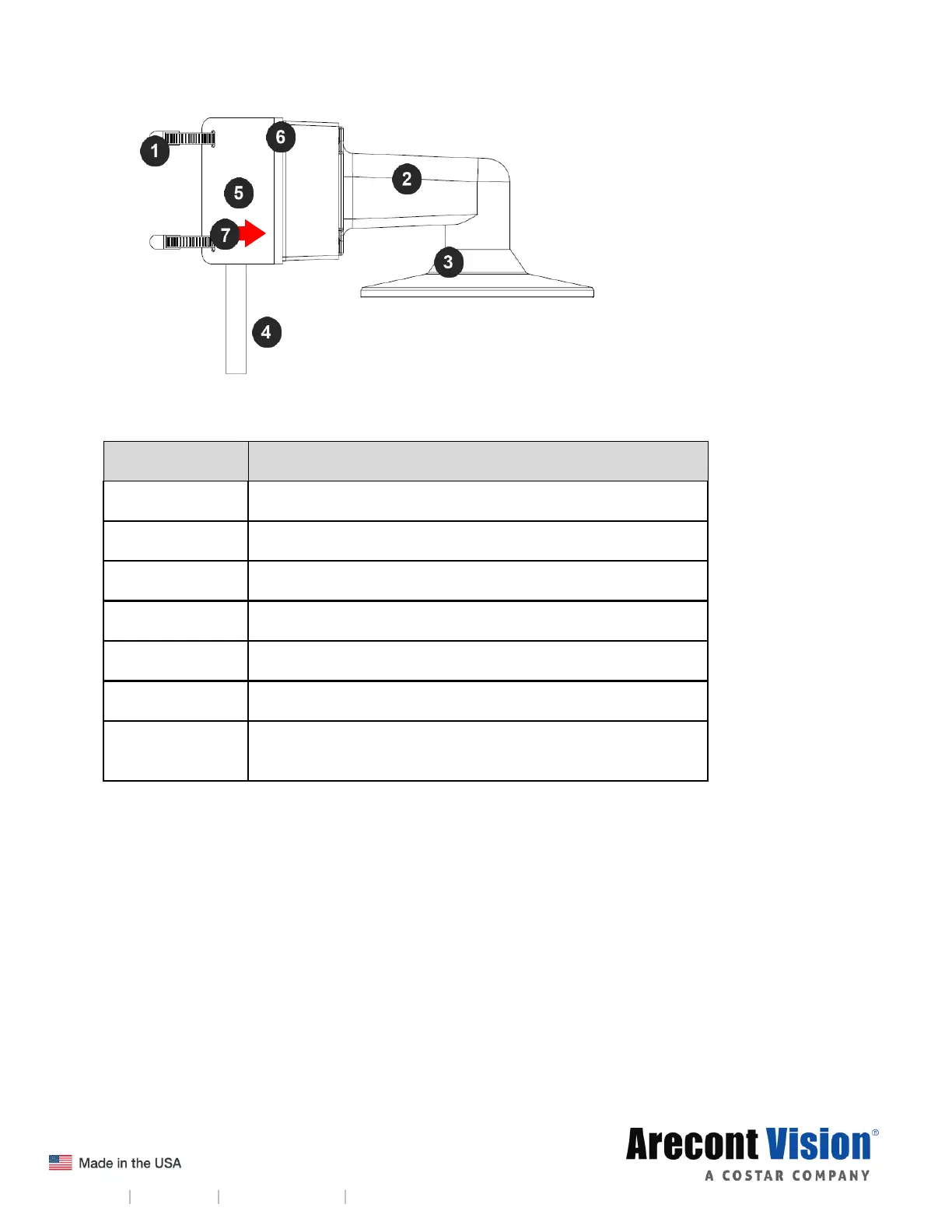

Figure 2: Attach wall mount adapter to pole mount adapter
Reference #
Description
1
Steel straps with compression screws
2
AV-WMJB-W wall mount
3
SO-CAP-W mount cap
4
Conduit
5
AV-PMA-W pole mount
6
AV-JBA-W Junction box
7
Apply Teflon water seal tape to the thread of ¾” NPT pipe
to avoid water leakage
7. Use the supplied two Steel Straps to attach the Pole Mount Adapter to the pole and tighten the
compression screws as shown in Figure 2.
8. Attach the camera with the in-ceiling mount to the Wall Mount Adapter.
9. To configure the camera, reference the camera discovery, set-up and configuration section.
