SurroundVideo® Omni G2

Camera Power Up

This product should be installed by a qualified service technician in accordance with the

National Electrical Code (NEC 800 CEC Section 60) or applicable local code. Make sure

that your installation of wires complies with Electrical Code of the local government where

the camera is installed and no bare wires are exposed.

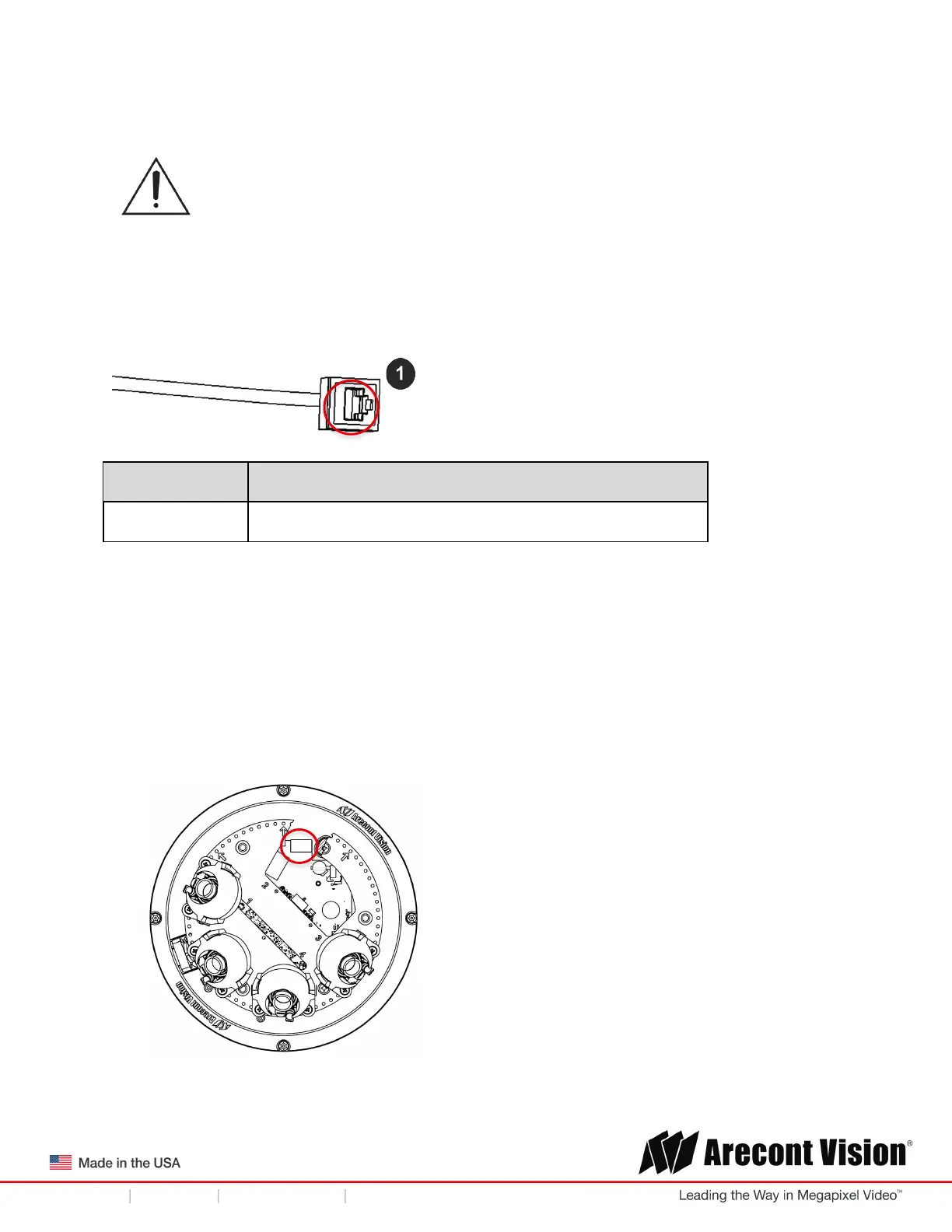

1. Connect the camera to a PoE port on 100Mbps network PoE switch using an Ethernet cable as

shown in the image below.

Reference #

Description

PoE Connector

2. If the camera is powered by an outside power supply, 18~48VDC or 24VAC, connect the power

cable.

Auxiliary Power

If the camera is powered by a separate outside AC or DC power source, run the supplied power cable

through the access hole on the camera housing and connect the power cable to the 4-position

connector on the main camera board. The approximate location of the 4-position connector is circled

below.
