6. Prepare the network cable with the supplied grommet and insertion tool as shown in Figure 3.

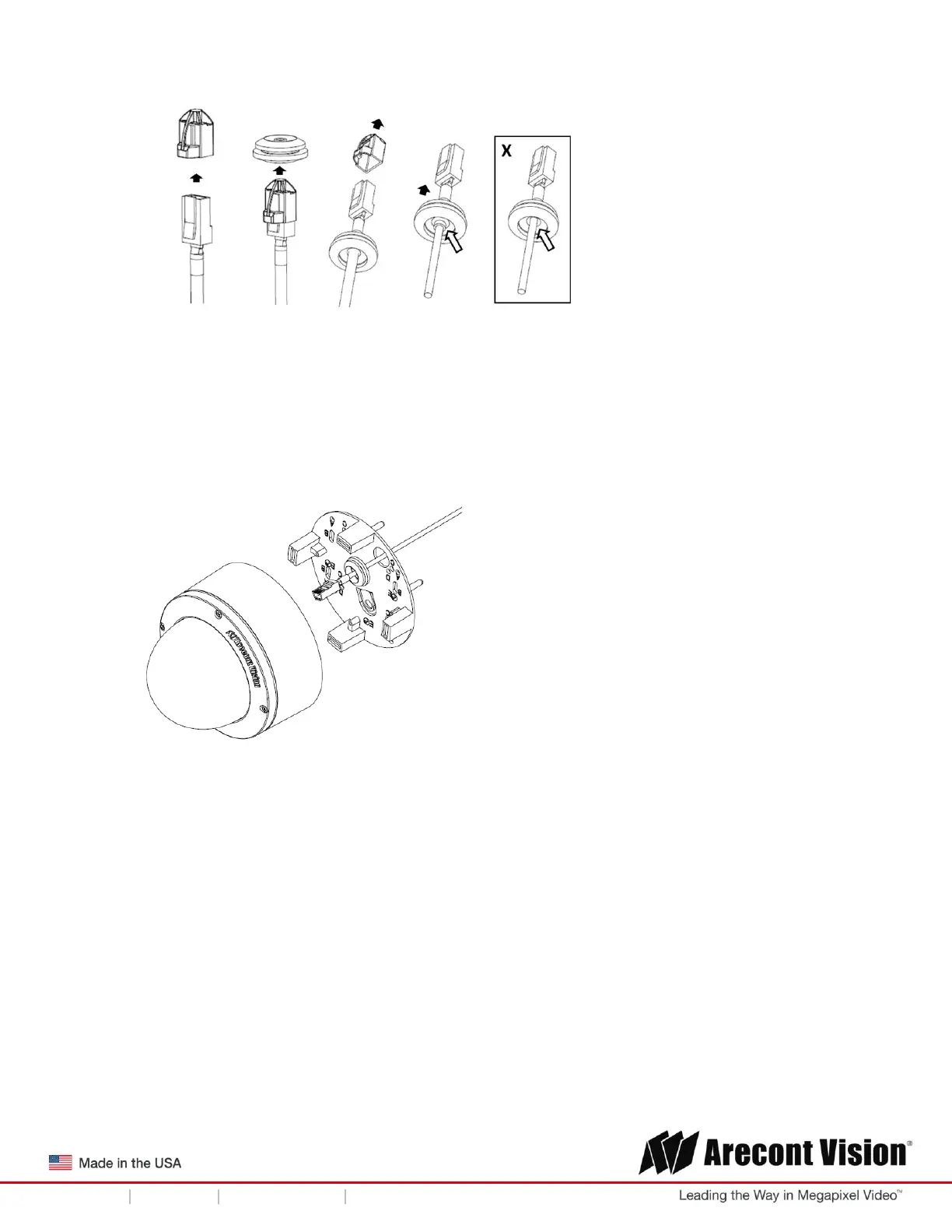

Figure 3

NOTE: When mounting the camera outdoors or in a wet environment, use of supplied grommet

is recommended. Ensure the grommet is properly seated flush with the camera housing.

7. Align the hole on SurroundVideo

G5 Mini camera with the hole on mounting plate, and install

the grommet on camera housing as shown in Figure 4.

Figure 4

NOTE: If using the side connection of the NPT port, you need to install the supplied grommet

without a through hole on the camera housing, and remove the cap covering the side entrance,

otherwise; leave the cap in place. If using the NPT port, always use Teflon tape around the

threads to ensure proper sealing. The conduit fits ¾” NPT standard. Ensure NPT port is facing

downward.
