Installation Manual
Page | 23 support@arecontvision.com
+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com
SurroundVideo
®
G5 Mini
Electrical Box Adapter
The mounting plate is used to attach the camera to a common single, double or square electrical
box.
1. Using the supplied machine screws, match the mounting holes on the mounting plate with the
threaded holes on the electrical box. Ensure every threaded hole is matched with a mounting
hole.
2. Attach the mounting plate to the user supplied electrical box as shown in Figure 1.

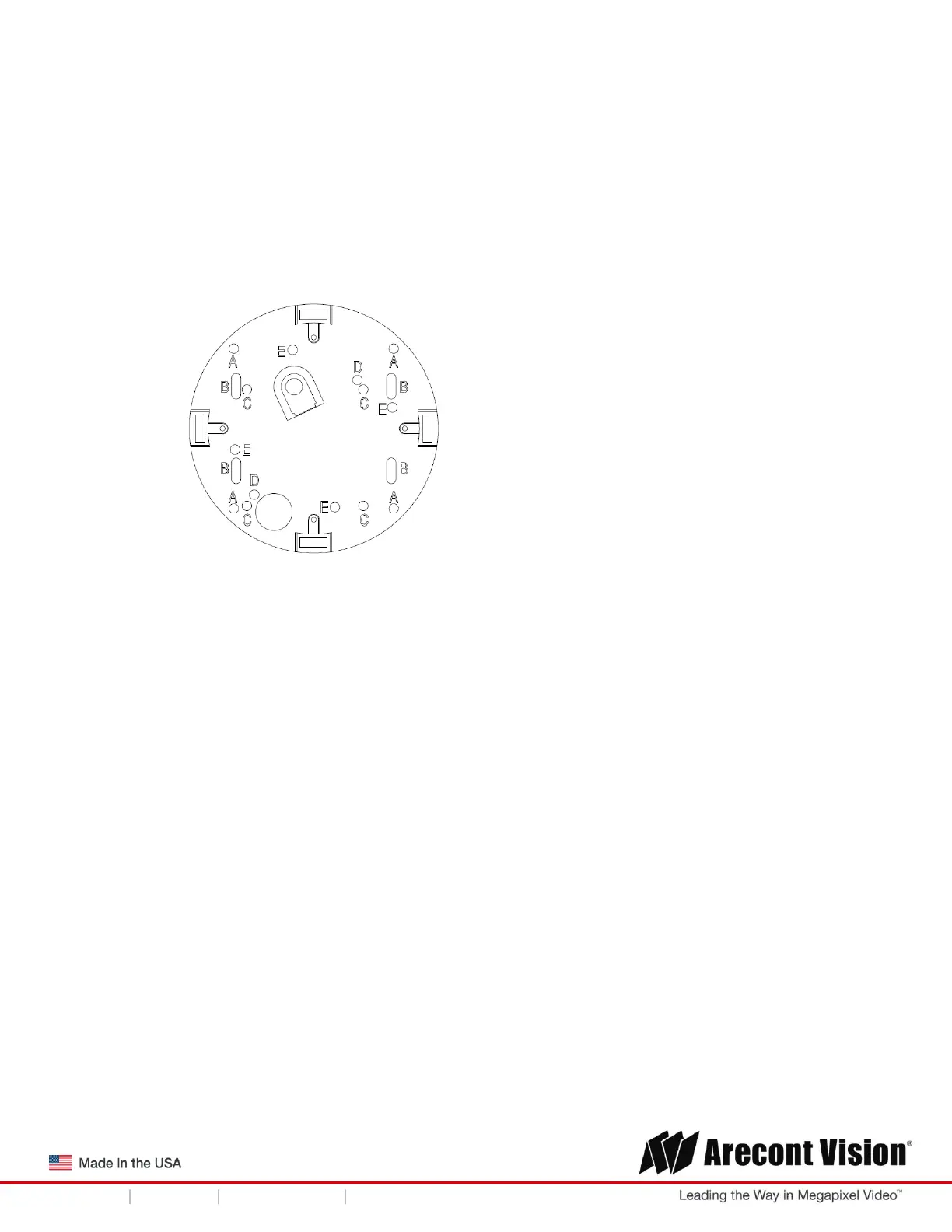

Figure 1: Attach the mounting plate to common electrical box
