!! ! Installation!Manual!

Page | 22 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

SurroundVideo®!G5

Corner Mount

For a corner mount installation, the AV-WMJB wall mount, AV-CRMA corner mount, and SV-CAP

mount cap are required (sold separately). A corner mount should only be attached onto hard corner

surfaces including wood, plastic, metal, and concrete.

1. Using the Mounting template, prepare the mounting provisions for the camera installation.

2. Connect the wall mount cap and wall mount as shown in Figure 13.

3. Attach the AV-JBA (Junction Box Adapter) to the Corner Mount Adapter (Figure 16).

4. Remove the conduit plug on the junction box adapter and connect ¾” NPT conduit to the

junction box adapter (Figure 16).

! !

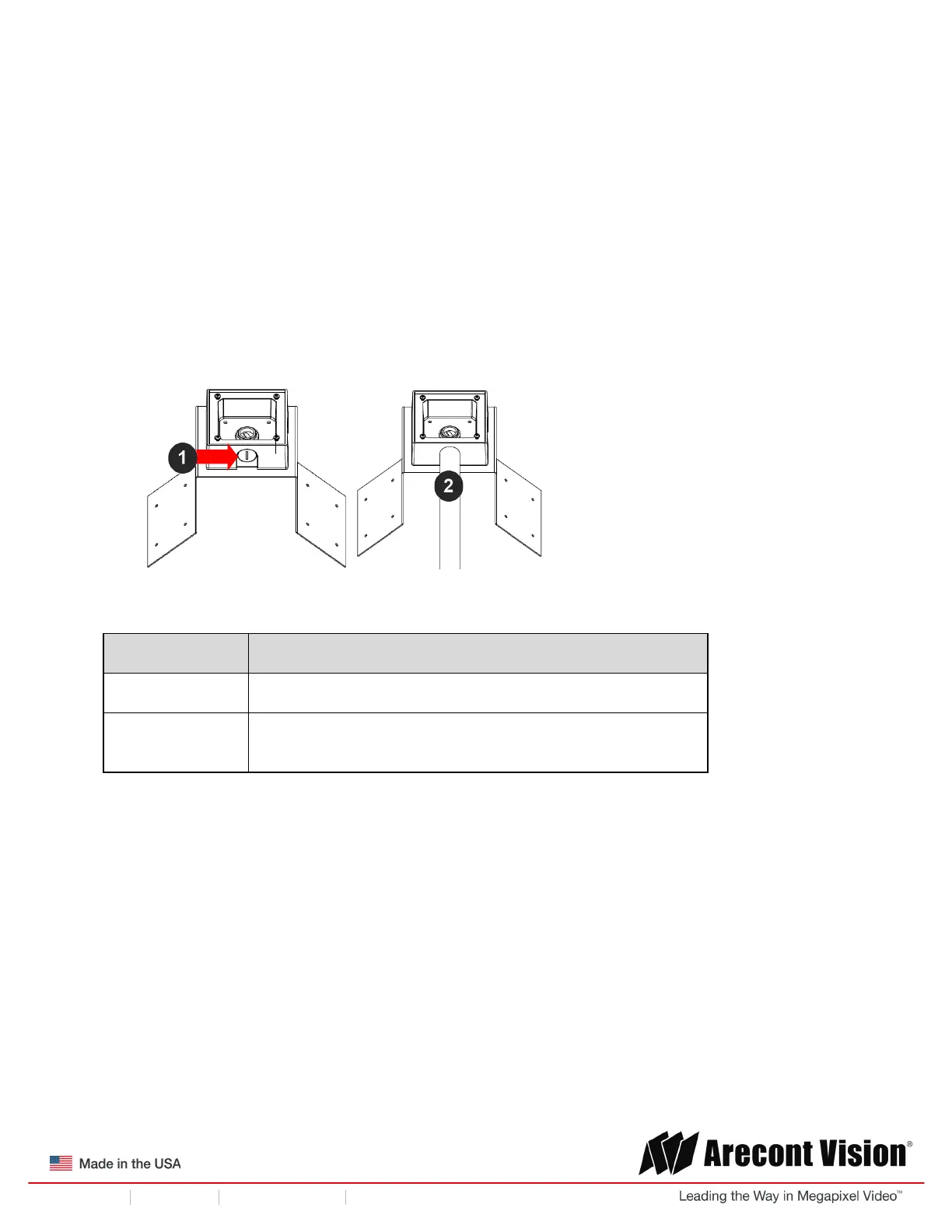

Figure 16: Attach conduit to AV-JBA junction box adapter

Reference #

Description

Remove conduit plug

Connect ¾” NPT conduit to junction box adapter (ensure

use of water seal tape)

NOTE: Use silicon or water pipe seal tape to make sure no water leakage between conduit pipe

and junction box adapter.

5. Run the Ethernet cable and outside power cable (if necessary) through the Junction Box

Adapter and SV-WMJB, Wall Mount Adapter.

6. Attach the Wall Mount Adapter (SV-WMJB) to the Corner Mount Adapter (AV-CRMA) as shown

in Figure 17.
