!! ! Installation!Manual!

Page | 20 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

SurroundVideo®!G5

Pole Mount

For a pole mount installation, the AV-WMJB wall mount, AV-PMA pole mount, and SV-CAP mount cap

are required (sold separately). A pole mount should only be attached onto hard ceilings including wood,

plastic, metal, and concrete.

1. Using the mounting template, prepare the mounting provisions for the camera installation.

2. Connect the wall mount cap and wall mount as shown in Figure 13.

3. Attach the AV-JBA (Junction Box Adapter) to the Pole Mount Adapter (Figure 15).

4. Remove the conduit plug on the junction box adapter and connect ¾” NPT conduit to the

junction box adapter (Figure 15).

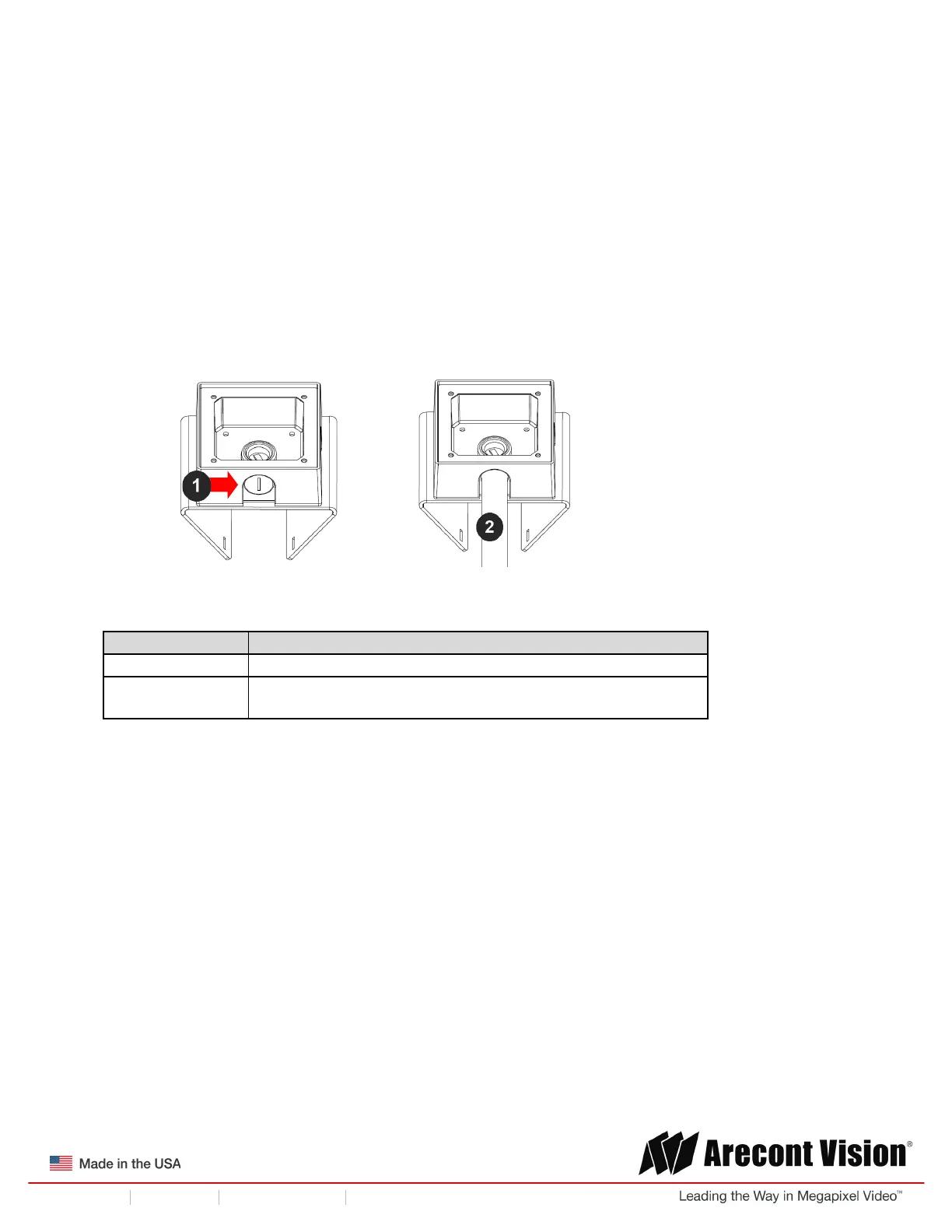

Figure 15: Attach conduit to AV-JBA junction box adapter

Reference #

Description

Remove conduit plug

Connect ¾” NPT conduit to junction box adapter (ensure

use of water seal tape)

NOTE: Use silicon or water pipe seal tape to make sure no water leakage between conduit pipe

and junction box adapter.

5. Run the Ethernet cable and outside power cable (if necessary) through the Junction Box

Adapter and SV-WMJB, Wall Mount Adapter.

6. Attach the Wall Mount Adapter (SV-WMJB) to the Pole Mount Adapter (AV-PMA) as shown in

Figure 16.
