MicroDome®!G2

Optional: Connecting Digital I/O

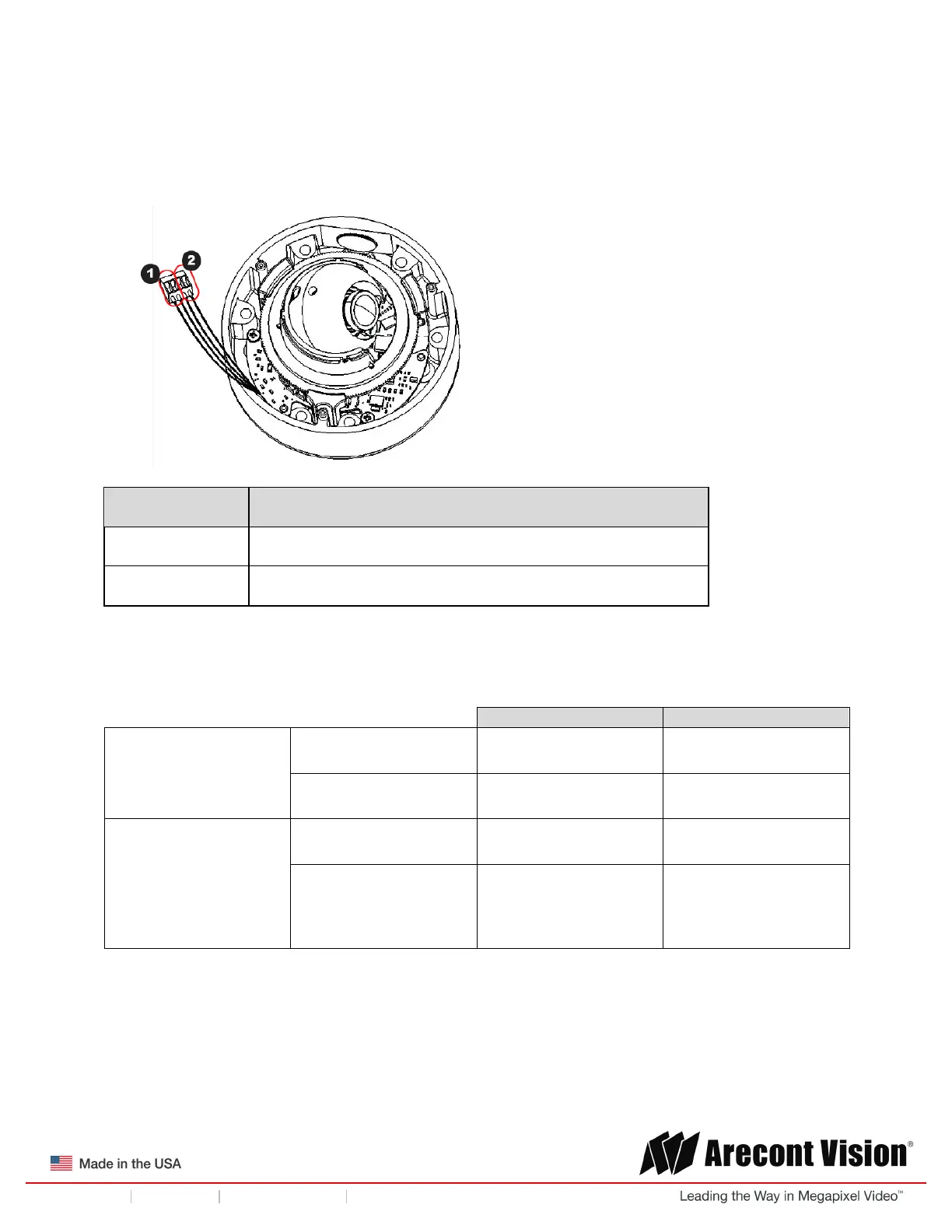

To use digital I/O, connect digital I/O with pigtail cable connector as shown below.

Reference #

Description

Input (White + / Black -)

Output (Orange + / Yellow -)

NOTE: MicroDome

G2 supports digital input and digital output. See Table 1 for electrical

characteristics.

Electrical Characteristics

MIN

MAX

Input Voltage (V)

(Measured between +

and – terminals)

2.9

6.3

OFF!

1.3!

Output Current (mA)

(Measured between +

and – terminals)

Applied Voltage

Range: 0-80V

50!

OFF!

0.1!

Table&1&

NOTE: The digital input is electrically isolated from the rest of the camera’s electrical circuitry via

general-purpose photo couplers. The input is additionally protected with a serial 250 Ohm resistor, and

a de-bouncing circuit. Duration of any input signal should be at least 5 ms to comply with the

requirements of the de-bouncing circuit.
