Drop Ceiling Mount Adapter Plate Installation

Repeat step 1-5 of Surface Installation (See Pic. 1-3)

6. Use template and cable location to create mounting provisions for the Plate. Use 3/16” drill bits for four

mounting holes in Drop Ceiling Panel.

7. Using enclosed #6-32 screws attach enclosed Drop Ceiling Mount Plate Adapter and Adapter Plate

onto opposite sides of Drop Ceiling Panel, so the panel is “sandwiched” between Adapter Plate and

Drop Ceiling Mount Plate Adapter. Use 4 slots “B” in Adapter Plate.

8. Re-attach camera to adapter plate (Reverse step 4 and 5)

9. Re-attach cover to camera (Reverse step 2 and 3)

10. Re-install the Drop Ceiling Panel and plug Customer Ethernet cable into female end of Camera

Ethernet cable.

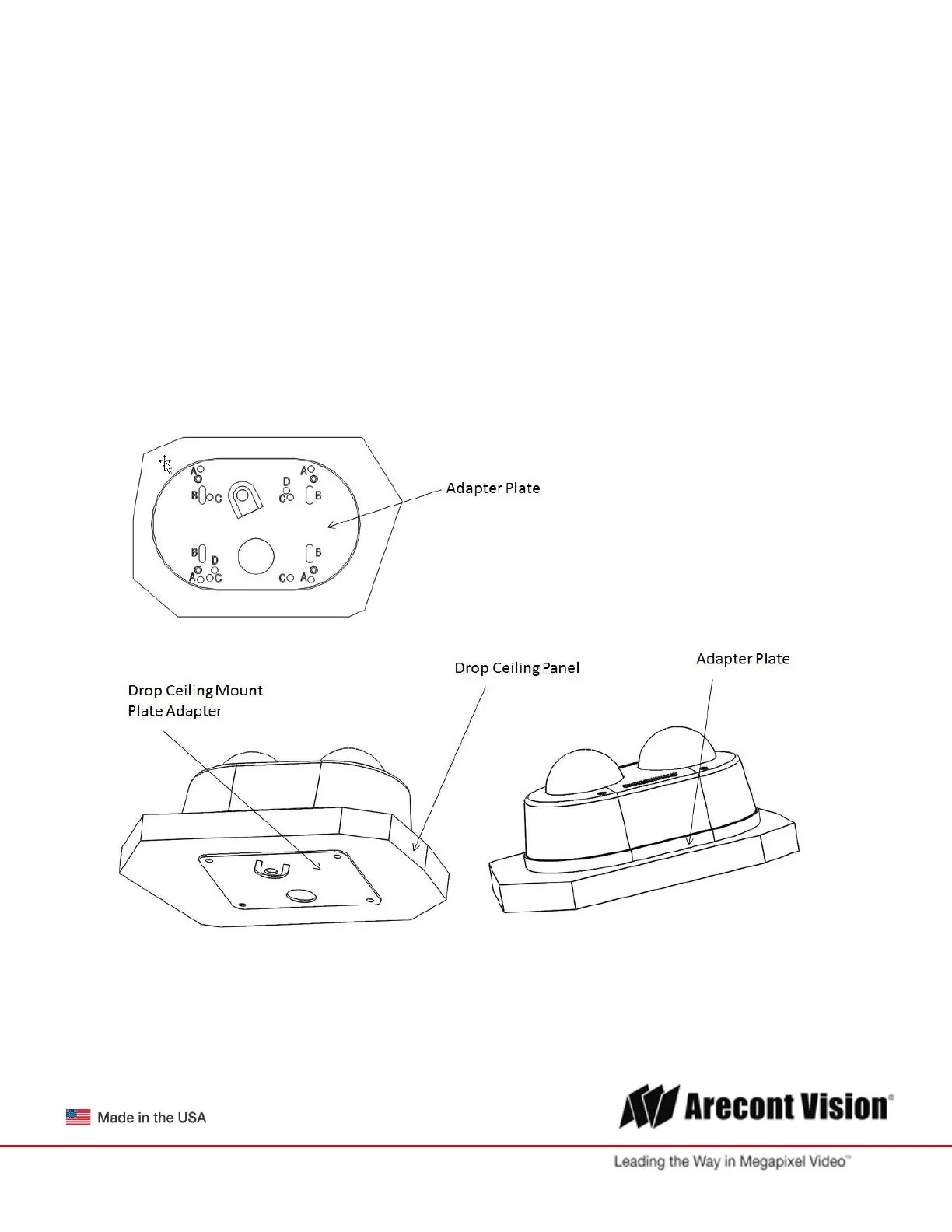

PIC. 5
