Microdome Duo® Installation Manual
Page | 23 support@arecontvision.com
+1.818.937.0700 | 877.CAMERA.8 | www.arecontvision.com | avsales@arecontvision.com
Use of Auxiliary Power
1. If the camera is powered by a separate outside AC or DC power source, run the wire (not supplied)
through the grommet and connect the power cable to the 4-position connector on the Main Board. (see
Page 17 and 18 for illustration and detailed instructions)
2. The Poke-Home connector requires 18 AWG to 24 AWG wire (solid or stranded).

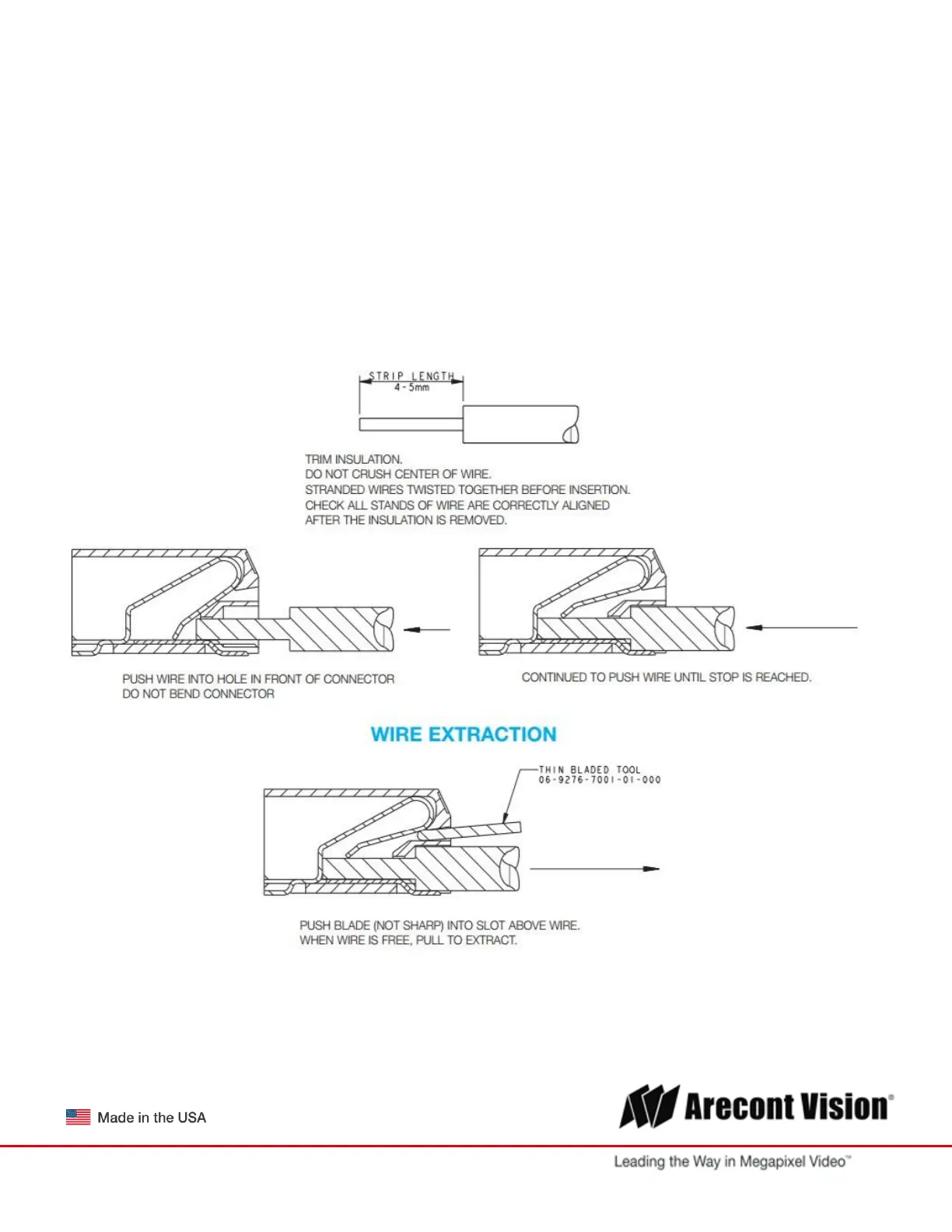

3. Please refer to picture below for more information on cable preparation and use
NOTE: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all
local codes and authorities having jurisdiction. Wiring should be UL Listed and/or Recognized wire suitable for
the application.
