Arecont Vision MegaView

®

2 Installation Manual

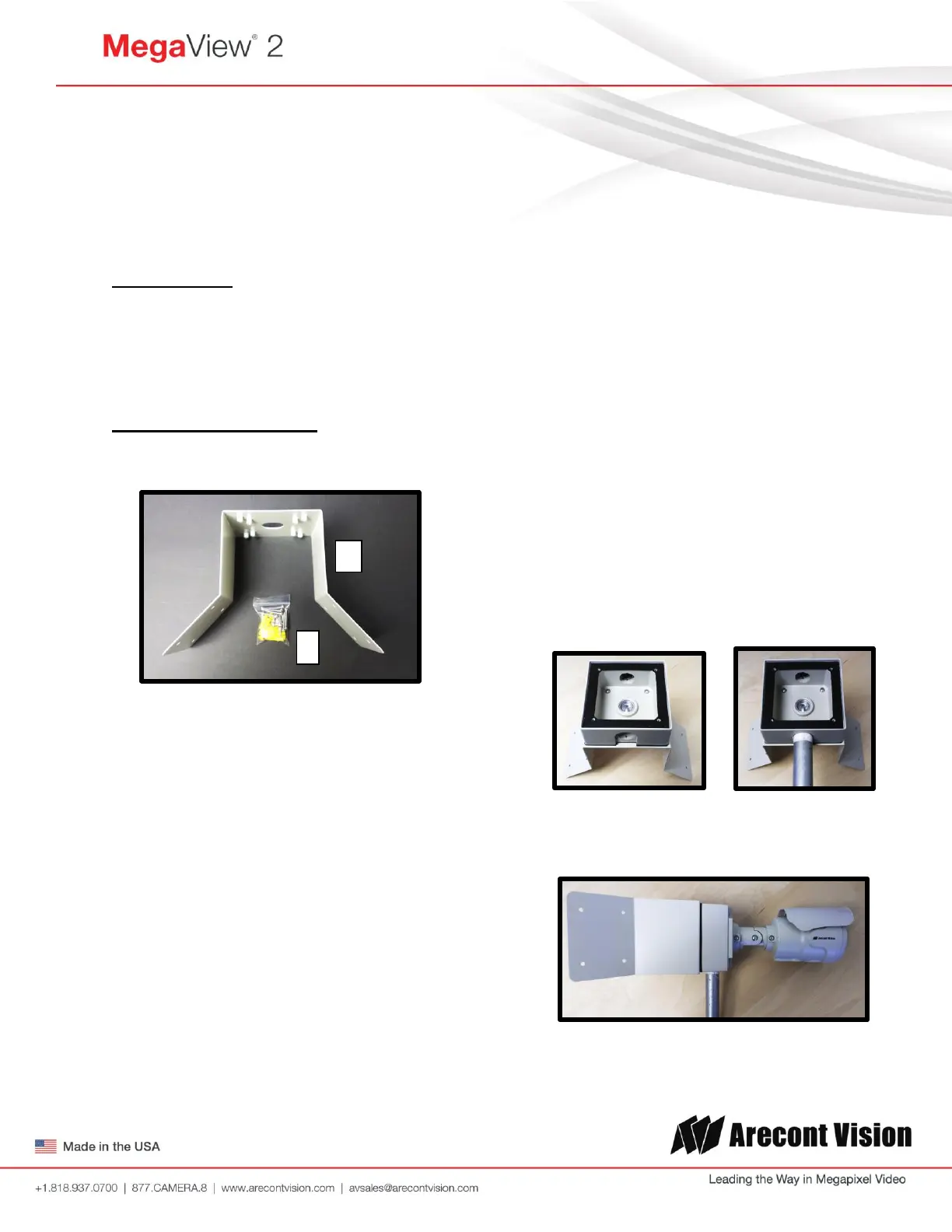

Corner Mount Adapter (AV-CRMA) Installation Instructions

(Sold Separately)

Inside the box:

A. Corner Mount Adapter

B. Pack of four (4) machine screws (#8-32

5/8”), twelve (12) screws, twelve (12)

anchors, and twelve (12) washers

Not included but needed:

 ¾” NPT Conduit

Image 21

1. Remove Corner Mount Adapter and

hardware from the box.

2. Attach provided Junction Box Adapter

(Image 1-B) to Corner Mount Adapter

as shown in Image 22.

3. Remove the conduit plug on Junction

box adapter and connect ¾” NPT

Conduit to Junction Box Adapter shown

in Image 22-1.

NOTE: Use silicon or water pipe seal tape

to make sure no water leakage between

conduit pipe and junction box adapter.

4. Run Ethernet Cable and other cables (if

necessary) through the Junction Box

Adapter and connect to Megaview® 2 pigtail

cable.

5. Attach MegaView

®

2 bracket to Corner

Mount Adapter as shown in Image 23.

6. Using the screws provided (or other

hardware) to attach the Corner Mount

Adapter to an exterior 90° corner wall.

7. To adjust MegaView

®

2 bracket, please

reference “Mounting the Camera”, if

needed.

Image 22 Image 22-1

Image 23

A

B

Wall

Mount

Adapter

p
