MegaDome

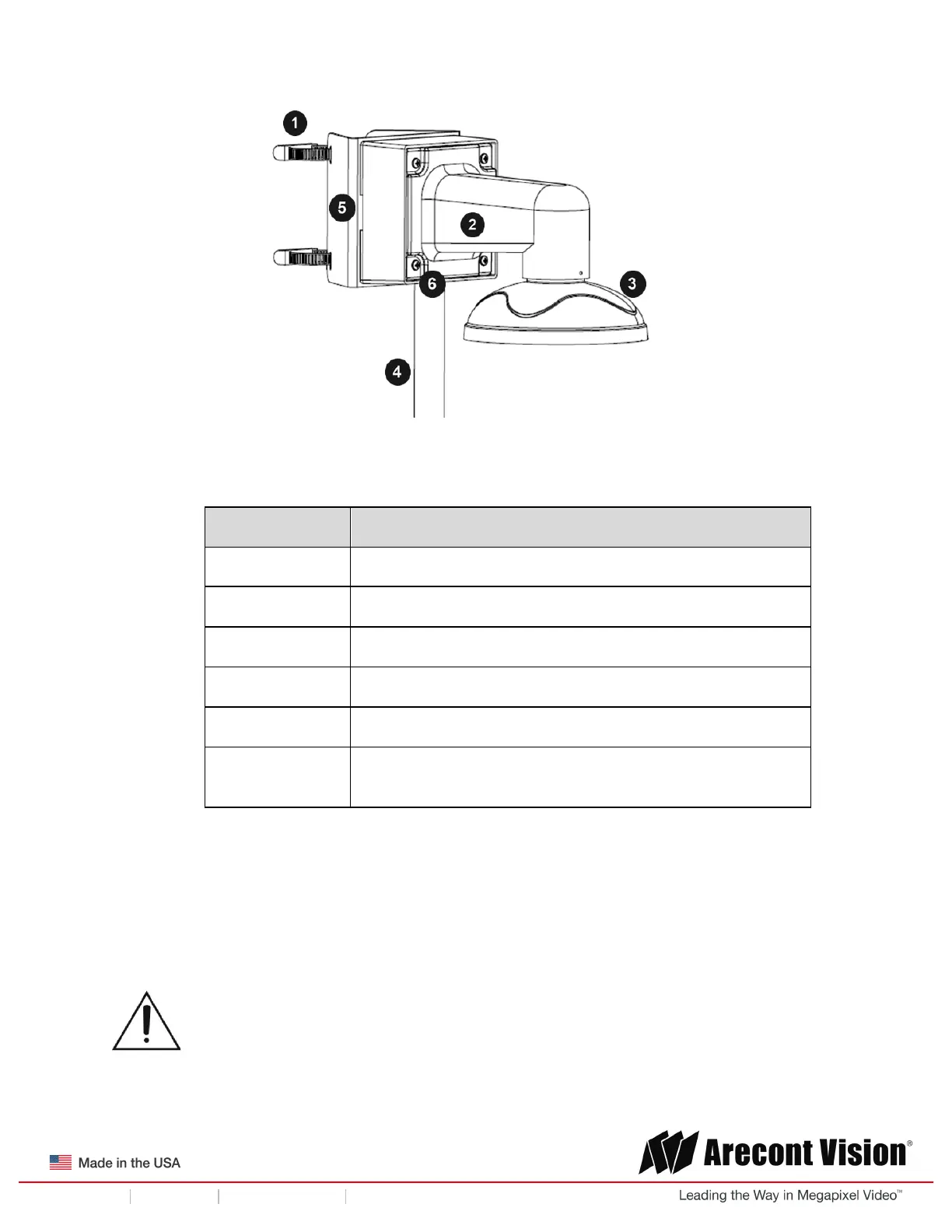

Figure 2: Attach wall mount adapter to pole mount adapter

Reference #

Description

Steel straps with compression screws

AV-WMJB wall mount

MD-CAP mount cap

Conduit

AV-PMA pole mount

Apply Teflon water seal tape to the thread of ¾” NPT

pipe to avoid water leakage

7. Use the supplied two Steel Straps to attach the Pole Mount Adapter to the pole and tighten the

compression screws as shown in Figure 2.

8. To attach the camera to the Wall Mount Adapter (AV-WMJB), reference the Installation and Wall

Mount section.

9. To configure the camera, reference the camera discovery, set-up and configuration section.

CAUTION! The captive screws must be used to properly secure the dome cover and

camera housing. Failure to use the captive fastener may result in serious injury. When

mounting the dome cover to the camera housing, ensure that the gasket is properly seated

and not folded. Failure to do so may result in water and dust ingress. Water damage from

improper installation is not covered by the warranty!
