Installation Manual

Page | 24 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaDome

Adjusting the Pan, Tilt and Focus

1. Remove the dome cover by loosening the captive fasteners with the supplied security L-key

screwdriver.

2. Power on the camera to adjust the pan, tilt and focus.

3. Remove the shroud from the camera gimbal, and then loose two Philips head screws and loose

one set-screw with the supplied set screw L-key, and then adjust the pan and tilt to obtain the

desired field of view as shown in Figure 1. NOTE: Do not remove the screws!

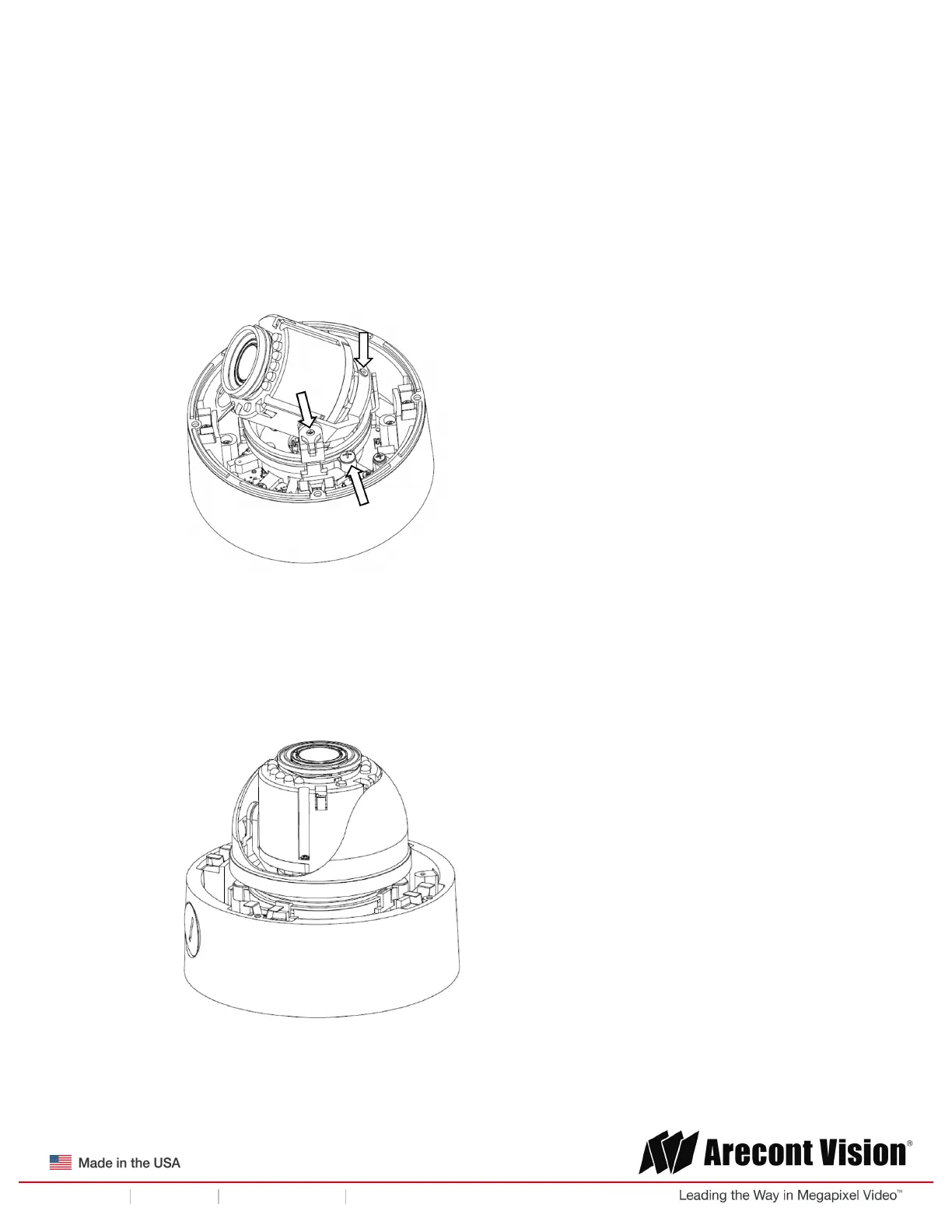

Figure 1: Loose camera head to adjust the field of view

4. Lock the camera head in place by fastening securely two Philips head screws and one set-

screw back. NOTE: Do not over torque the screws.

5. Install the shroud back on the camera gimbal as shown in Figure 2.

Figure 2
