ConteraIP

Bullet EX Megapixel Camera

ConteraIP

Bullet EX | Installation Manual

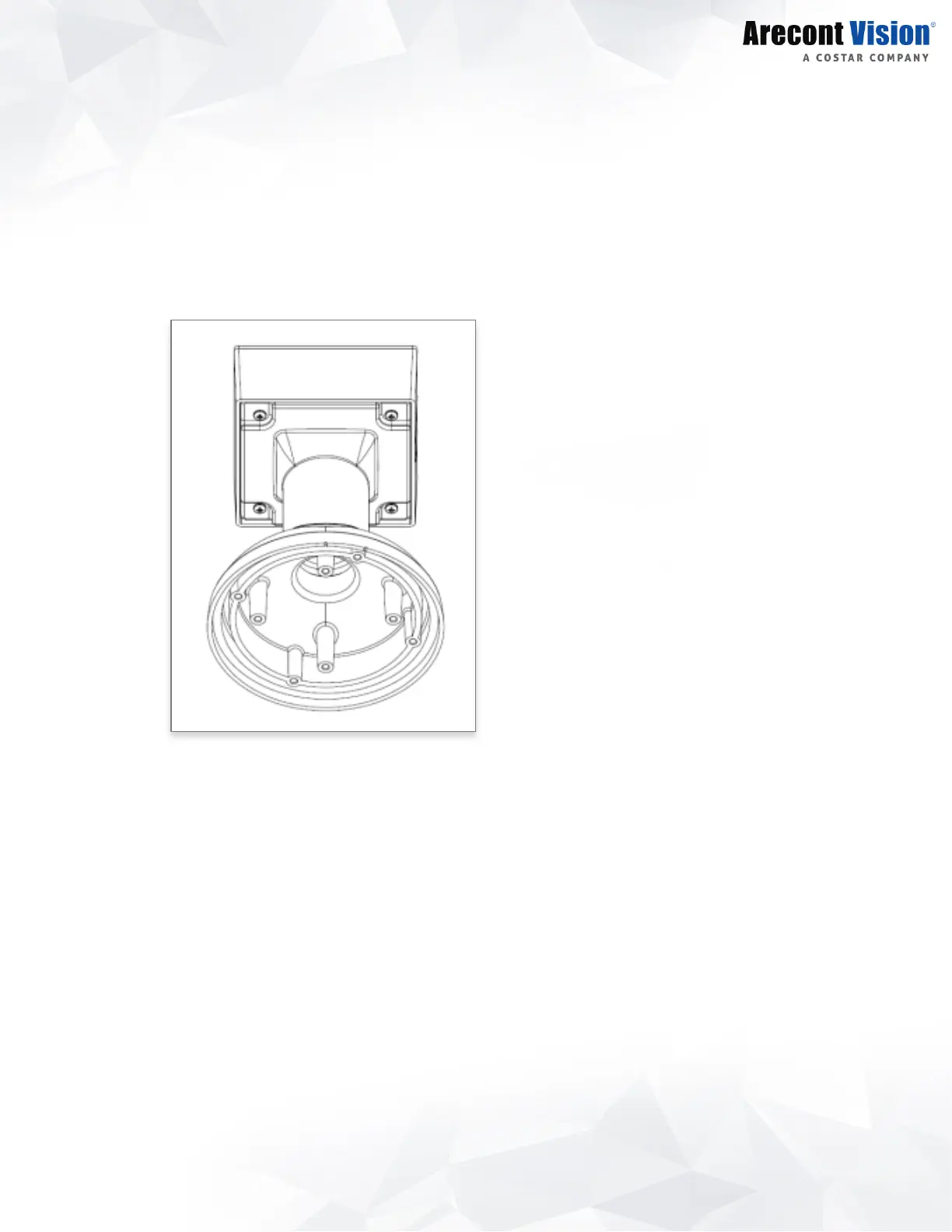

Pendant Mount

For a proper pendant mount installation, the AV-PMJB pendant mount and MD-CAP-W mounting cap are

required (sold separately). A pendant mount should only be attached onto hard ceilings including wood,

plastic, metal, and concrete.

1. Using the Mounting template, prepare the mounting provisions for the camera installation.

2. Connect the cap, pendant pole and mount together.

NOTE: The thread size for Top shield, pendant pole and mount is 1.5” NPT.

3. Attach the pendant mount to the ceiling using the four wood screws provided or any optional

hardware suitable for the mounting surface.

4. Run the Ethernet Cable and outside power cable (if necessary) through the supplied rubber

gasket and then through the wall mount. Ensure the gasket is seated properly.
