Omni LX RS Installation Manual

Corner Mount

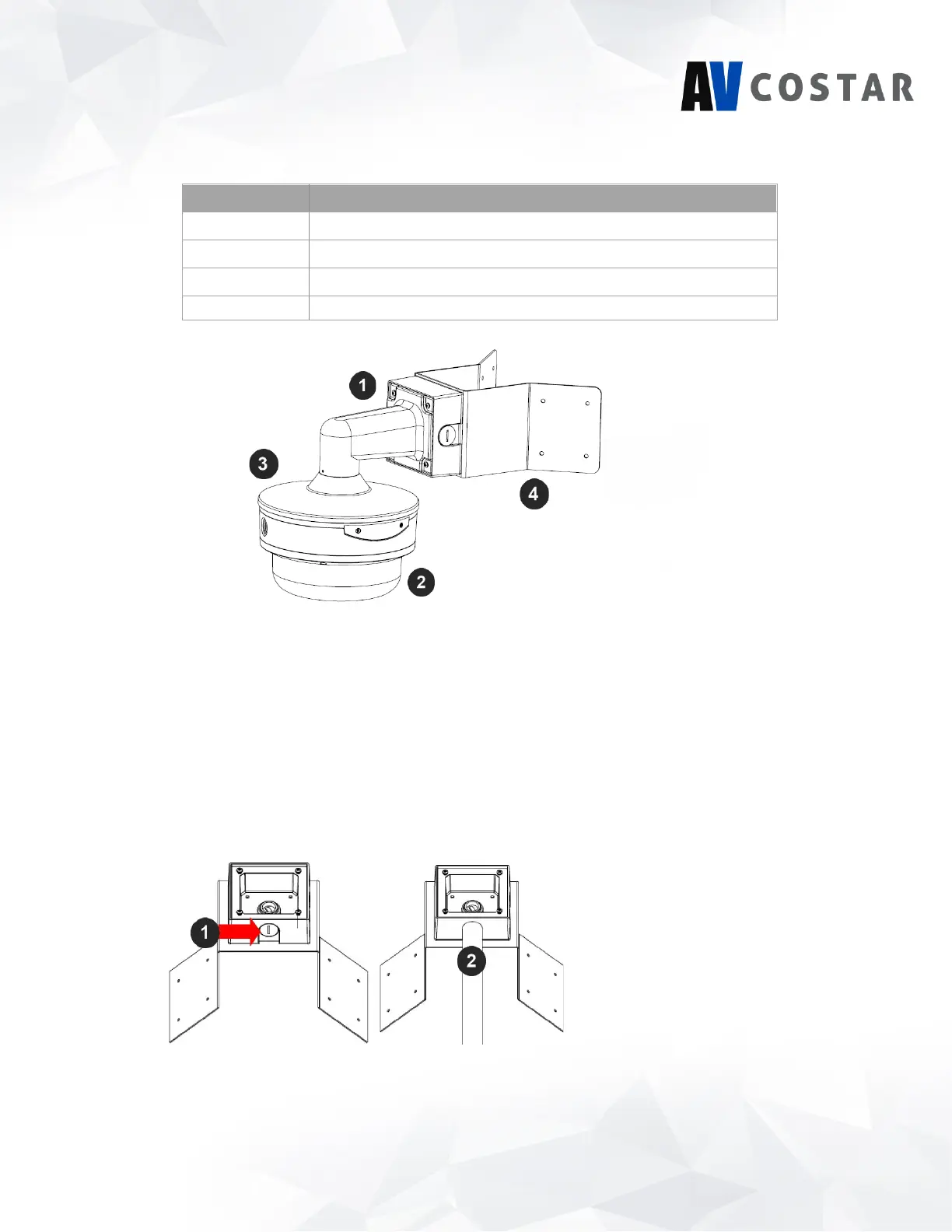

Reference # Required Corner Mount Components

1 Wall mount (AV-WMJB-W) with an integrated junction box

ConteraIP

Omni LX RS camera

CORS-CAP-W mounting cap

4 AV-CRMA-W corner mount adapter

For a corner mount installation, the AV-WMJB-W wall mount, AV-CRMA-W corner mount, and

CORS-CAP-W mount cap are required (sold separately).

1. Use the mounting template and prepare the mounting provisions.

2. Connect the wall mount and the wall mount cap together.

3. Attach the AV-JBA-W Junction Box Adapter to the Corner Mount Adapter as shown below.

4. Remove the conduit plug from the junction box adapter, then connect ¾” NPT conduit to the

junction box adapter as shown above.
