Page 9 of 54

Surface Mount (IR-S Model)

1. Determine a secure location to mount the camera.

2. Remove the dome cover from the camera by unscrewing the three captive fasteners.

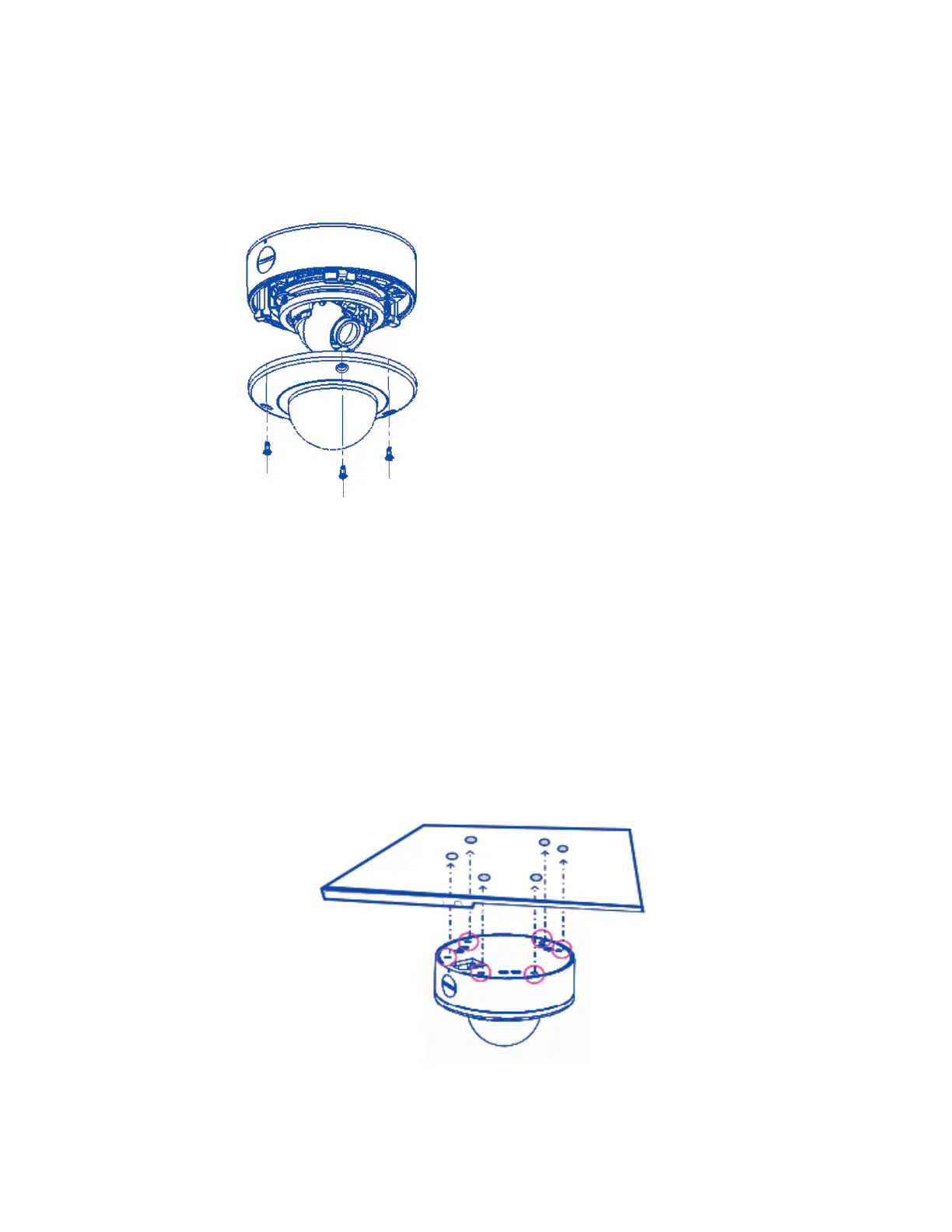

Figure 1: Remove dome cover

3. The camera can be mounted two ways: surface mount or via a junction box to a wall or

ceiling.

Choose the best method for your installation below:

a. Surface Mount: use the supplied template to mark three desired holes (there

are six holes to choose from; see Figure 3). Then drill the holes with a diameter of 8

mm (0.3 in) and insert the supplied anchors into the holes. Attach the camera

module and supplied

gasket securely using the supplied screws.

Figure 3: Drill three of the six holes provided.
