Pole Mount

For proper installation the AV-WMJB-W, AV-PMA-W and CF-CAP-W are required (sold

separately). The pole mount should be mounted to hard surfaces only (i.e. wood, metal,

and concrete).

1. Using the provided template, anchors and screws to prepare the installation surface.

2. Connect the wall mount cap and wall mount.

3. Attach the Junction Box Adapter to the Pole Mount Adapter.

4. Remove the conduit plug on the junction box adapter and connect ¾” NPT conduit to

the junction box adapter.

5. Run the Ethernet cable and outside power cable (if necessary) through the Junction

Box Adapter. Ensure the gasket is seated properly.

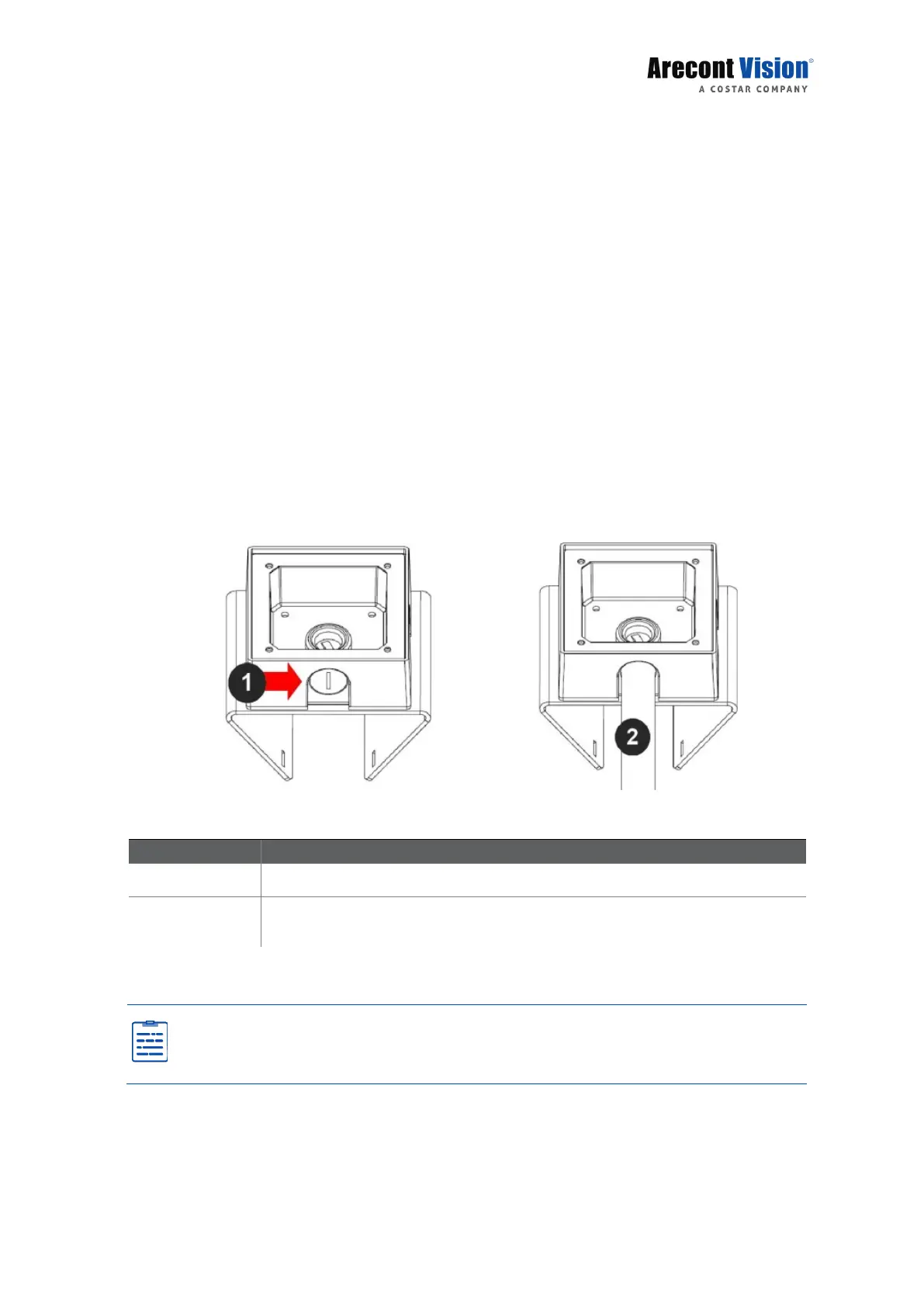

Reference #

Description

1 Remove conduit plug

2

Connect ¾” NPT conduit to junction box adapter (ensure use of water

seal tape).

NOTE!

Use silicon and / or thread seal tape between the conduit pipe and junction

box adapter.
