9

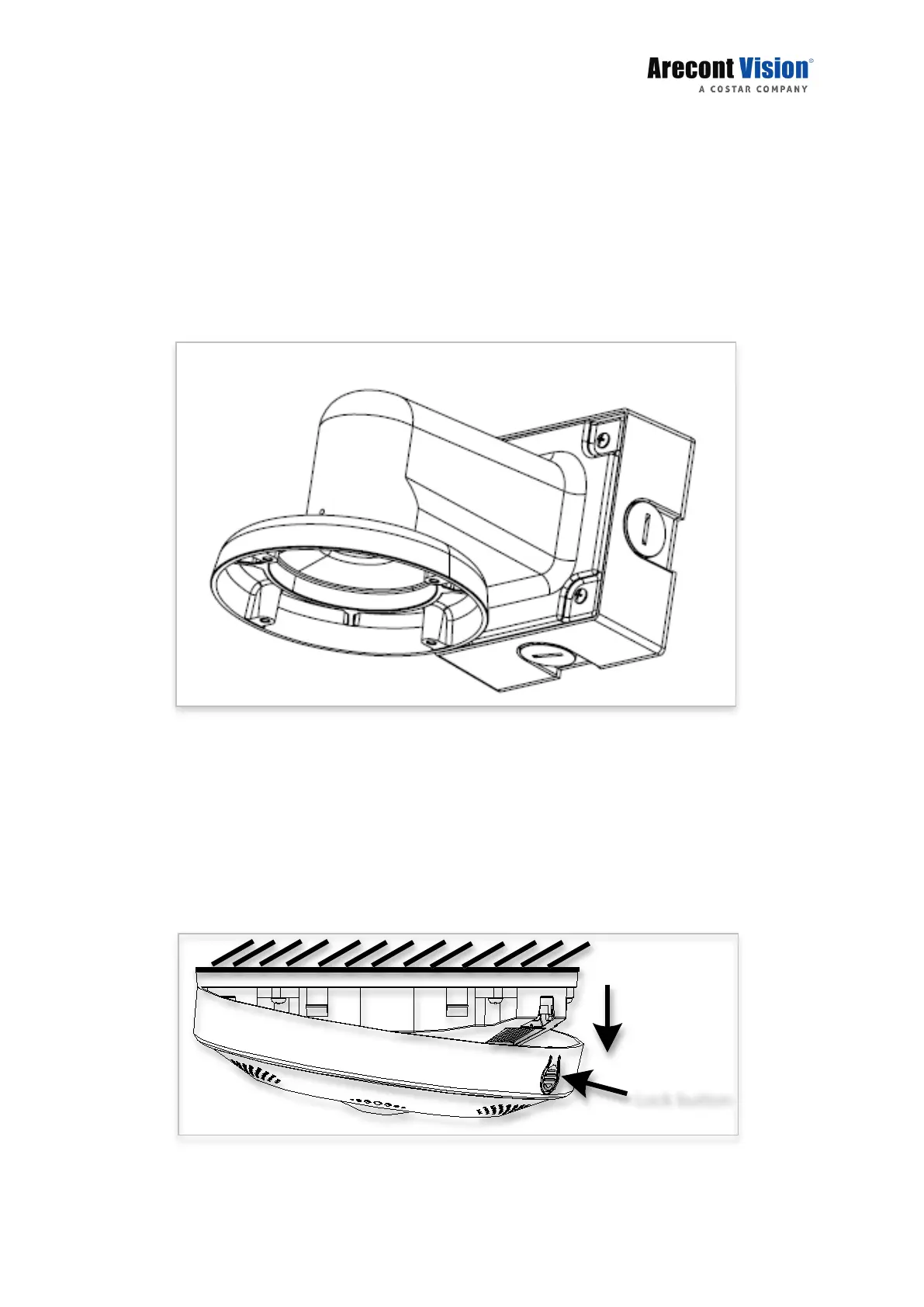

Wall Mount

For proper installation the AV-WMJB-W and CF-CAP-W are required (sold separately). The

wall mount should be mounted to hard surfaces only (i.e. wood, metal, and concrete).

1. Use the provided template, anchors and screws to prepare the installation surface.

2. Thread the CF-CAP-W onto the AV-WMJB-W.

NOTE: The thread size for Top shield, pendant pole and mount is 1.5” NPT.

3. Attach the wall mount to the surface using the provided screws or use suitable

hardware for the mounting surface.

4. Run all necessary cables through the wall mount. Ensure the gasket is sealed

properly.

5. Press the lock button and remove the dome cover as shown in the figure below.

Lock button
