Page 5 of 45
Installation
Surface Mounting
1. Determine a secure location to mount the camera.

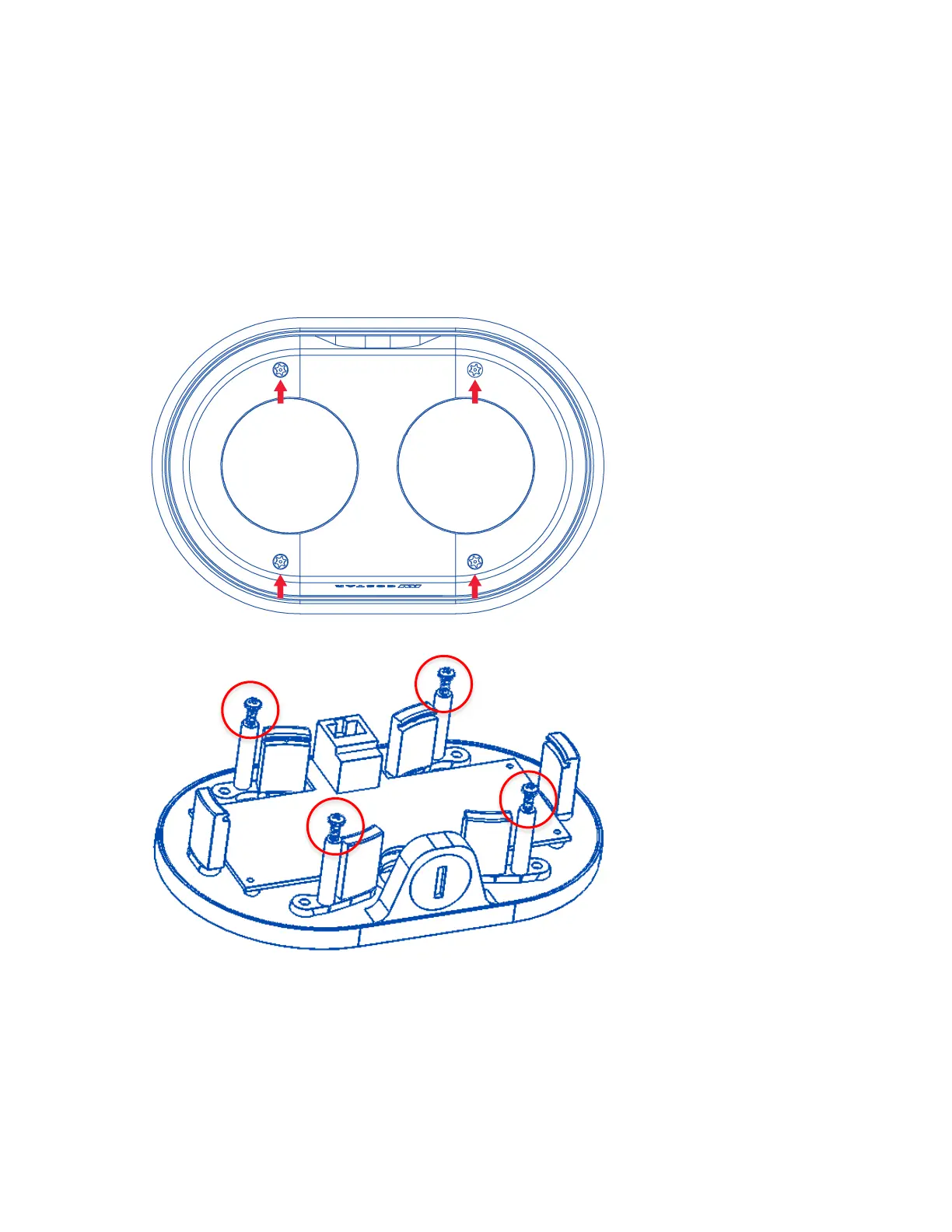

2. Use the supplied security L-key, to loosen the four (4) screws which secure the cover.
3. Remove the cover. Do not remove screws from the dome cover.
4. Use Phillips screwdriver to loosen the four (4) screws securing the camera to adapter plate.
(some parts removed for clarity)
5. Separate Camera from Adapter Plate. Do not remove the screws.
6. Use Mounting template to create mounting provisions for the camera.
7. Mount Adapter Plate by installing mounting hardware in 4 slots “B” in adapter plate
