6
AQUASURE HARMONY SERIES
Treated Water Out
Brine
Tank
Carbon
Filter
Pre-Filter
To Outside Water
Pressure Tank Well Head
120
Volt
Backwash Line
To Drain
Water
Softener
Water
Softener
Treated Water Out
Brine
Tank
Carbon
Filter
Pre-Filter
To Outside Water
Pressure Tank
Well Head
120
Volt
Backwash Line
To Drain

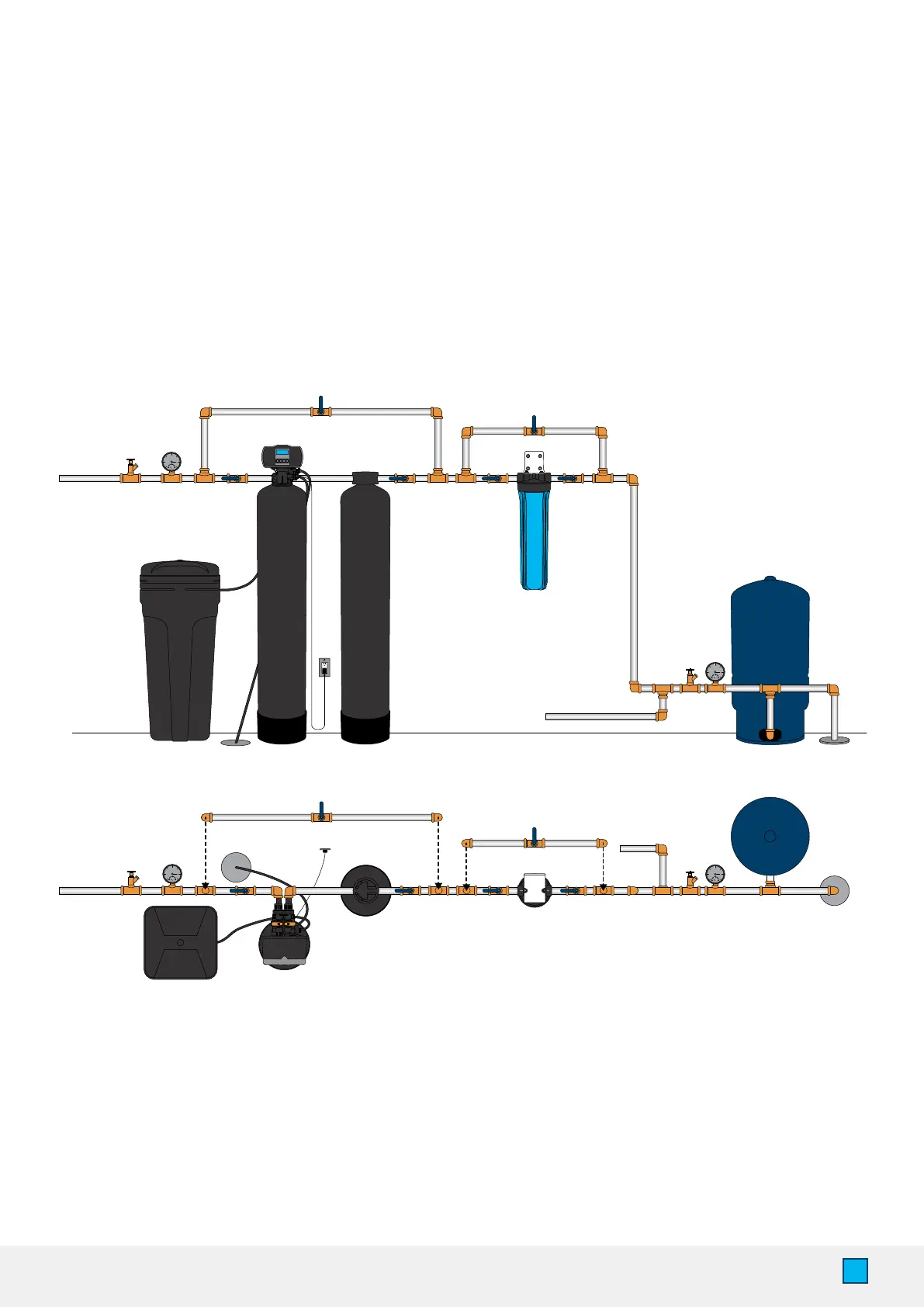

III. Installation Diagram
The following diagram displays how the water softener should be installed with a well or city water
setup. If you have city water, your plumbing arrangement will vary but the installation principles are
the same. This is an example of how a pre-lter, media tank and water softener ow in line together.
If you do not have a media tank/ carbon lter with your purchase, then exclude it from your
installation. A loop installation with shut-off valves is advised as seen below.
