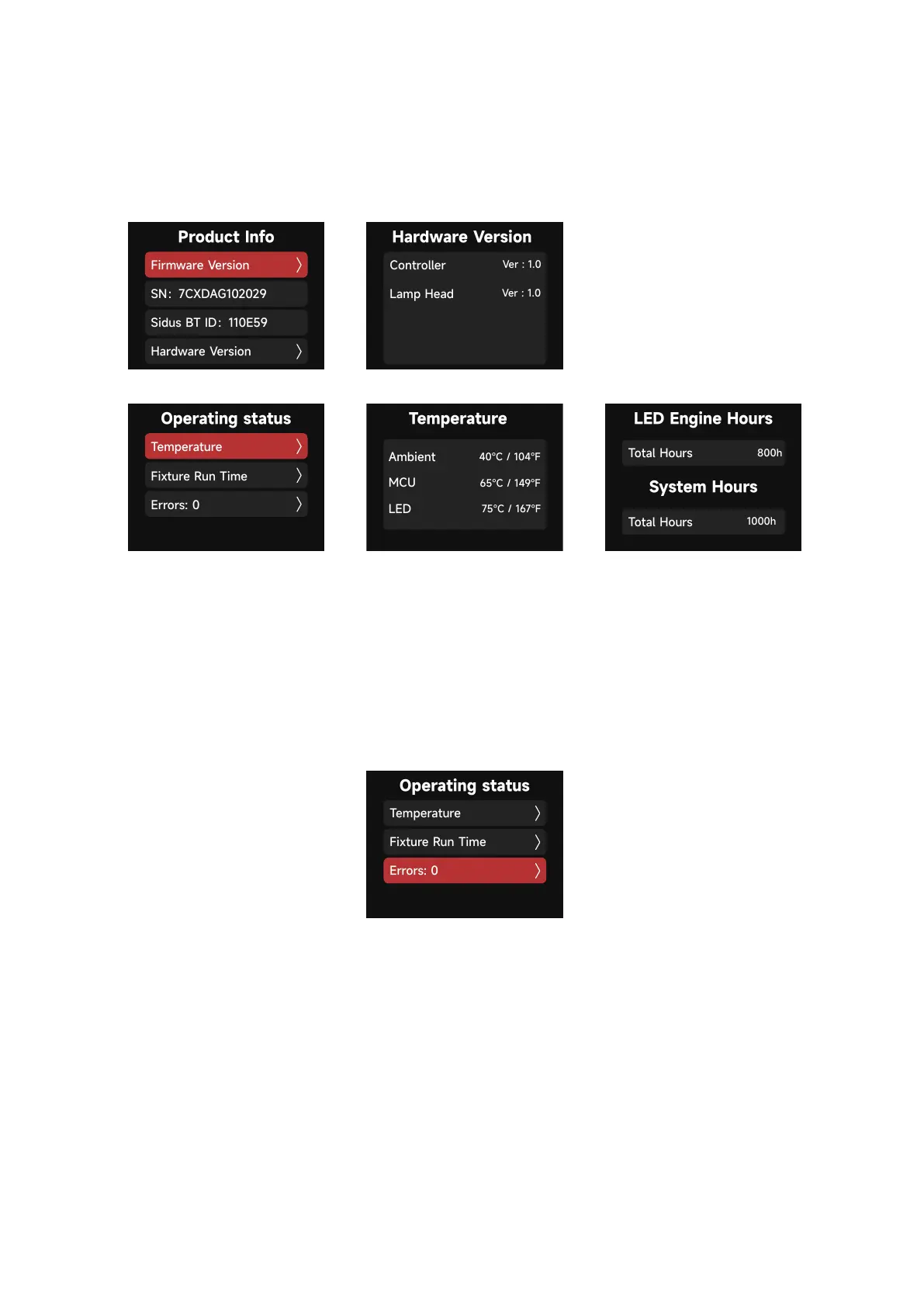

4) Hardware Version: display the hardware versions of the Control Box and attached Lamp
Head.
5) Operating status: display the Temperature, Control Box and attached Lamp Head Run
Time, and any Error Code.
Errors are divided into two categories:
a. Serious error: When a serious error occurs, the fixture cannot be used and will be locked
for protection. Please respond to the error according to the fault prompt.
b. General error: When a general error occurs, the fixture is still available for use;
enter the Product Info interface to view the error details.
Upgrade the firmware by inserting a USB flash drive with the latest firmware on its
root drive into the USB-A port of the Control Box . The current firmware version is also listed
in this interface. NOTE: The fixture can also be updated via Sidus Link or Sidus Link Pro with
Sidus BT turned ON and a Wi-Fi internet connection on your Sidus Link device. Remember
to update both the Control Box and the connected Lamp Head with any new firmware.
2.4.11 Firmware Update
28
Product Info
Hardware Version
Firmware Version
SN：7CXDAG102029
Sidus BT ID：110E59
Hardware Version
Controller
Ver : 1.0
Lamp Head
Ver : 1.0
Operating status
Temperature
Fixture Run Time
Errors: 0
Temperature
Ambient
MCU
LED
40℃ / 104℉
65℃ / 149℉
75℃ / 167℉
LED Engine Hours
Total Hours
800h
System Hours
Total Hours
1000h
Operating status
Temperature
Fixture Run Time
Errors: 0
2m
14800lux 165000lux 81500lux 36200lux 148000lux 28500lux
1375fc 15335fc 7574fc 3364fc 13755fc 2649fc
3m
6690lux 75800lux 32900lux 15600lux 65500lux 13200lux
622fc 7045fc 3058fc 1450fc 6087fc 1227fc
5m
2550lux 26100lux 11100lux 5550lux 22800lux 4840lux
237fc 2426fc 1032fc 516fc 2119fc 450fc
7m
1290lux 13000lux 5530lux 2820lux 11500lux 2500lux
120fc 1208fc 514fc 262fc 1069fc 232fc
2m
19000lux 211000lux 104000lux 46200lux 190000lux 36700lux
1766fc 19610fc 9665fc 4294fc 17658fc 3411fc
3m
8570lux 97100lux 42200lux 20000lux 84500lux 16900lux
796fc 9024fc 3922fc 1859fc 7853fc 1571fc
5m
3260lux 33400lux 14200lux 7100lux 29400lux 6220lux
303fc 3104fc 1320fc 660fc 2732fc 578fc
7m
1660lux 16700lux 7100lux 3610lux 14800lux 3220lux
154fc 1552fc 660fc 336fc 1375fc 299fc
2m
21500lux 239000lux 118000lux 52600lux 216000lux 41600lux
1998fc 22212fc 10967fc 4888fc 20074fc 3866fc
3m
9690lux 110000lux 47800lux 22600lux 96200lux 19200lux
901fc 10223fc 4442fc 2100fc 8941fc 1784fc
5m
3690lux 37800lux 16000lux 8020lux 33300lux 7050lux
343fc 3513fc 1487fc 745fc 3095fc 655fc
7m
1870lux 18900lux 8030lux 4080lux 16800lux 3640lux
174fc 1757fc 746fc 379fc 1561fc 338fc
High-speed photography mode
CCT
2500K
3200K
4300K
Distance Bare light
Reflectors CF12 Fresnel lens tube
BM7815 BM7830 BM7845 15° 45°
