* If High-Speed Mode is ON:
(1) The lowest intensity output is 20% when utilizing High-Speed Mode.
(2) FX Modes cannot be utilized in High-Speed Mode.
26
In the System Settings Fan Mode, rotate the Select Wheel and press to choose between Smart,
High, Medium, Silent and DMX Controlled Fan Mode.
When using the DMX Controlled Fan Mode, the options for the Fan are:
1) Smart: able to work in -20°C/-4ºF through 45°C/113ºF environment, the lamp will
automatically adjust the fan speed according to different ambient temperatures.
2) High:
able to work in -20°C/-4ºF through 45°C/113ºF environment, fan will maintain its
highest speed. In High-Speed Mode, the fan uses the Max Fan setting.
3) Medium: Capable of working in -20°C/-4ºF through 35°C/95ºF environments, the fan uses
a medium speed. Medium is the slowest speed possible for Maximum Output.
4) Silent: When working in an environment of -20ºC/-4ºF–45ºC/113ºF, the fan stays OFF, but
the output of the lamp is limited to 75W.
5) DMX Controlled: Fan listens to the settings sent by the lighting console. See the STORM
1200x DMX Chart for details.

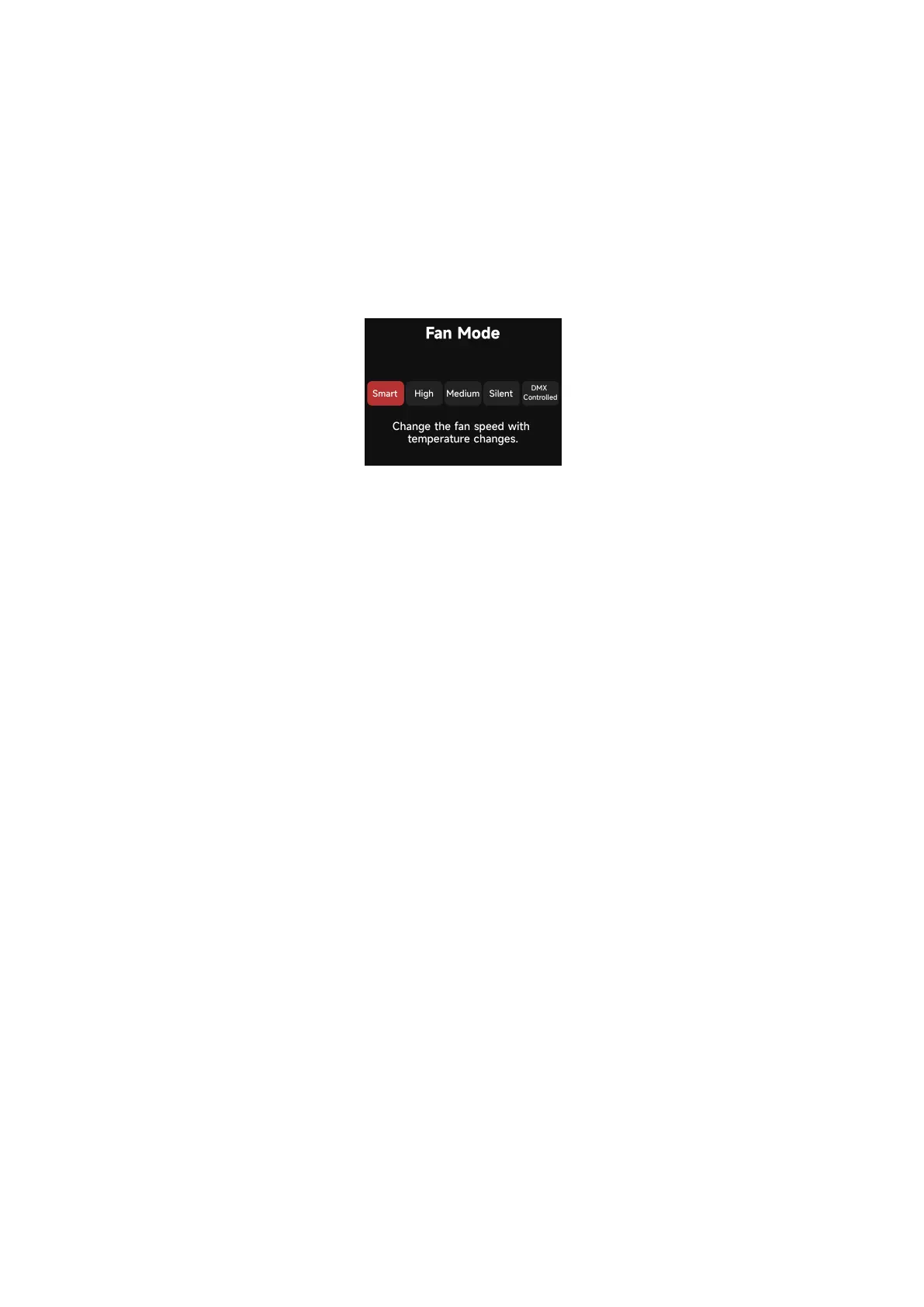

2.4.6 Fan Mode
Fan Mode
Change the fan speed with
temperature changes.
Silent
High
Medium
Smart
DMX
Controlled
Distance Bare light
Reflectors CF12 Fresnel lens tube
2m
14600lux 162000lux 80000lux 35500lux 145000lux 28000lux
1357fc 15056fc 7435fc 3299fc 13476fc 2602fc
3m
6570lux 74000lux 32200lux 15300lux 64300lux 13000lux
611fc 6877fc 2993fc 1422fc 5976fc 1208fc
5m
2510lux 25600lux 10900lux 5420lux 22400lux 4760lux
233fc 2379fc 1013fc 505fc 2082fc 442fc
7m
1270lux 12800lux 5430lux 2770lux 11300lux 2460lux
118fc 1190fc 505fc 257fc 1050fc 229fc
2m
18700lux 206000lux 102000lux 45400lux 185000lux 35800lux
1738fc 19145fc 9480fc 4219fc 17193fc 3327fc
3m
8370lux 94600lux 41100lux 19500lux 82500lux 16500lux
778fc 8792fc 3820fc 1812fc 7667fc 1533fc
5m
3170lux 30900lux 13800lux 6910lux 28600lux 6070lux
295fc 2872fc 1283fc 642fc 2658fc 564fc
7m
1610lux 16300lux 6920lux 3510lux 14500lux 3160lux
150fc 1515fc 643fc 326fc 1348fc 294fc
2m
19000lux 212000lux 105000lux 47000lux 192000lux 37000lux
1766fc 19703fc 9758fc 4368fc 17844fc 3439fc
3m
8620lux 97400lux 42400lux 20100lux 85300lux 17100lux
801fc 9052fc 3941fc 1868fc 7928fc 1589fc
5m
3280lux 33600lux 14300lux 7130lux 29600lux 6280lux
305fc 3123fc 1329fc 663fc 2751fc 584fc
7m
1670lux 16800lux 7150lux 3630lux 15000lux 3240lux
155fc 1561fc 664fc 337fc 1394fc 301fc
Normal mode
CCT
2500K
3200K
4300K
BM7815 BM7830 BM7845 15° 45°
