User's Manual
1 Slot cover plate
This manual
3. INSTALLATION
3.1. Opening the flexiverter
Required: Torx T10 screwdriver
Power off the device and detach all cables to avoid short-circuit or damage
Detach the device from the rack-mount kit

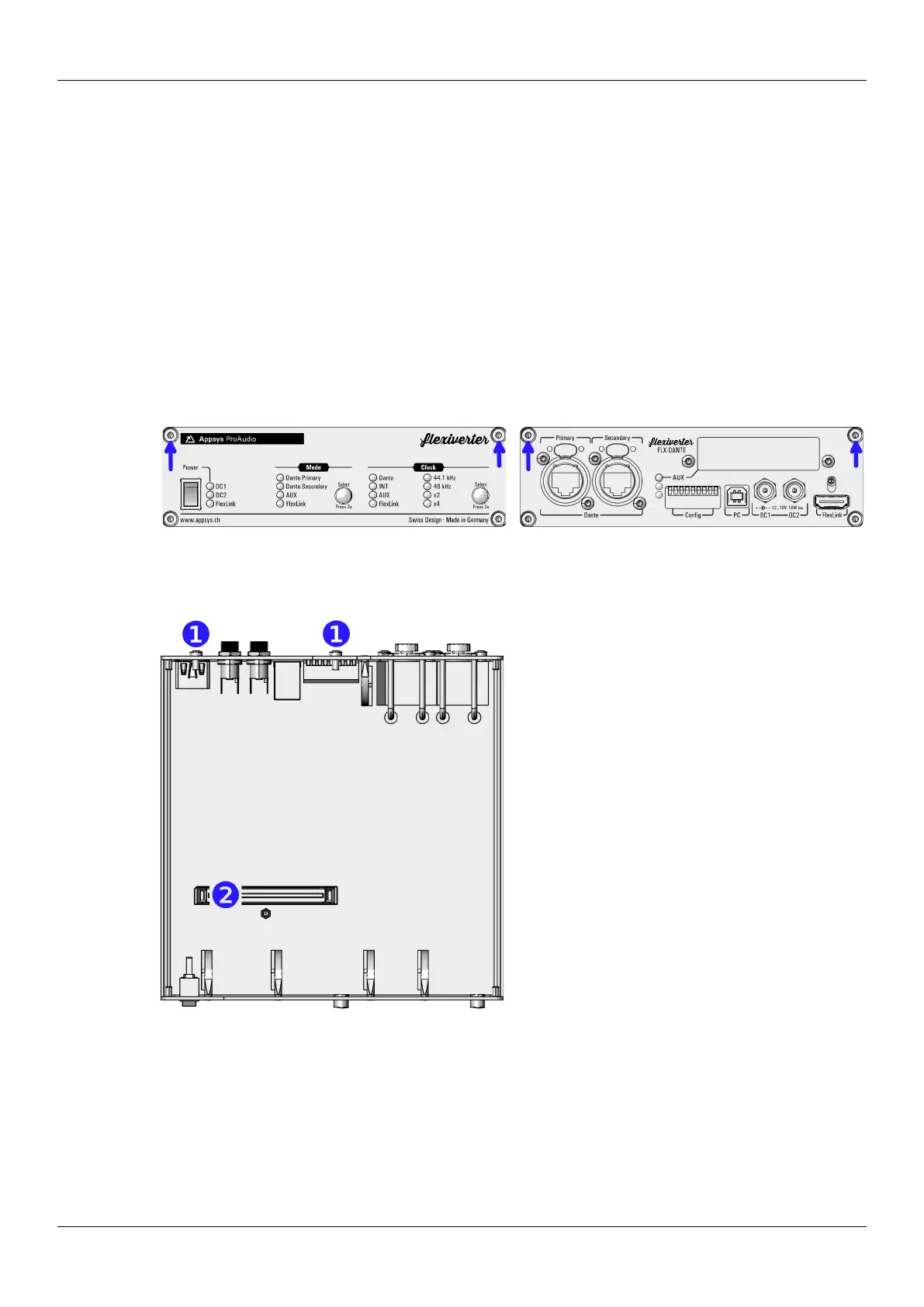

Remove the four top screws and the top cover by pulling it upwards:
3.2. Flexiverter Inside View
➊
Screws for AUX cover plate
➋
AUX card connector
3.3. Installing the card
Remove the screws holding the cover plate, and the blank cover plate
➊
Insert the AUX card from inside, using the supplied cover plate.
Make sure it is correctly fitted to the card connector
➋
4
