AUX-MADI-COAX-DUAL

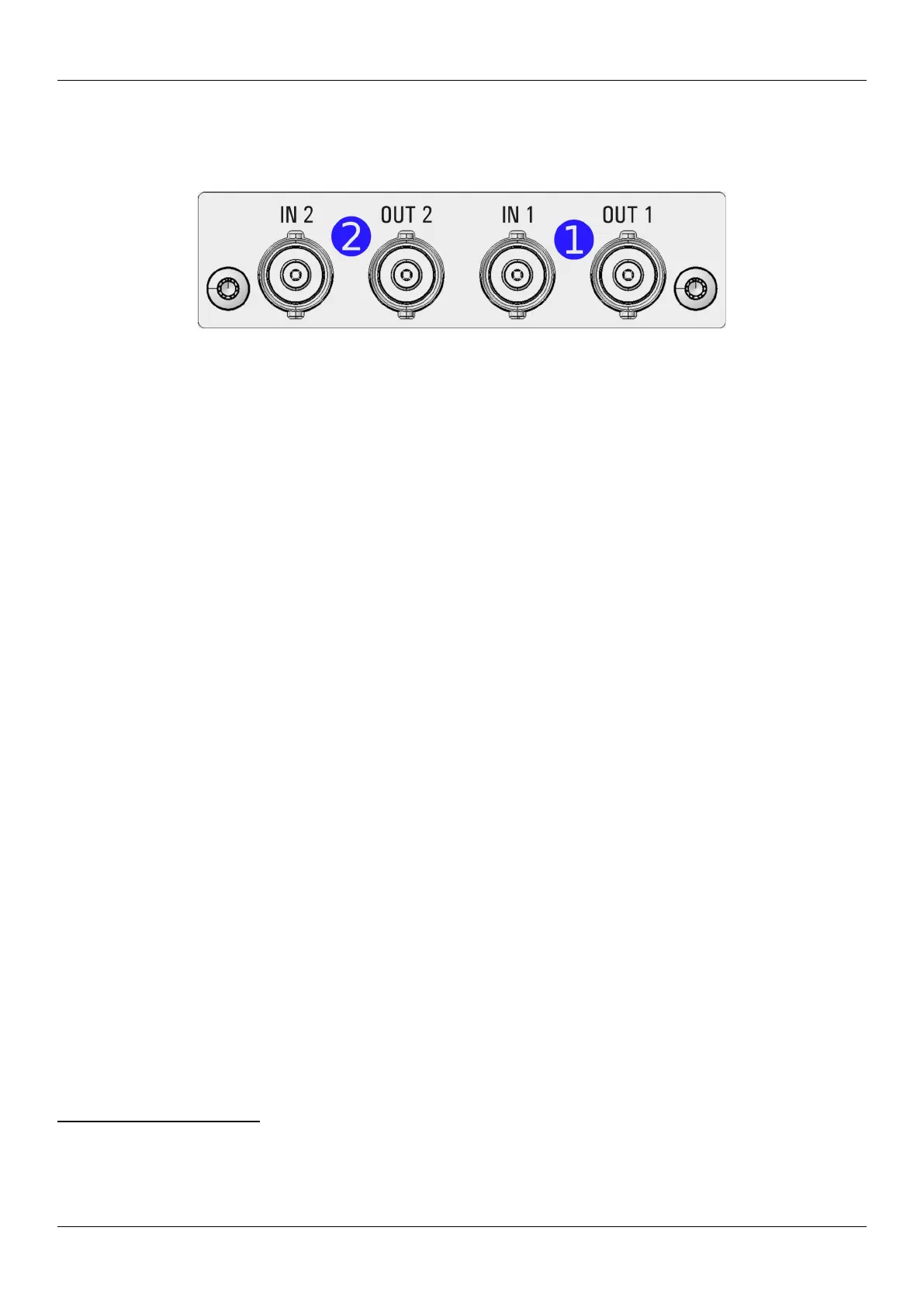

1. CONNECTORS
➊
MADI coaxial input/output Link 1 (channels 1-64@48k / 1-32@96k / 1-16@192k)
➋
MADI coaxial input/output Link 2 (channels 33-64@96k / 17-32@192k)
2. DESCRIPTION
The AUX-MADI-COAX card provides 64x64 channels at 96k, or 32x32ch at 192k
of MADI coaxial via MADI dual link
1
. It can be fitted into the FLX-DANTE/SRC
2
device to make a 64x64 channel 48k Dante<> 96k MADI converter.
For a detailed description of possible configurations, please refer to the manual of
your base FLX device.
2.1. Box Contents
1 AUX-MADI-COAX-DUAL card
1 Slot cover plate
This manual
3. INSTALLATION
3.1. Opening the flexiverter
Required: Torx T10 screwdriver
Power off the device and detach all cables to avoid short-circuit or damage
Detach the device from the rack-mount kit
1 128ch @ 48k is supported by the card, but not yet by any of the FLX host devices. This functionality may
be added later via firmware updates.
2 In any other FLX device, the card will act as AUX-MADI-COAX card, Link 2 is inactive.
