10

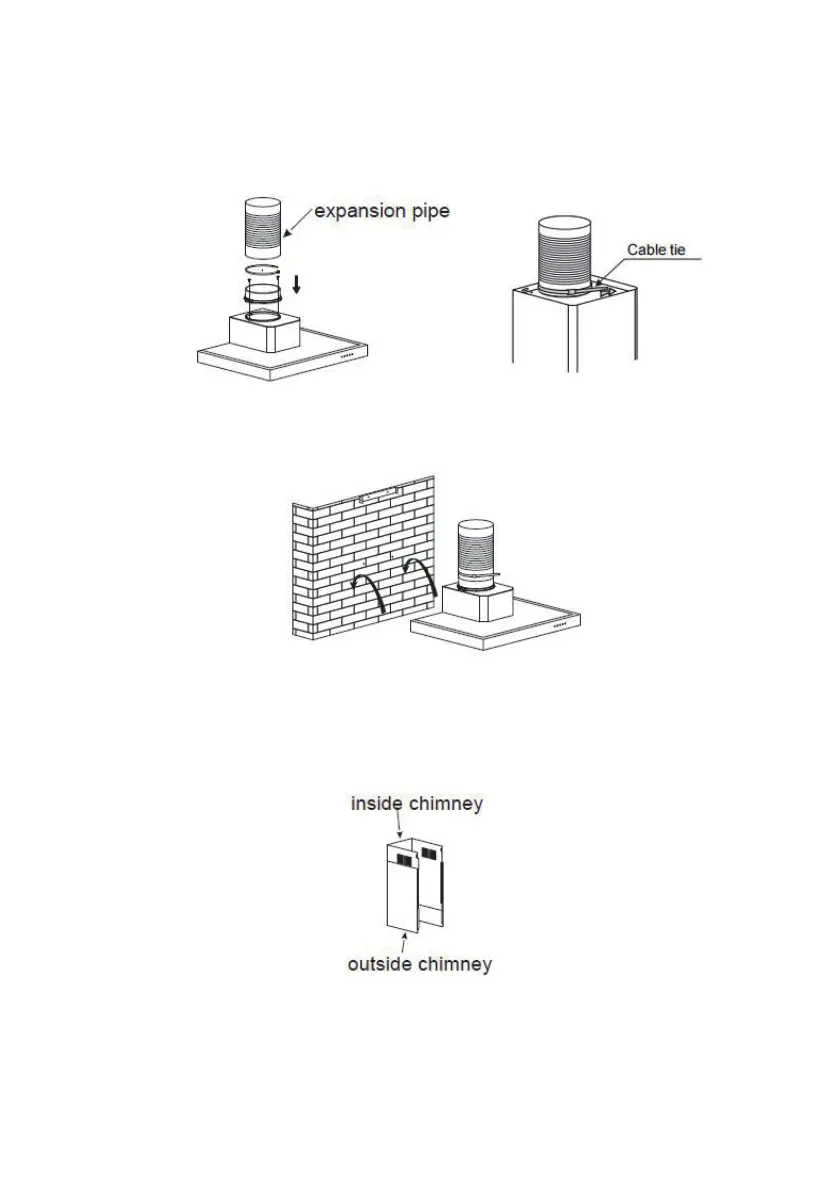

4. Use 2pcs screws（4*8mm） to fix the outlet on the appliance top,and then fix
expansion pipe onto the outlet with cable tie. See pic 3.Note:the expansion pipe
is not included i n the product.
Pic 3
5. Hang the appliance onto the mounting screws. See pic 4.
Pic 4
6. Install the chimney assembly onto the appliance and lead the expansion pipe to
outside, then use 2pcs safety screws（4* 30mm） to fix the cooker hood on the
wall. Note: The two safety vents are positioned on the back housing, with diameter
of6mm.Seepic5&6.
Pic 5
7. Pull up the inside chimney until it reach the inside chimney bracket and fix them
with 2pcs screws（4*8mm）. See pic 7.
