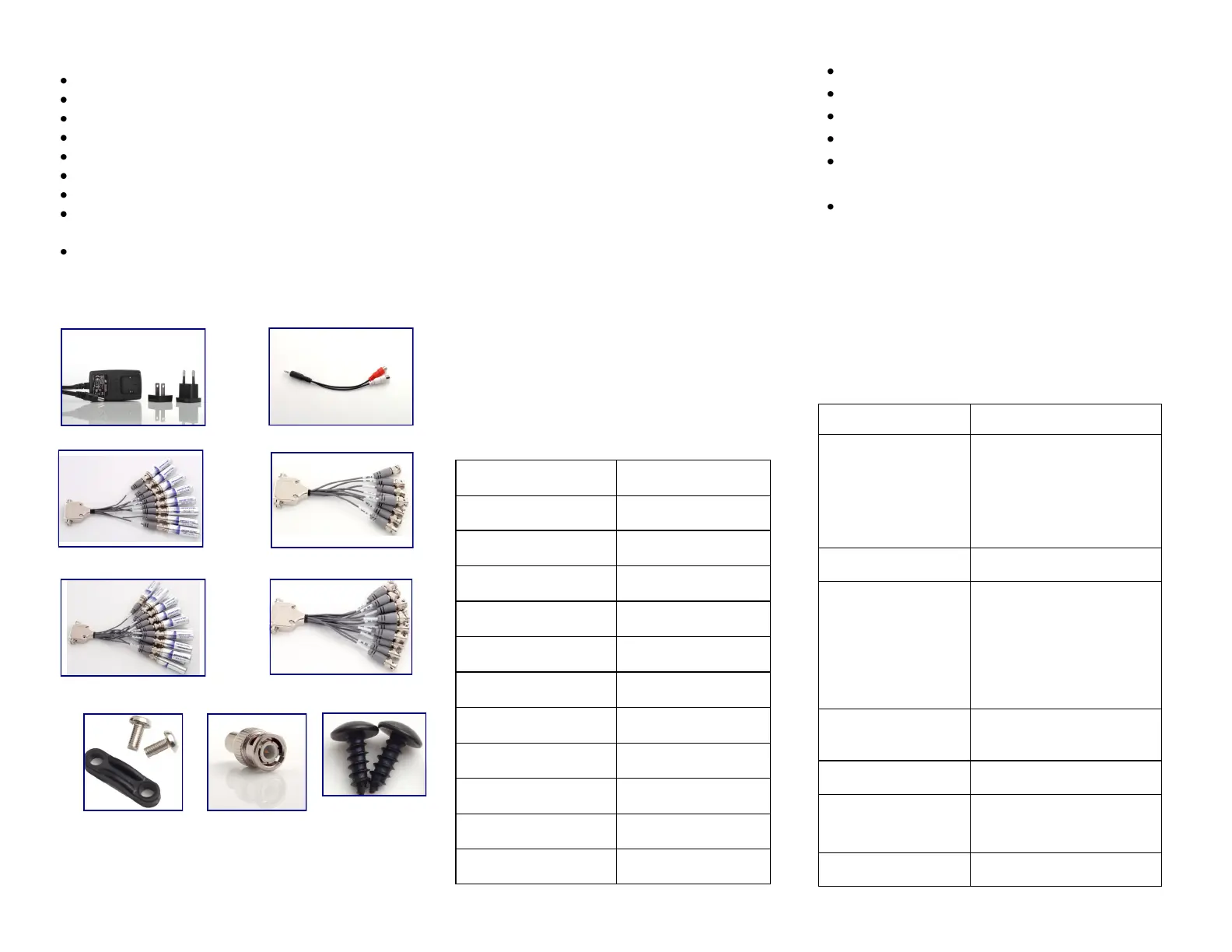

Accessories

Power Adapter

Stereo Phone Jack (1 x 2)

Power Adapter

Fastener

75 Ω Terminator

Mounting Screws

DB25 to AES Balanced

DB25 to AES Unbalanced

DB25 to AA Balanced

DB25 to AA Unbalanced

Features

Supports 3G /HD/SD-SDI input

2 3G/HD/SD-SDI looping outputs

Supports 16 channels of embedded audio

AES and Analog audio monitoring output

Rotary switch to select the AES/AA pair for

monitoring

Real-time LED audio meters

Installation

1. Connect the power supply and if needed, lock

the 5V DC power adapter with the supplied

accessories. (Located in the small transparent

plastic bag.)

2. Use the selected DB25 breakout cable to

monitor the de-embedded analog or AES au-

dio.

3. Turn the rotary switch for audio monitoring

For example: Position 1 = Group 1,

Channels 1 and 2, Position 2 = Group 2,

Channels 3 and 4 and so on…

4. Connect the SDI loop through, if needed.

MODEL DA-HDTV-SDI

DESCRIPTION Triple Rate 3G, HD-SD-SDI

audio de-embedder with 2

Looping Input and AES/AA

outputs

INPUT 1 x SDI

OUTPUT 2 x SDI (loop-out), 1 Ste-

reo Audio (Phone Jack),

AES (BNC), up to 16 Ana-

log or 8 AES Audio output

ADJUSTMENTS Rotary dial for audio moni-

toring selection

MOUNT Magnetic

POWER 5V 3.2A

DIMENSIONS 62 W x 112 D x 29 H (mm)

Specifications

Package Contents

DA-SDI-DE

User Manual

Power Supply (5V 3.2A)

Stereo Phone Jack (1 x 2)

75 Ω Terminator

Power Supply Fastener

Magnetic Mounting Plate

Analog or AES breakout Audio Cable (must

specify at the time of order)

Mounting Screws

SDI INPUT HDMI/DVI OUTPUT

1080p60 1920x1080p 60Hz

1080p59.94 1920x1080p 59.94Hz

1080p50 1920x1080p 50Hz

1080i60

1920x1080i 60Hz

1080i59.94

1920x1080i 59.94Hz

1080i50 1920x1080i 50Hz

720p60 1280x720p 60Hz

720p59.94 1280x720p 59.94Hz

720p50 1280x720p 50Hz

480i59.94 1440x480i 59.94Hz

576i50 1440x576i 50Hz

Supported Formats
