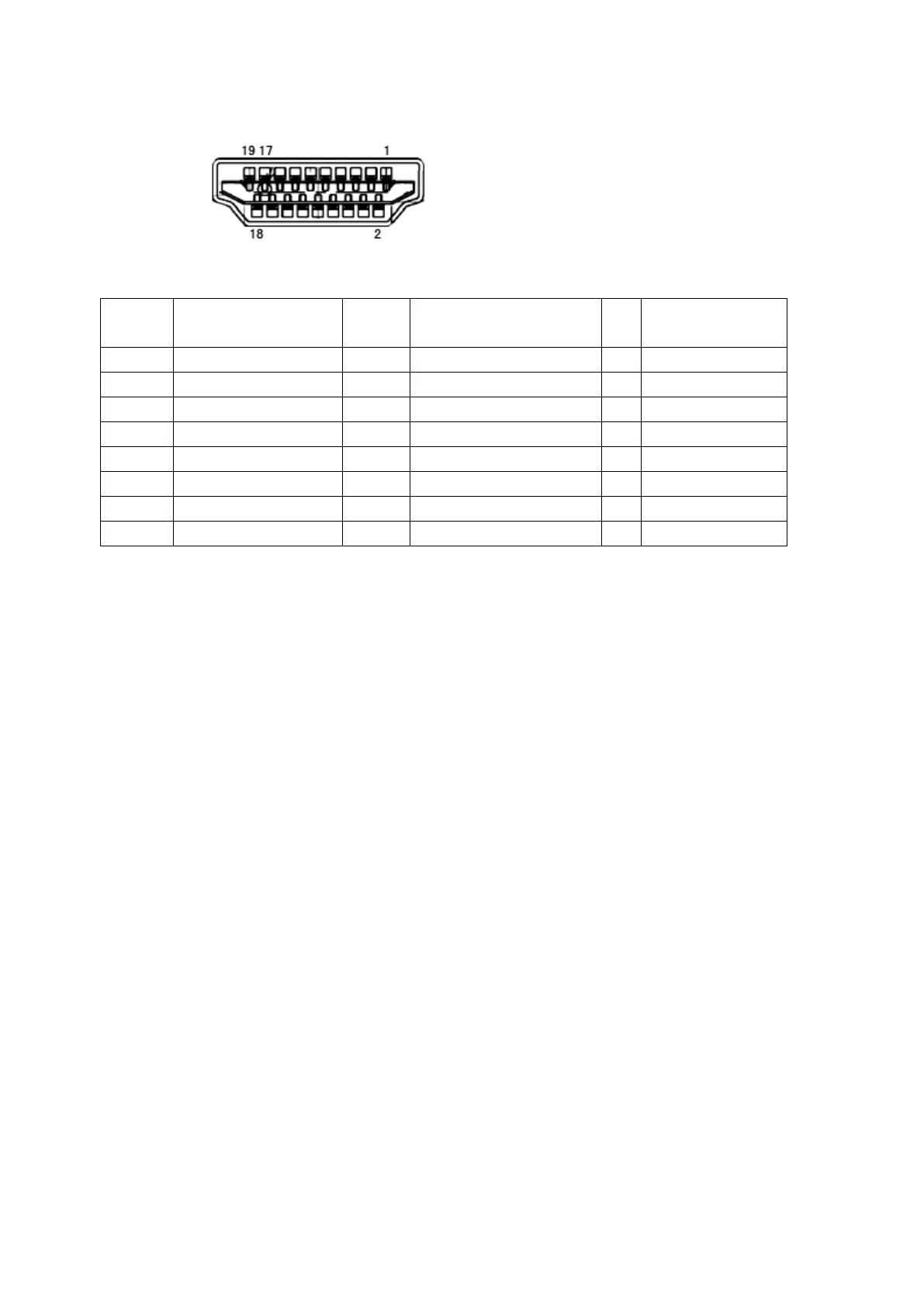

Pin No.
Signal Name
Pin No.
Signal Name
Pin
No.
Signal Name
1
TMDS Data 2+
9
TMDS Data 0
17
DDC/CEC Ground
2
TMDS Data 2 Shield
10
TMDS Clock +
18
+5V Power
3
TMDS Data 2
11
TMDS Clock Shield
19
Hot Plug Detect
4
TMDS Data 1+
12
TMDS Clock
5
TMDS Data 1Shield
13
CEC
6
TMDS Data 1
14
Reserved (N.C. on device
7
TMDS Data 0+
15
SCL
8
TMDS Data 0 Shield
16
SDA
Plug and Play
Plug & Play DDC2B Feature
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the
monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional
information about its display capabilities.
The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over
the DDC2B channel.
