ProfiHub B2FO2+ User Manual| February 2018 | © PROCENTEC 6/40
1.2 Product features
• 2 Galvanic isolated outgoing channels (repeater segments).
• 2 Fiber Optic channels.
• Transparent for all PROFIBUS DP protocols.
• DP - RS 485 specifications for each channel.
• Cable redundancy for copper channel 1 and 2
• 9.6 Kbps to 12 Mbps.
• 31 devices per channel.
• 3000 m cable length for FO channel 1 and 2
• 1200 m spur line length for copper channel 1 and 2 (depending on transmission speed).
• Redundant power supply
• No limit in serial placement or cascading of ProfiHubs.
• Alarm contact, with manual reset button.
• No address required.
• Integrated termination facilities (switches).
• Configurable grounding system (direct or capacitive).
• IP 20 classification
• Increased temperature range

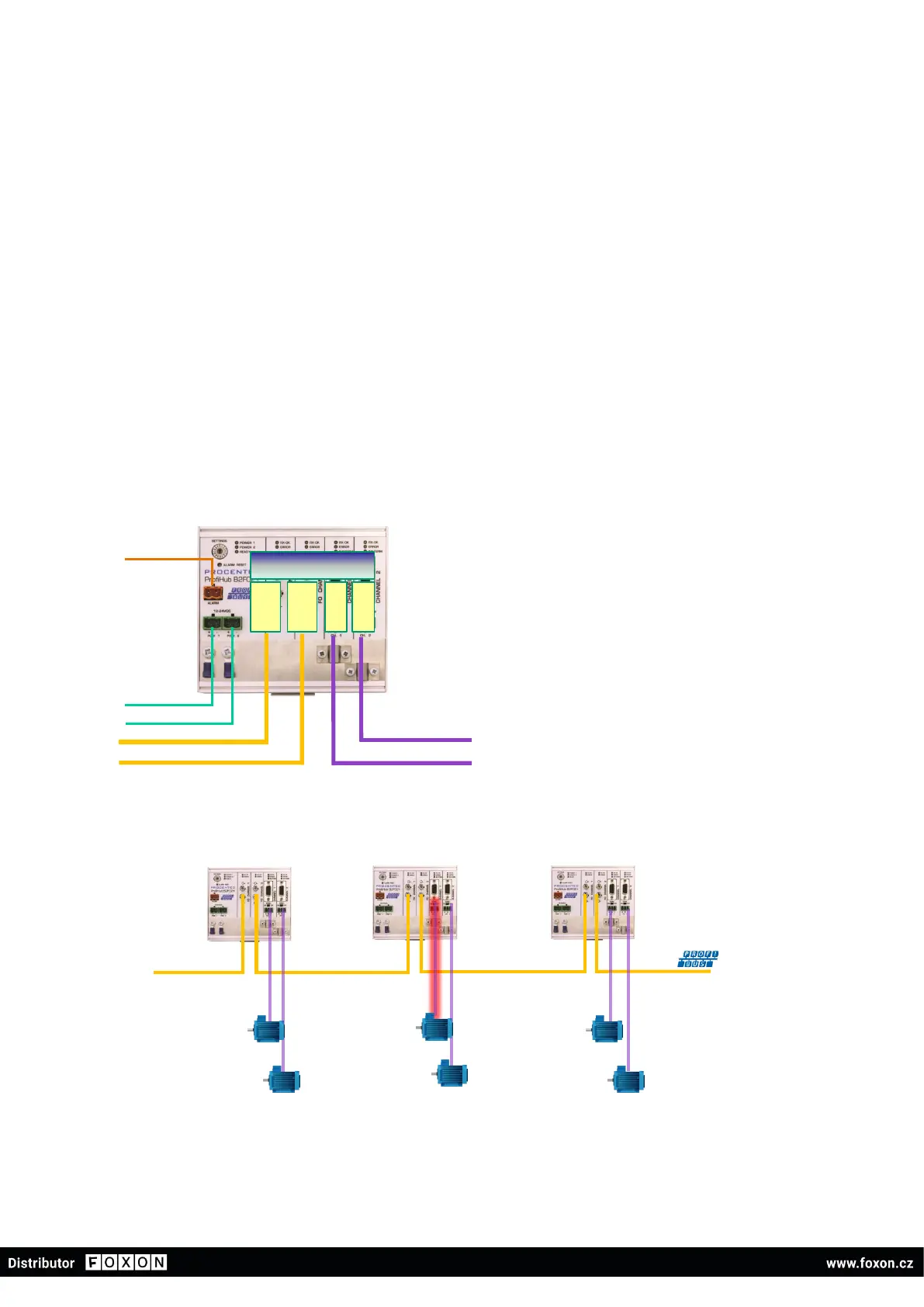

Fig. 2 - ProfiHub connections
Fig. 3 - Long spur lines to instruments and the possibility to remove/insert them during operation. Short circuit protection on each
spur line is automatically provided
Intelligent Internal
Backbone
C1 C2
Copper Channel 1 and 2
Power supply 2
Power supply 1
Alarm contact
FO1
FO2
FO Channel 1 and 2
DP Fiber Optic Backbone
Wiring problems
do not spread to
the other spur lines
Each spur line
can be 200m
at 1,5 Mbps
