Antelope Audio Zen Quadro Synergy Core User Manual
Page 62
LOOPBACK FUNCTION FOR STREAMING
This chapter explains how to configure the Zen Quadro Synergy Core for use with a streaming
application. The basic workflow is like this:
1. Use the Control Panel application to create the audio mix you want to send to your streaming
application. This mix can be the 'Monitor/HP1' mix, the 'Headphone 2' mix, or both. The mixes can
include both input audio (such as audio from a microphone) and operating system/computer audio
(playback, DAW output, sound effects, and so on).
2. If you want to stream on a computer, head to the USB 1 I/O' view in the Control Panel application. Use
the Input Selectors to route 'LOOPBACK MON/HP1 MIX' 1 - 2 and/or 'LOOPBACK HP2 MIX' 1 - 2 to the

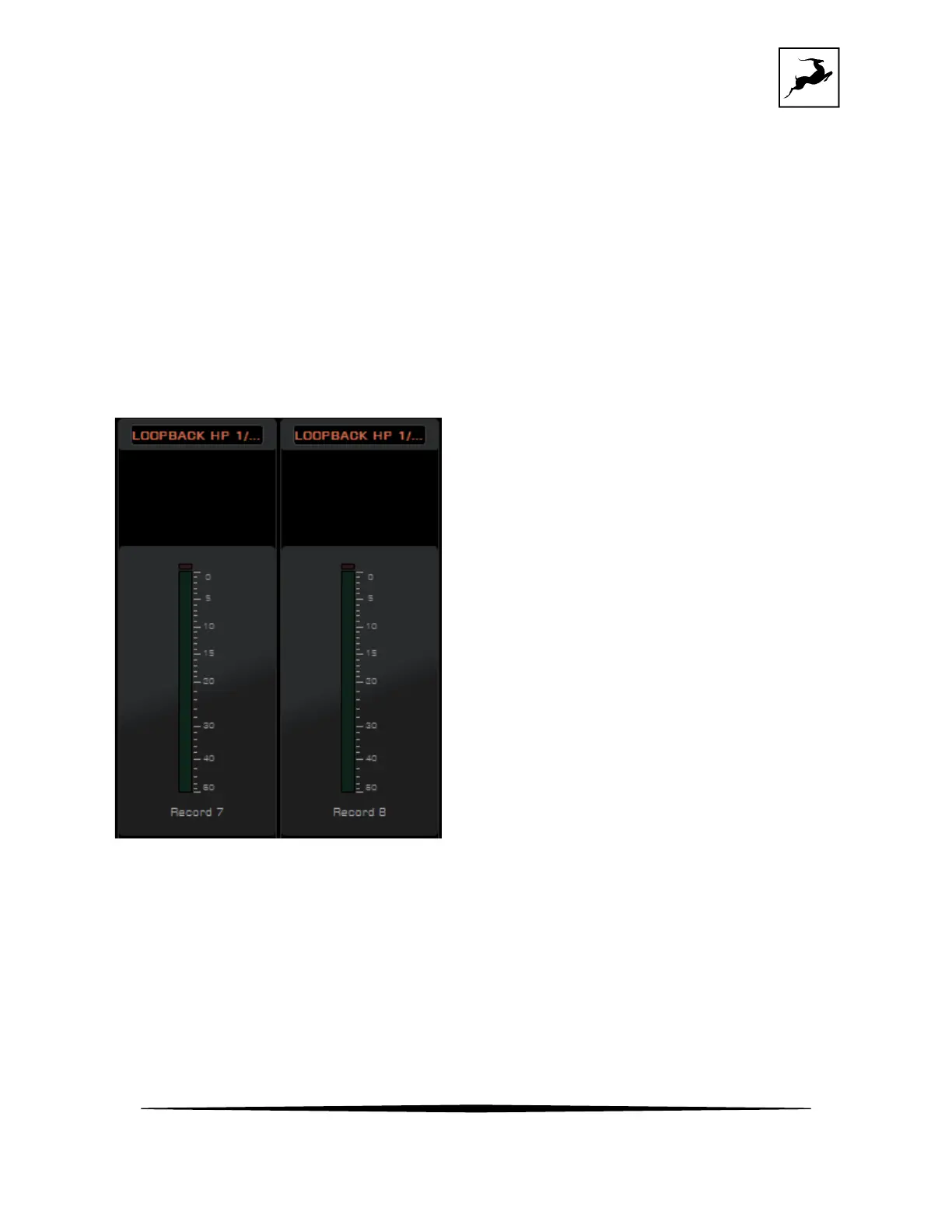

virtual inputs of your choice. For example, route 'LOOPBACK MON/HP1 MIX' 1 to 'Record 7', and
'LOOPBACK MON/HP1 MIX' 2 to 'Record 8':
3. Configure your streaming application to receive audio from Inputs 7 and 8. This way, the application
will receive the stereo output from the Monitor/HP1 mixer in the Control Panel application.
Two stream from your mobile device via the secondary USB-C port, head to the USB 2 I/O' view in the
Control Panel application. Use the Input Selectors to route 'LOOPBACK MON/HP1 MIX' 1 - 2 and/or
'LOOPBACK HP2 MIX' 1 - 2 to Record 1 and Record 2.
