Antelope Audio Zen Quadro Synergy Core User Manual
Page 21

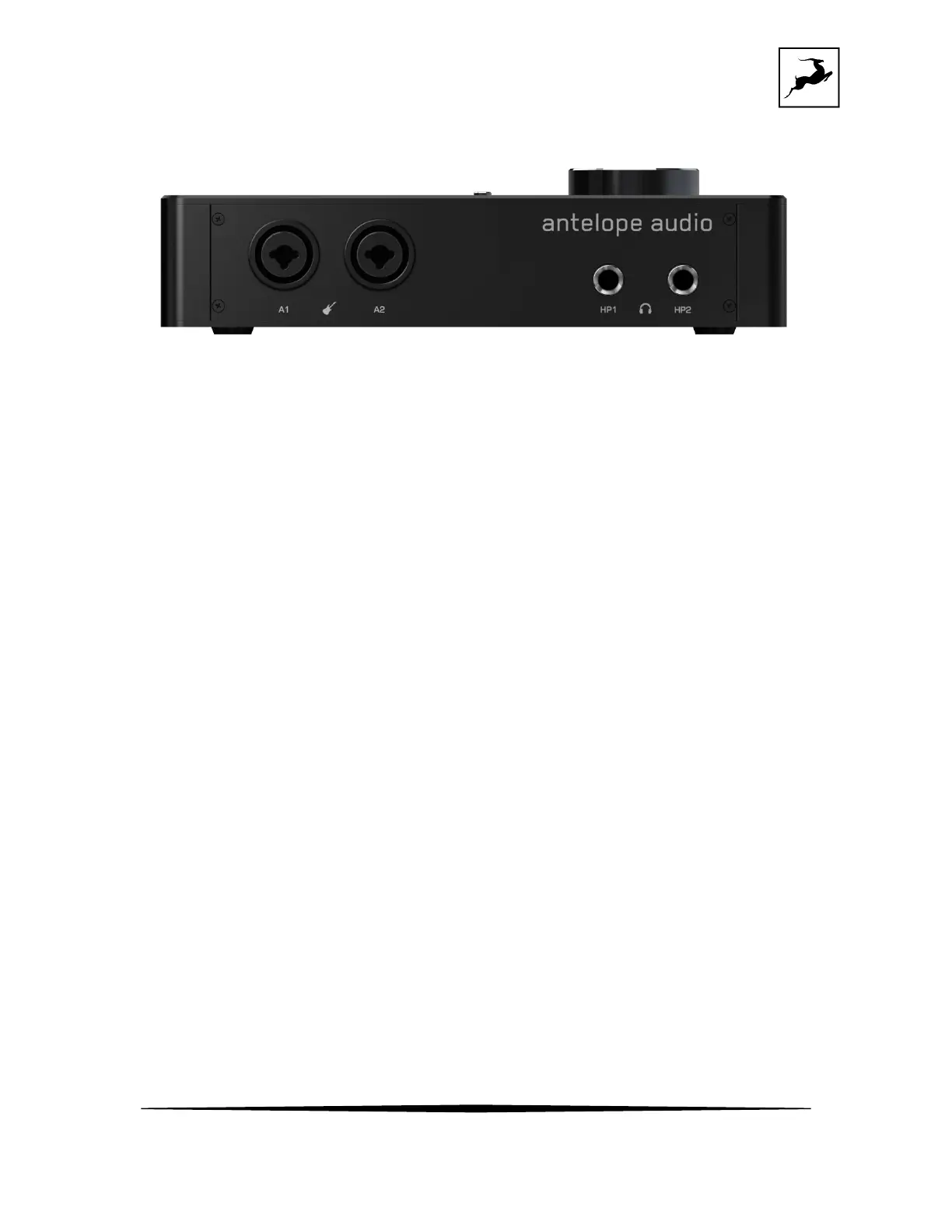

Front Panel
The Zen Quadro Synergy Core front panel is home to a pair of switchable Mic/Line/Hi-Z
instrument inputs (labeled 'A1' and 'A2') and a pair of stereo headphone outputs (labeled 'HP1'
and 'HP2').
The headphone outputs have dedicated volume controls accessed from the 'HP/MON' button
on the unit's top panel, and from the Windows/macOS Control Panel application.
Always use the following connections:
• Connect microphones with 3-pin XLR microphone cables. As a general precaution,
make sure 48V phantom power is switched off before connecting dynamic and ribbon
microphones.
• Connect line-level audio sources (such as synthesizers and keyboards) with 1/4-inch
TS (unbalanced, mono) or TRS (balanced, mono and stereo) audio cables.
• Connect high-impedance electric musical instruments (such as electric guitars and
basses) with 1/4-inch TS (unbalanced, mono) instrument cables.
