SATORI & R4S User Manual 12

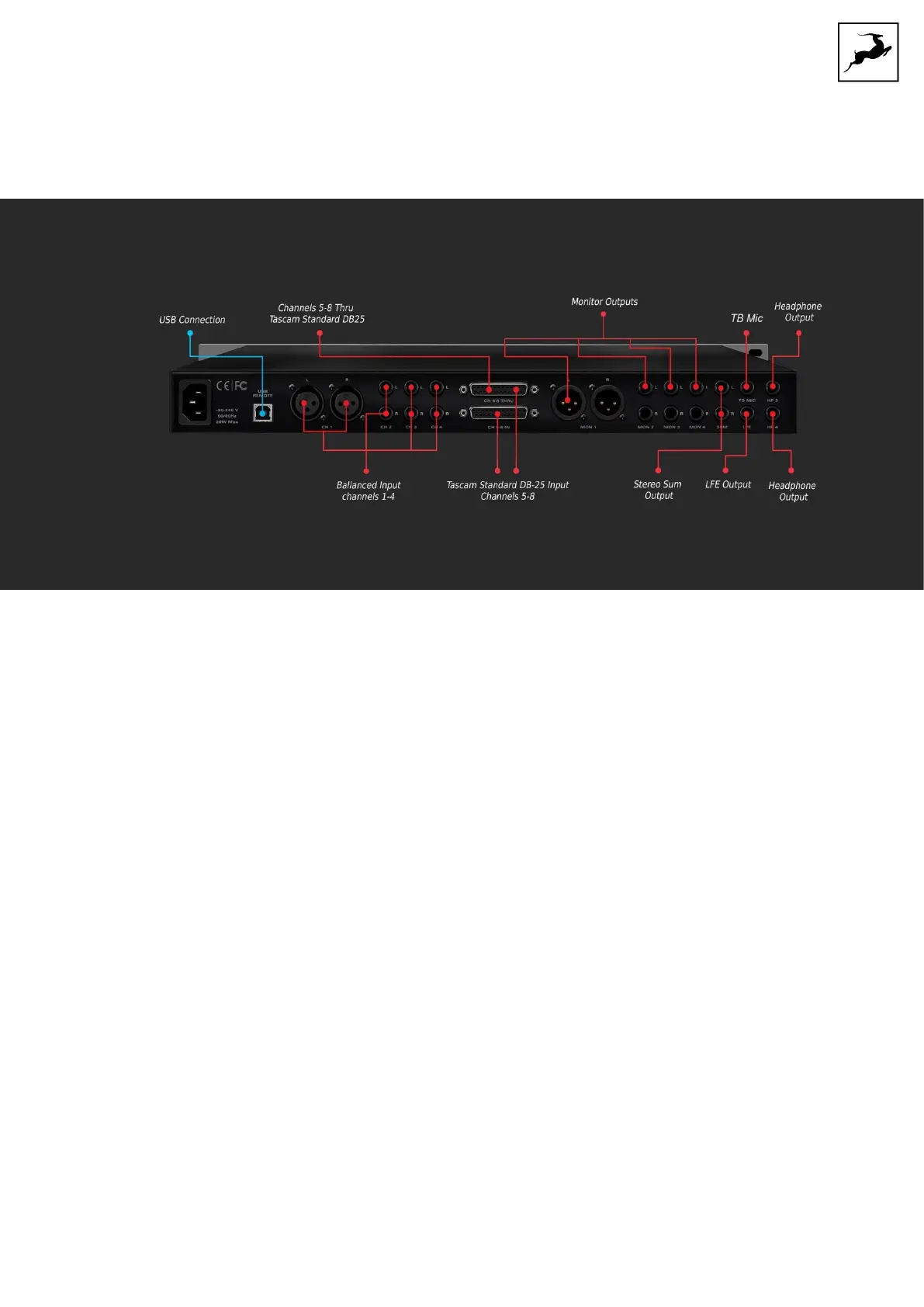

REAR PANELS EXPLAINED

Satori

1. Mains Power Connection

The AEC connector supports a range from ~95-245 V. This lets the device automatically

accommodate mains voltage in every country.

2. USB Full-Speed

Satori uses an USB connector Type-B and lets users connect to the Windows & macOS

Control Panel application.

3. 4 x Stereo Source Inputs

Four stereo inputs, one on XLR and three on TRS for connecting a wide variety of inputs.

4. 4 x Stereo Source Inputs on D-Sub with a Thru Output

D-Sub Thru, outputs all 4 stereo channels coming through Stereo input channels 5-8.

The D-Sub inputs, as well as going to the D-Sub Thru, also get summed to the stereo sum

output. The D-Sub Inputs are on an 8 channel D-Sub connection. The 8 channels make up

4 stereo inputs, odd numbered inputs being the left signal and even numbered inputs

being the right signal.
