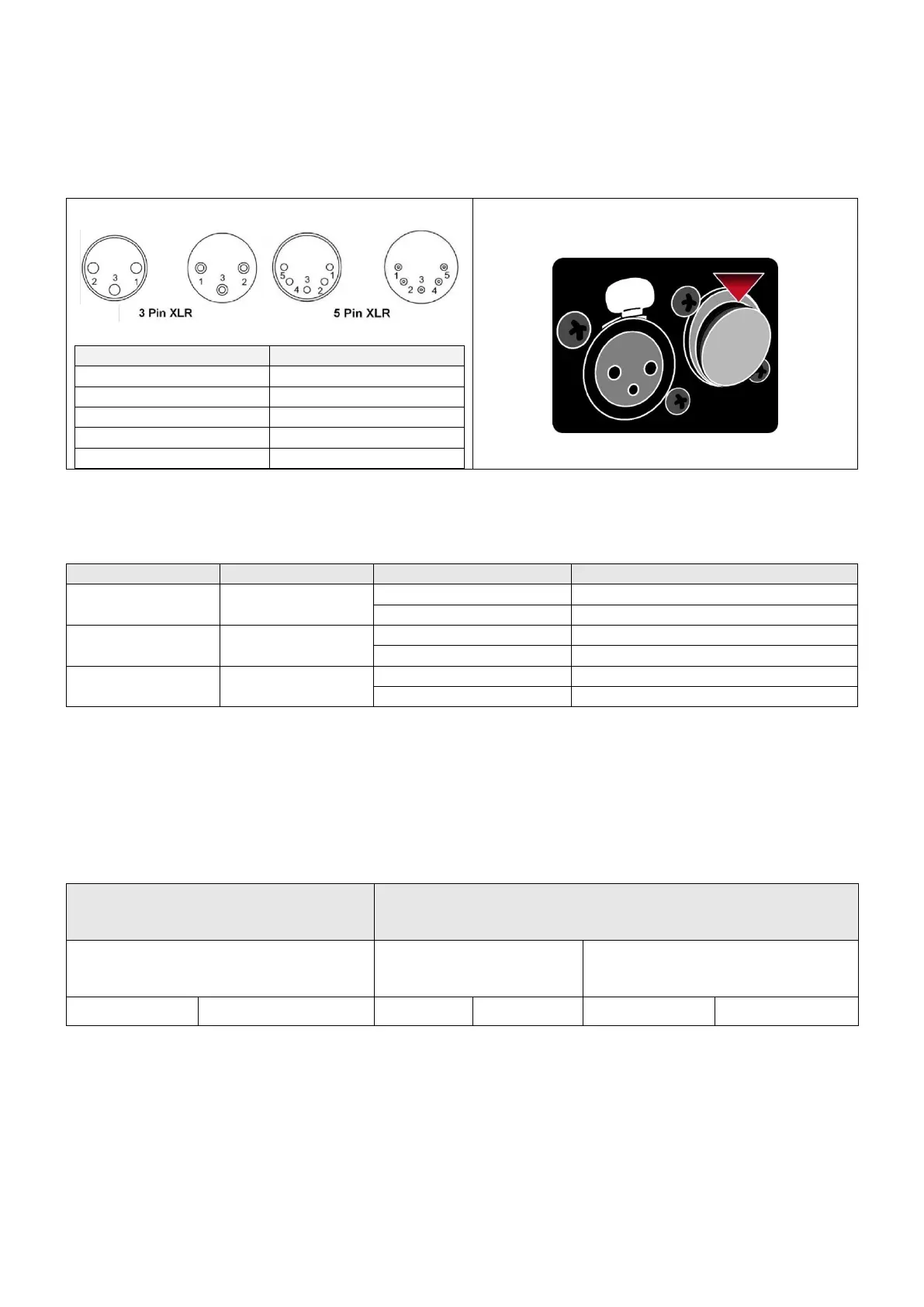

9. DMX Connection
9.1 DMX Connector Pin Assignment
The machine has a XLR 3-Pin and 5-Pin for DMX connection. The diagram below indicates pin assignment
information.
Pin
Function
1
Ground
2
Data-
3
Data+
4
N/A
5
N/A
** There is a protection cap on DMX IN, please
remove it with your finger before operation.
9.2 DMX Channel Function
The machine provides 3 DMX Channels to select from, please see chart below.
Channel Mode
Channel
DMX Value Range
Function
Channel 1
1
0 – 127
Faze Mode
128 – 255
Fog Mode
Channel 2
2
0 – 5
Output Off
6 – 255
Output 21%– 100%
Channel 3
3
0 – 5
Fan Speed 20%
6 – 255
Fan Speed 21% – 100%
10. RDM Function
M-12 Universal Voltage Fog Machines is RDM enabled, allowing control system to configure, monitor and
manage. See below table for supported RDM categories and parameters.
10.1 RDM UID
ESTA Manufacturer ID
(16-bit)
Device ID (32-bit)
Fixed
Fixed
RDM UID
Range: 0x0000 ~ 0xFFDC
0x1E
0xD8
0x00
0x0C
0x00
0x01
※RDM UID can be set in Factory Mode
