6
**If LCD control panel display “Warning”, please stop operating and turn off the machine immediately. Please
contact your local Antari dealer for assistance.

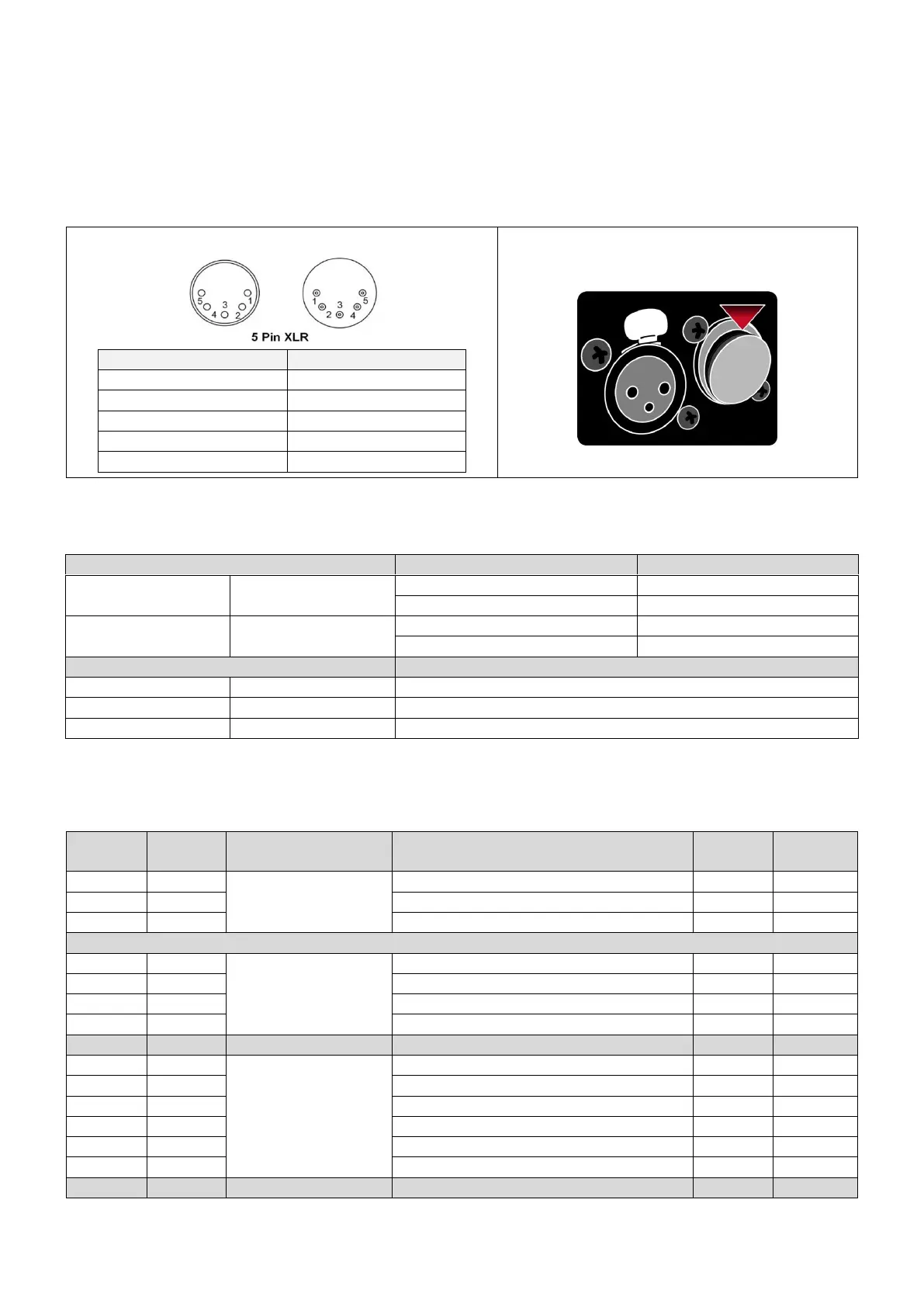

10. DMX Connection
10.1 DMX Connector Pin Assignment
The machine provides a XLR 5-Pin connector for DMX connection. The diagram below indicates pin assignment
information;
Pin
Function
1
Ground
2
Data-
3
Data+
4
N/A
5
N/A
** There is a protection cap on DMX IN, please
remove it with your finger before operation.
10.2 DMX Channel Function
This machine provides 2 channel DMX and 3 modes to choose, please see chart below.
Channel Mode
DMX Value Range
Function
Channel 1
Fog Output Level
0 – 5
Off
6 – 255
1 – 100%
Channel 2
Fan Speed
0-50
20%
51-255
21-100%
Channel Mode
Function
Mode 1
Channel 1
Ch1 and Ch2 Sync Output
Mode 2
Channel 1
Ch1 and Fan Speed at 100%
Mode 3
Channel 2
Ch1 Fog Output and Ch2 Fan Speed
11. RDM Function
The F-6 Fazer Fog Machine is RDM enabled, allowing control system to configure, monitor and manage. See
below table for supported RDM parameters.
GET
Allowed
SET
Allowed
Category
RDM Parameter ID’s(Slot 21-22)
Value
Required
NetworkManagement
網路管理
DISC_UNIQUE_BRANCH
0x0001
O
0x0002
O
0x0003
O
O
RDM Information
RDM 資訊
QUEUED_MESSAGE
0x0020
O
STATUS_MESSAGES
0x0030
O
SUPPORTED_PARAMETERS
0x0050
O
O
PAPAMETER_DESCRIPTION
0x0051
O
O
Product Information
產品資訊
DEVICE_INFO
0x0060
O
O
PRODUCT_DETAIL_ID_LIST
0x0070
O
DEVICE_MODE_DESCRIPTION
0x0080
O
MANUFACTURER_LABEL
0x0081
O
O
DEVICE_LABEL
0x0082
O
SOFTWARE_VERSION_LABEL
0x00C0
O
