ENGLISH
B-TWIG 8 MOBILE | User manual
12
13
User manual | B-TWIG 8 MOBILE
INSTALLATION:

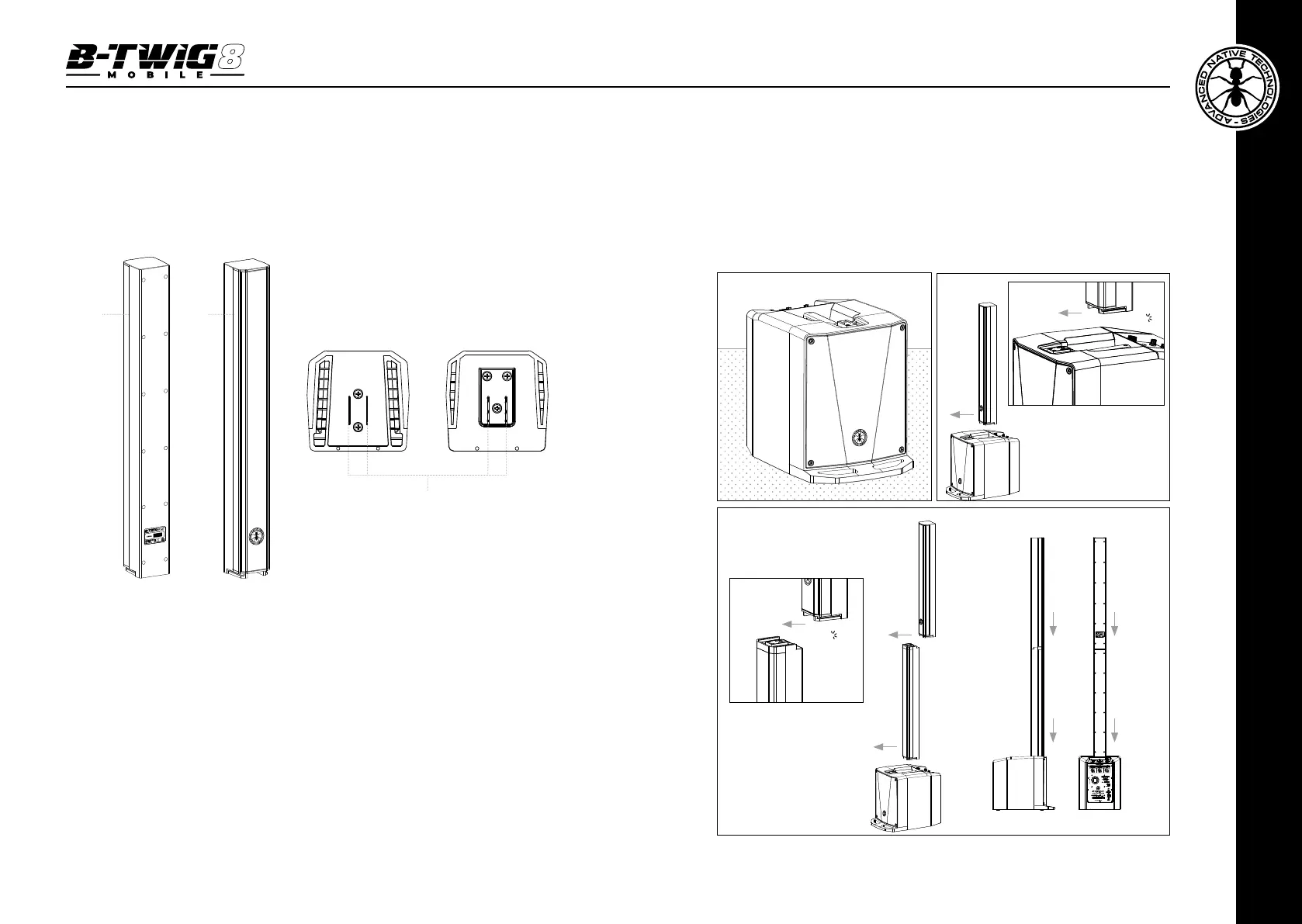

1. Place the subwoofer on a flat surface with no unevenness (Fig.1)
2. Secure element A by sliding it into the slide coupling mechanism (Fig.2).
3. Repeat the operation to x element B in the upper part of the system (Fig.3)
3.4 | B-TWIG 8CS MOBILE KIT
The kit, supplied with the appropriate carrying case, consists of two column elements: a stand
(element A) and a speaker (element B). Both are equipped with slide connection mechanism,
allowing quick coupling and release of the elements composing the system, ensuring perfect
functionality in complete safety.
4 | SYSTEM ASSEMBLY AND DISASSEMBLY INSTRUCTIONS
To install the appliances and to ensure their correct operation, strictly follow the following
instructions:
• Place the subwoofer upright on a flat and stable surface, making sure that all lower rubber
feets are perfectly adherent to the floor or surface.
• Never install the system on movable carts, chairs, tables, or similar objects that are not
stable or able of bearing system weight.
• Do not use the handle to suspend the system.
• Never obstruct the ventilation slots located on subwoofer rear frame.
• To allow proper dissipation of the amplication heat, leave a sufcient distance between
the rear panel of the subwoofer and other objects such as walls, corners, curtains, and
never place the unit near heat sources of any kind.
Fig.3
Side
View
Final assembly
Rear
View
A
Hook B by pushing
towards arrow direction
B
Click
A
B
Hook A by pushing
towards arrow direction
A
Click
Fig.2
A
Fig.1
Top view
Plug Side Socket Side
Audio Contacts
BA
