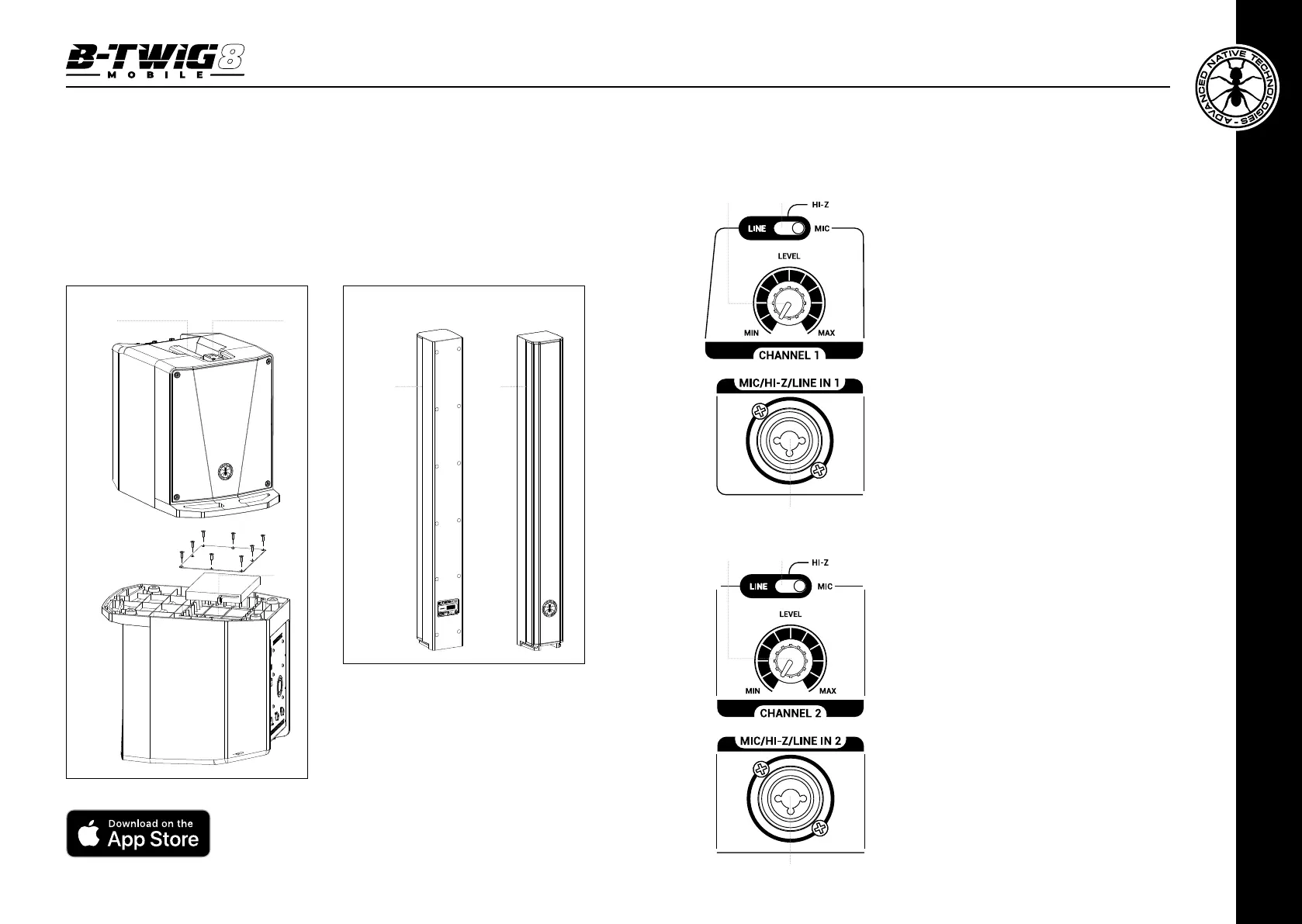

Je bekijkt pagina 3 van 59
ENGLISH
B-TWIG 8 MOBILE | User manual
4
5
User manual | B-TWIG 8 MOBILE
1 CHANNEL 1 LINE / HI-Z / MIC
This selector allows you to choose channel 1
input sensitivity.
LINE: line signal, most frequent application.
HI-Z: high impedance signal from a musical
instrument.
MIC: microphone signal, dynamic microphone
connected to channel 1
2 CHANNEL 1 LEVEL
This control adjusts the level of channel 1.
Turn the knob clockwise to raise the volume or
counterclockwise to lower it.
3 CHANNEL 1 CONNECTOR
Balanced input with Combo socket (XLR-F +
6.35mm jack). Accepts line, microphone or high
impedance signals (eg electro-acoustic or electric
guitar). The microphone can be also connected
with an unbalanced jack cable.
4 CHANNEL 2 LINE / HI-Z / MIC
This selector allows you to choose channel 2
input sensitivity.
LINE: line signal, most frequent application.
HI-Z: high impedance signal from a musical
instrument.
MIC: microphone signal, dynamic microphone
connected to channel 2
5 CHANNEL 2 LEVEL
This control adjusts the level of channel 2.
Turn the knob clockwise to raise the volume or
counterclockwise to lower it.
6 CHANNEL 2 CONNECTOR
Balanced input with Combo socket (XLR-F +
6.35mm jack). Accepts line, microphone or high
impedance signals (eg electro-acoustic or electric
guitar). The microphone can be also connected
with an unbalanced jack cable.
3.1 | INPUTS & CONTROLS
2 | INSTALLATION
The system is composed by the active subwoofer B-TWIG 8S MOBILE, plus B-TWIG 8CS kit:
A | Top recessed handle.
B | Battery compartment.
C | Sliding locking system for elements quick lock and release.
D | Support element/stand.
E | Passive column speaker.
Download ANT SPEAKER CONTROLLER APP for use with
Apple iPhone to access additional options and features.
ED
A C
B
B-TWIG 8S MOBILE B-TWIG 8CS
3 | DESCRIPTION
3
6
2 1
4
5
