2 - CONFIGURATION
This user manual describes the following products :
• Zoom EZ1 Pack (foot or meter)
• Zoom EZ2 Pack (foot or meter)
• Zoom EZ3 Pack (foot or meter)
The conguration of the EZ1 Pack allows, via a change of the FF / Vista
Vision rear subassembly and clamping rings, to switch from an EZ1-S35
PL (30-90) zoom to a FF (45-135 zoom)
The conguration of the EZ2 Pack makes it possible to change the FF /
Vista Vision rear subassembly and clamping rings from a zoom EZ2-S35
PL (15-40) to a zoom FF (22-60)
The conguration of the EZ3 Pack makes it possible to change the FF /
Vista Vision rear subassembly from a zoom EZ3-S35 PL (45-165) to a
zoom FF (68-250)
The zoom box EZ1/EZ2 (foot or meter) includes:
• A zoom type EZ1/ EZ2 - S35 PL
• An optical rear group FF/VV
• An iris engraved ring
• A focal information red ring
• A shim set
• Two Lens brackets support
The zoom box EZ3 includes :
• A zoom type EZ3 – S35 PL
• An optical rear group FF/VV
• A shim set
• Two intermediate bracket
• A at spanner for removing the front cover

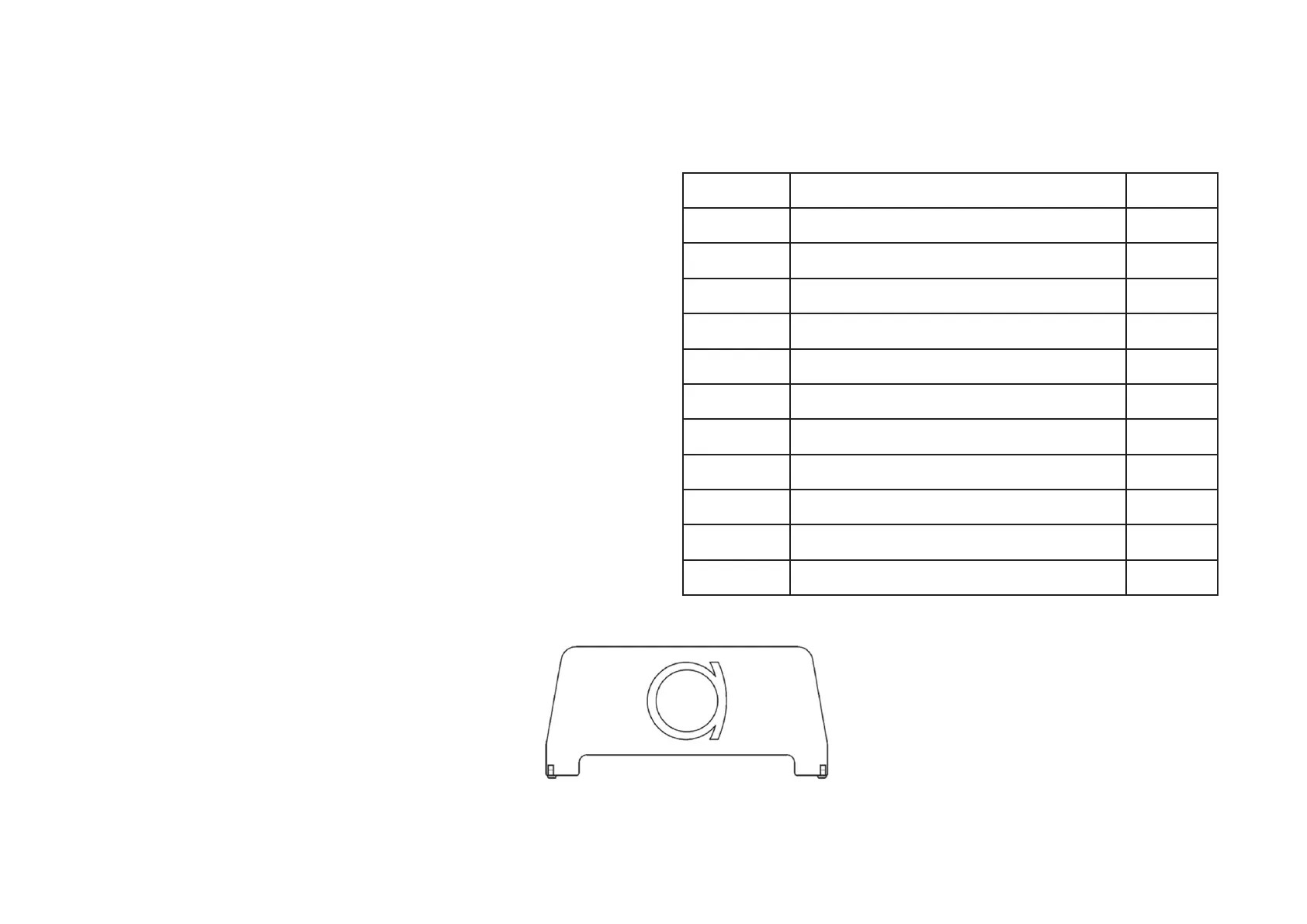

General view
Reference Description Quantity
1 Front cap 1
2 Fixed focus mark 1
3 Engraved focus ring 1
4 Focus rubber ring 1
5 Support 1
6 Zoom rubber ring 1
7 Zoom mark window 1
8 Engraved iris ring 1
9 Red ring 1
10 PL mount sub-assembly 1
11 Rear cap 1
For illustrations, please see FIGURE 1 at the end of the user manual
Flat spanner
