filled with air or smoke, the ball in the flow meter will slowly fall to the bottom of the scale as the
pressure in the system equalizes to the output pressure of the unit. As the flow decreases, the
output pressure will increase. If the flow meter ball never falls to the bottom of the scale, there is
leakage or air passing through the system. It is not necessary to use smoke when using the flow
meter to determine if a leak exists.
K - Flow Dial
In many cases excessive smoke exiting a leak may make it difficult to determine the exact location
of the leak. The purpose of the Flow Control Valve is to decrease the amount of smoke exiting a
leak so that its position may be pinpointed without the masking effect of excessive smoke. Turn
clockwise to decrease flow, counterclockwise to increase flow. This valve is also used to lock out
the system under test and observe any pressure decay on the pressure gauge.
L - Oil Level Gauge
While set up the unit, smoke oil need to be filled into the unit, do not exceed the MAX line.
Check and confirm proper oil level periodically. If the oil level is lower than the MIN line,the unit
would need a refill.

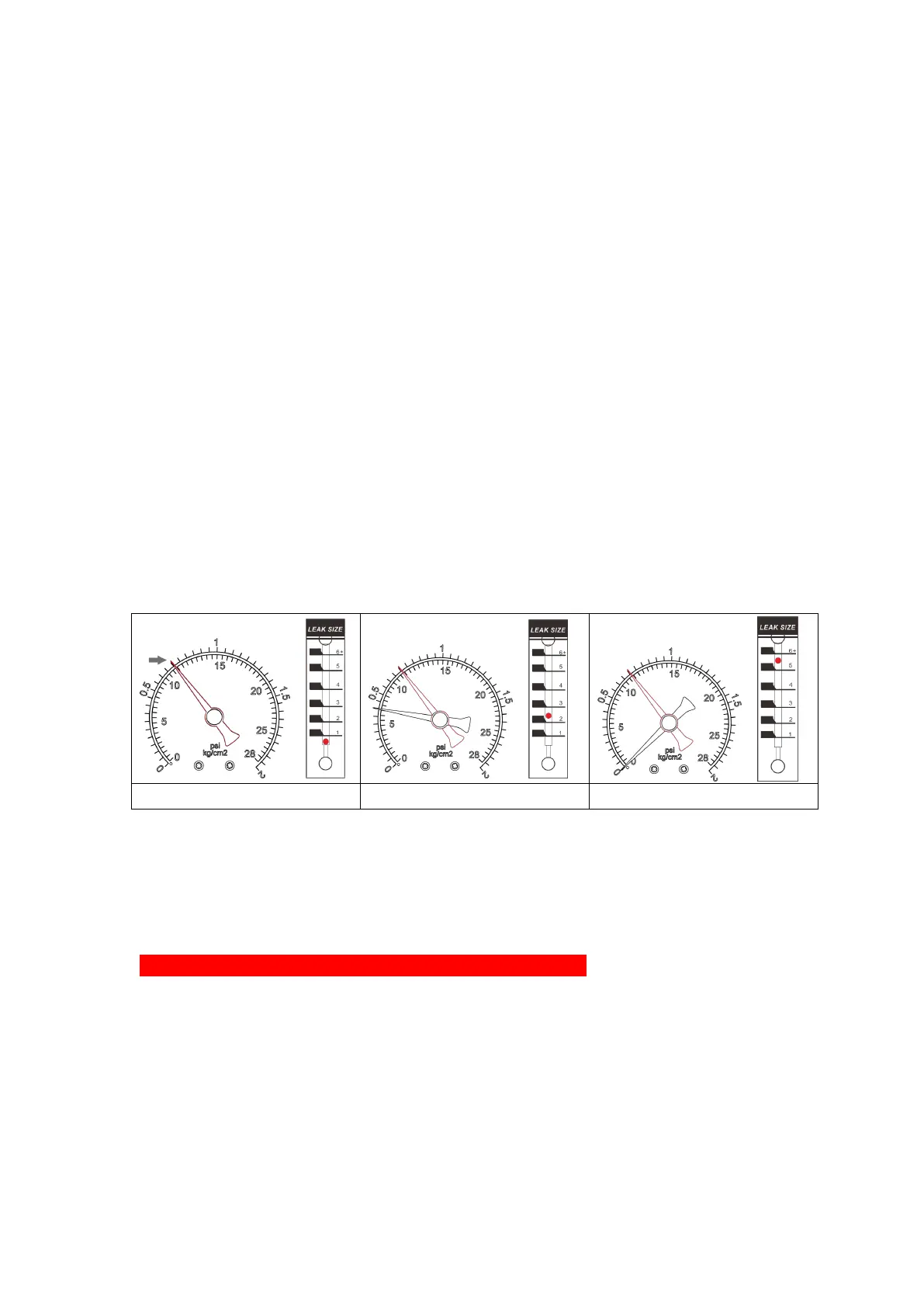

Leak Status Indication
No Leak
Small Leak
Massive Leak
Generic Operation
1. Turn OFF the ignition of the vehicle.
LEAK TEST OF VEHICLE SYSTEMS REQUIRES THE ENGINE TO BE OFF.
2. Dismantle the air filter and the throttle connections.
3. Clean the inner wall of the intake opening to avoid sharp objects and put the Universal Intake
Adapter into the opening.
4. Connect the Power Cord to 12V vehicle battery.
5. Now the Power LED would be ON, if else check the power supply.
6. Introduce the smoke nozzle into the system via the Adapter Cone.
7. Press Air Control Switch, wait for 30 seconds until the system is pressurized, and check the
Pressure Gauge & Flow Meter reading for leak status, if the unit is equipped with Pressure Gauge
& Flow Meter.
