Installing and Configuring Your AV Equipment
N2312/N2322 User Manual
18
Changing IP Addresses
There are two ways to assign new IP addresses to your N2300 units using N-Able:
Option 1: Log in to each unit individually and make the changes on the Settings page.
Option 2: Export a comma-separated value (CSV) file, make changes to all units in the resulting file, and import the CSV file
into N-Able to apply the changes.
Option 1: Assigning IP Addresses Individually (using the Settings page)
1.
Find the unit you wish to change in the control matrix (either on the Unit Management tab or the Video Matrix > N2300 tab).
2.
Double-click the unit and log in.
3.
Go to the Settings page and make IP address changes for that unit either by setting a STATIC address or by enabling DHCP
(see Figure 14
).

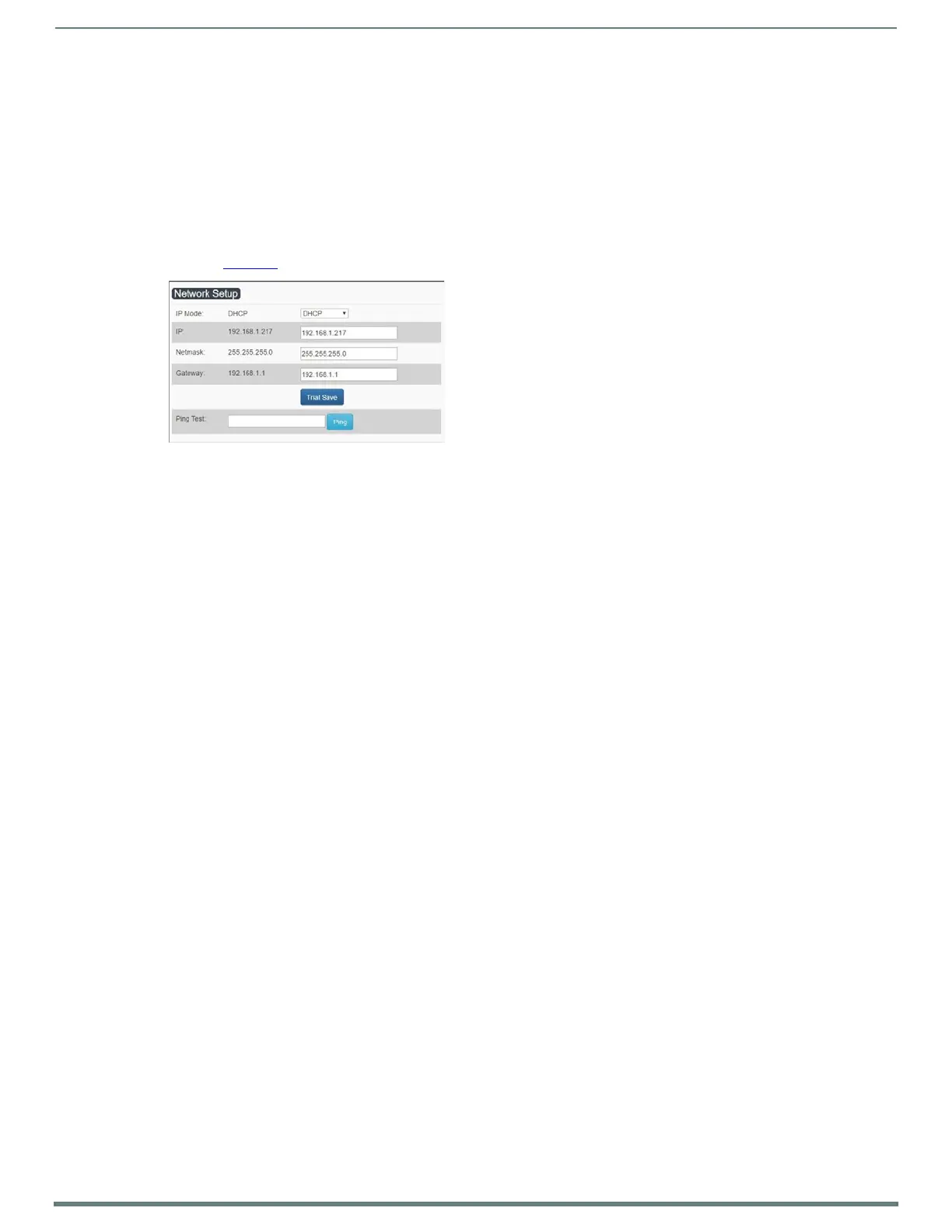

FIG. 14 Network Setup Section of the Settings Page
4.
Click the Trial Save button.
5.
Return to the Settings page through the newly-configured IP address.
6.
Once the Settings page appears (successfully using the new IP address) click the Confirm button to lock in your changes.
NOTE: If you lose communication for any reason, unplug the N2300, wait one minute, and plug it back in. This restores the unit to the
original IP address.
Option 2: Assigning IP Addresses to Multiple Units (using CSV f iles)
N-Able has the ability to export and import CSV files. Once units are auto-discovered in N-Able, the CSV file can be exported into
Excel where parameters such as IP address, subnet mask, gateway, stream number, audio settings, etc. can be configured. Once
configured, import the CSV file back into N-Able to assign those parameters to the appropriate devices. Reboot the devices to
activate the new settings. This procedure can be used to configure multiple networked AV devices at the same time. It can also
provide valuable diagnostics by allowing you to see the last known device configuration as well as scan the network for new devices
(regardless of IP configuration).
To configure units using a CSV file, follow these steps:
1.
Make sure that you have performed an Auto Discover (on the Unit Management tab of N-Able) since connecting all of the new
units to the network.
2.
From the N-Able main menu bar, select N-Able > Export CSV.
3.
Click Yes on the pop-up box informing you that a CSV file is about to be generated.
NOTE: A CSV file editor (e.g., Microsoft Excel) is necessary to proceed.
4.
The folder containing your CSV file displays. Double-click the file to open it.
5.
You can use this file to edit the IP mode, IP address, subnet mask, gateway IP address, stream number, etc. Once all changes
have been made, save the file.
6.
Go back into N-Able and select N-Able > Import CSV.
7.
Browse to your saved CSV file and click Import.
