Battery Power
1. The amp uses 10 " D " size Alkaline batteries (not included); or the optional
rechargeable AmpliVox NiCad Battery Pack (S1465) and (S1460) AC adapter -
purchase separately (Fig 3).
2. Open case and locate battery holder (Fig 1).
3. Lift the battery holder out (Fig 2).
4. Install 10 fresh Alkaline " D" size batteries. Be sure to observe the polarity
when putting batteries in the battery compartment. The negative (flat) ends go
against the springs. Carefully replace battery holder.
DO NOT MIX BATTERY TYPES OR ATTEMPT TO RECHARGE
ALKALINE BATTERIES. EQUIPMENT DAMAGE, SAFETY
HAZARD OR FIRE COULD RESULT.
Note: The battery holder cable comes from the factory already plugged into the
connector. If it comes loose, push it in securely. (Turn the plug over if it doesn’t
fit; it only fits one way.)
5. If using the S-1465 NiCad Battery Pack (Fig 3), replace battery holder with
the battery pack.
Insert the battery pack plug into the connector where the battery holder was
plugged into.
Plug AC Charger Adapter (S1460) into the “DC IN” jack on front panel of the
amplifier. DO NOT connect to the ʺAUX OUTʺ jack.
CAUTION: THE AMPLIVOX S1465 BATTERY PACK CHARGING
SHOULD BE DONE ONLY WITH THE AMPLIVOX S1460
CHARGER ADAPTER TO AVOID PRODUCT DAMAGE OR
HAZARDS.
Plug into a working electrical outlet. AC power cord supplied with unit is for
use in North America. Please consult AmpliVox regarding the proper power
cord type to be used in regions outside of North America.
Press power switch of amplifier to OFF.
NOTE: AMPLIFIER MUST BE TURNED OFF DURING
CHARGING. THE BATTERY PACK DOES NOT CHARGE IF
THE AMPLIFIER IS POWERED ON.
The S1465 battery pack will charge automatically. Charge 24 hours for full
charge before using.
Wireless Headphone / Lapel Bodypack Transmitter for
Model SW222A / SW223A / SW224A
• Battery: The wireless headphone transmitter bodypack (S1690T) is operat-
ed by 1 - "AA" alkaline battery. Before use, install battery as shown (Fig. 4).
Make certain the battery is fully seated in its compartment so the cover
slides in place easily. Battery life with alkaline batteries is approximately 8
hours of operating time. When LED on top panel turns to RED the battery
should be replaced immediately.
• Plug the Lapel / Headset microphone into the Mic Input Jack (C). The Lapel
microphone can be clipped to a necktie/shirt/blouse, using the supplied clip.
The lapel mic should be placed under the chin, as close to the center of the
body as possible .
• Select Channel Number (see features16 & 17, page 6).
• To turn on transmitter, slide the 3 position switch (ON / MUTE / OFF) (B) to
the ON position (the LED indicator light will illuminate green). Replace bat-
teries when this LED turns red.
• When wireless power switch (15) on control panel is turned on, the RF LED
located next to the channel selector (16) will light, meaning that it is receiv-
ing signal. If RF LED does not light, check channel numbers to make sure
that they are on the same number.
• When the RF LED is on, speak into microphone and rotate “VOLUME” con-
trol knob to obtain desired loudness level.
• GAIN SWITCH (B): If you are a soft spoken person then set the switch to
the 10 dB position. If you are a loud speaking person then set the switch to
the -10 dB position. Adjust to prevent distortion while speaking..

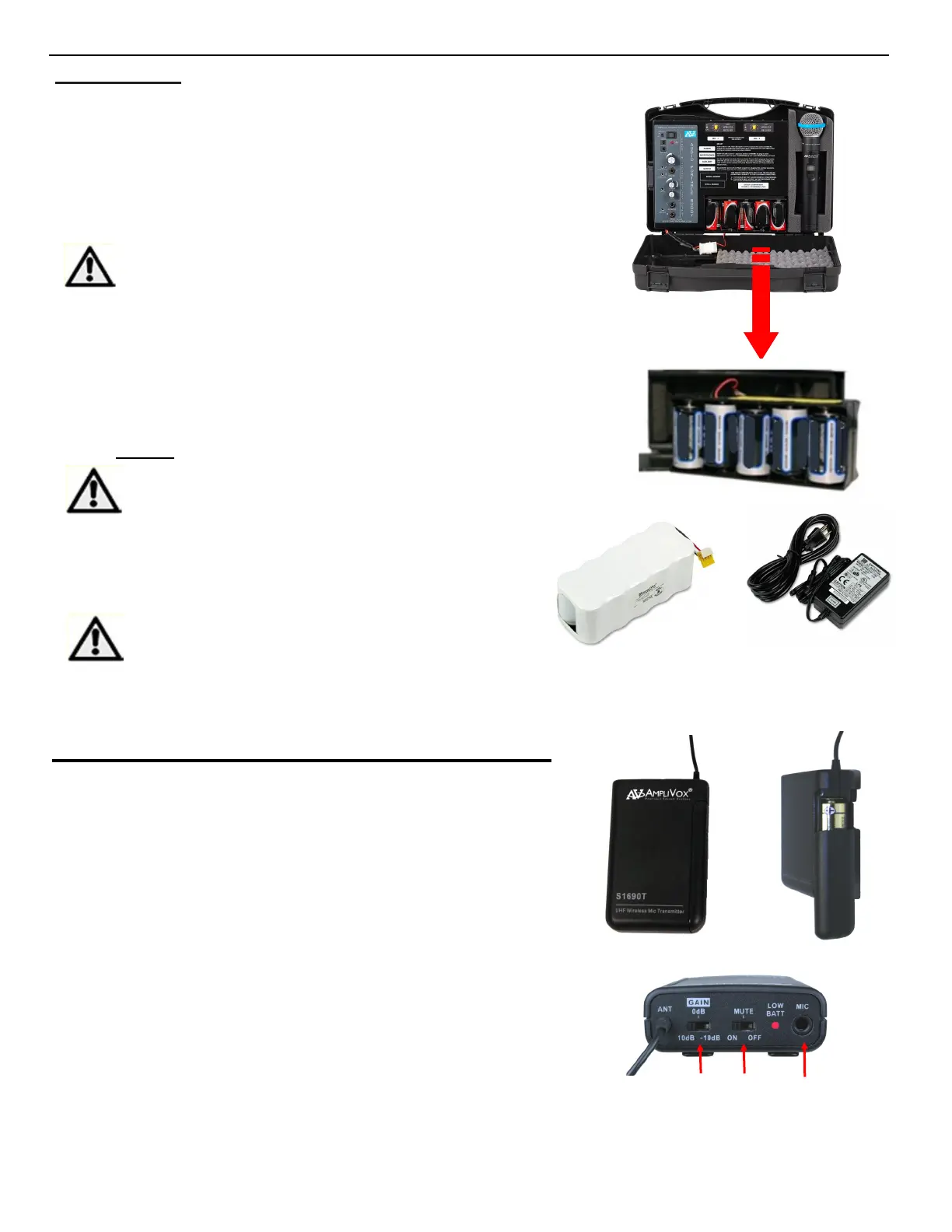

Fig 4
Fig 3
Fig 2
Fig 1
INSTALL BATTERIES
A
B
S-1460
S-1465
C
