INSTALLATION INSTRUCTIONS
Install gas hob KMG* / PAG 5.0*

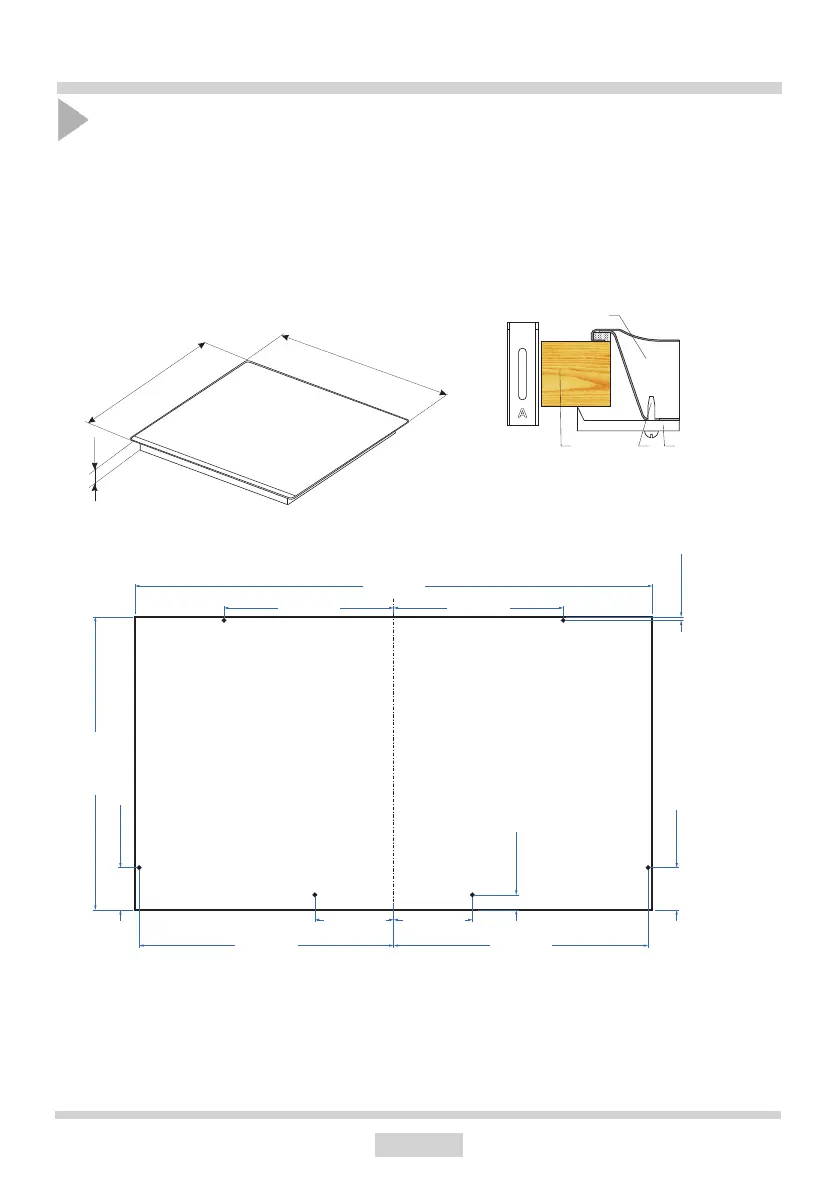

● prepare an opening in the worktop of a kitchen cabinet, as per the installation drawing
● Ensure a minimum clearance of 130 mm below the gas or gas-electric hob.
● connect the hob to a gas and electrical system in accordance with the instructions supplied,
● loosely attach xing brackets to the bottom of the hob,
● remove dust from the worktop, insert hob into the opening and press in rmly,
● position xing brackets (Fig.) perpendicularly to the hob's edge and tighten rmly,
● once you install the hob in the worktop, check if it operates, especially the ame failure
cut-o and igniter.
1 - Worktop
2 - Screw
3 - Bracket
4 - Hob
4
321
CAUTION:
- dimensions given in brackets apply to the installation of PAG5* hobs.
- the rear edge of the worktop opening should be located at least 60 mm from the rear kitchen
wall.
590 (890)
520
52
280,00 mm 280,00 mm
130,00 mm 130,00 mm
420,00 mm 420,00 mm
70,00 mm
484,00 mm
70,00 mm
6,00 mm
25,00 mm
854,00 mm
