INSTALLATION

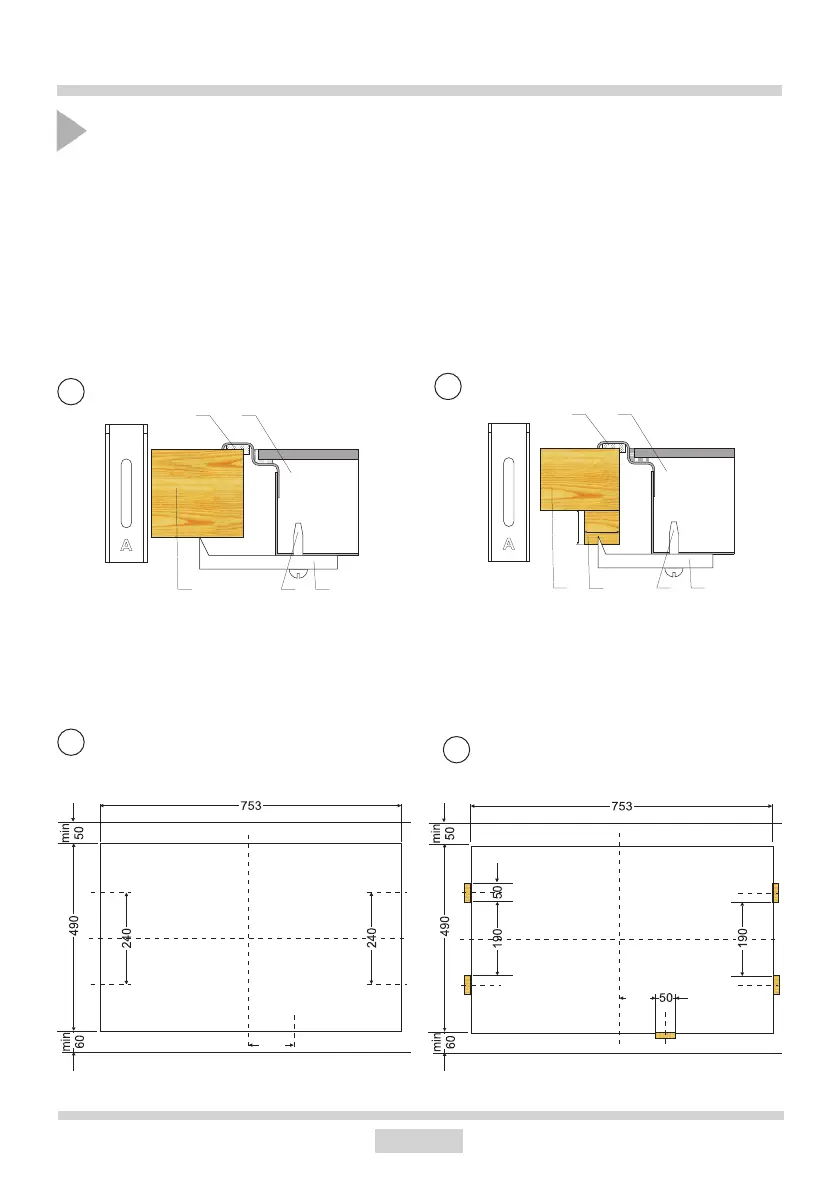

• Use four “A” brackets for 38 mm thick worktops. Fit the hob into worktop opening as shown
on figure 2 and 3. To properly secure hob in 28 mm thick worktop, use four 15x15x50 mm
wooden blocks in addition to “A” brackets. Fit the hob into worktop opening as shown on
figure 4 and 5.
• Check if adhesive seal is properly applied to the hob’s flange. Loosely attach fixing brackets
to the bottom of the hob
• Remove dust from the worktop, insert hob into the opening and press in firmly,
• Position fixing brackets perpendicularly to the hob’s edge and tighten firmly.
• To ensure correct installation use the front bracket included with your appliance.
1. worktop
2. screw
3. xing bracket
4. hob
5. seal
1. worktop
2. screw
3. xing bracket
4. hob
5. seal
6. wooden block
3
4
5
Installing hob - bracket
2
51,5
26,5
+2
+2
54
321
54
321
15
15
6
