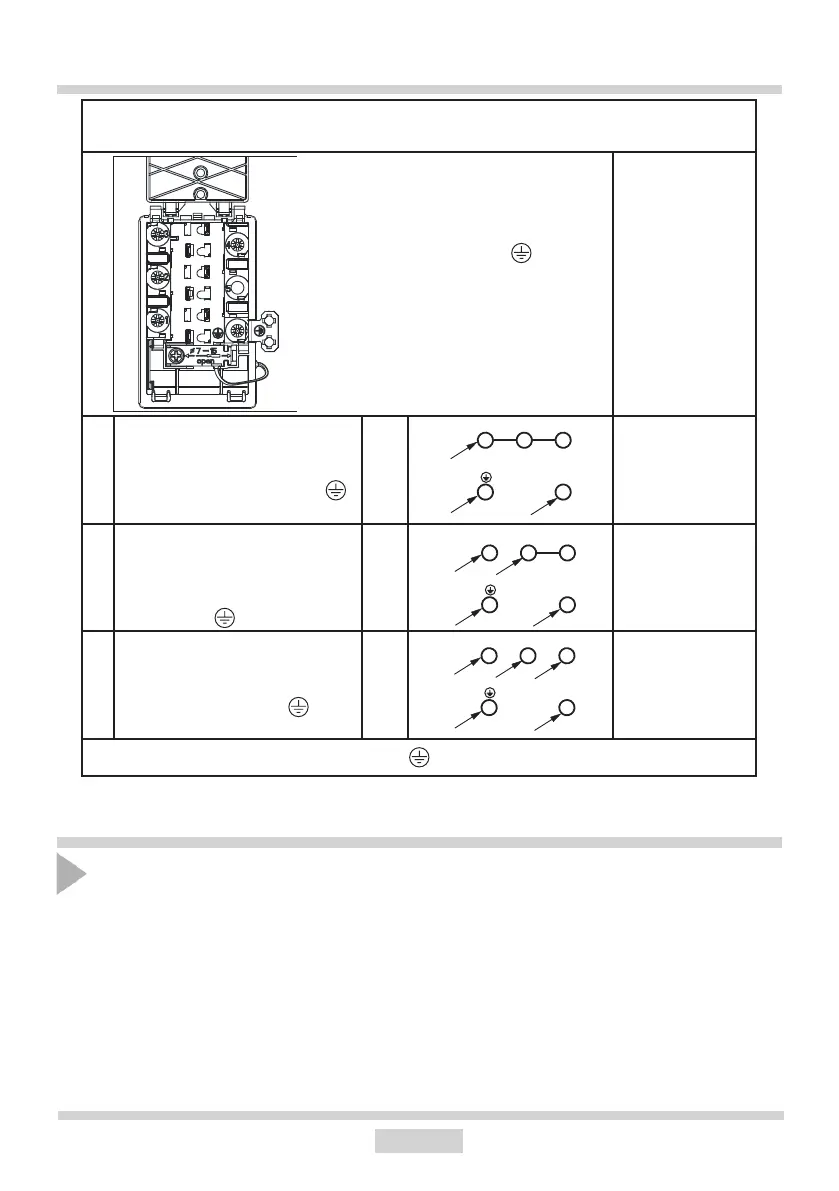

WIRING DIAGRAM
Important! Heating elements operate at 230V.
Recommended
connection lead
1 230 V single phase connection with
a neutral lead, terminals 1-2-3 are
bridged, neutral lead to terminal 4,
and the protective conductor to
1N~ H05VV-F3G4
3X 4 mm
2
2 400/230V two phase connection
with a neutral lead, terminals
2-3 are bridged, neutral lead to
terminal 4, and the protective
conductor to
2N~ H05VV-F4G2,5
4X 2,5mm
2
3 For a 400/230 V three phase
connection with a neutral lead
connected to terminal 4, and the
protective conductor to
3N~ H05VV-F5G1,5
5X 1,5mm
2
L1=R, L2=S, L3=T, N=neutral lead connection, =protective lead terminal
Important! For each con-
nection the protective con-
ductor must be connected
to the terminal marked
1
2
3
4
PE
L1
N
1
2
3
4
L1
L2
PE
N
1
2
3
4
L1
L2
PE
N
L3
INSTALLATION
OPERATION
Before rst use
● carefully clean the ceramic plate treating it as a glass surface,
● when used for the rst time the plate can give o a bit of a smell so switch on the ventilation
system or open the window,
● operate the plate observing the safety instructions.
