INSTALLATION

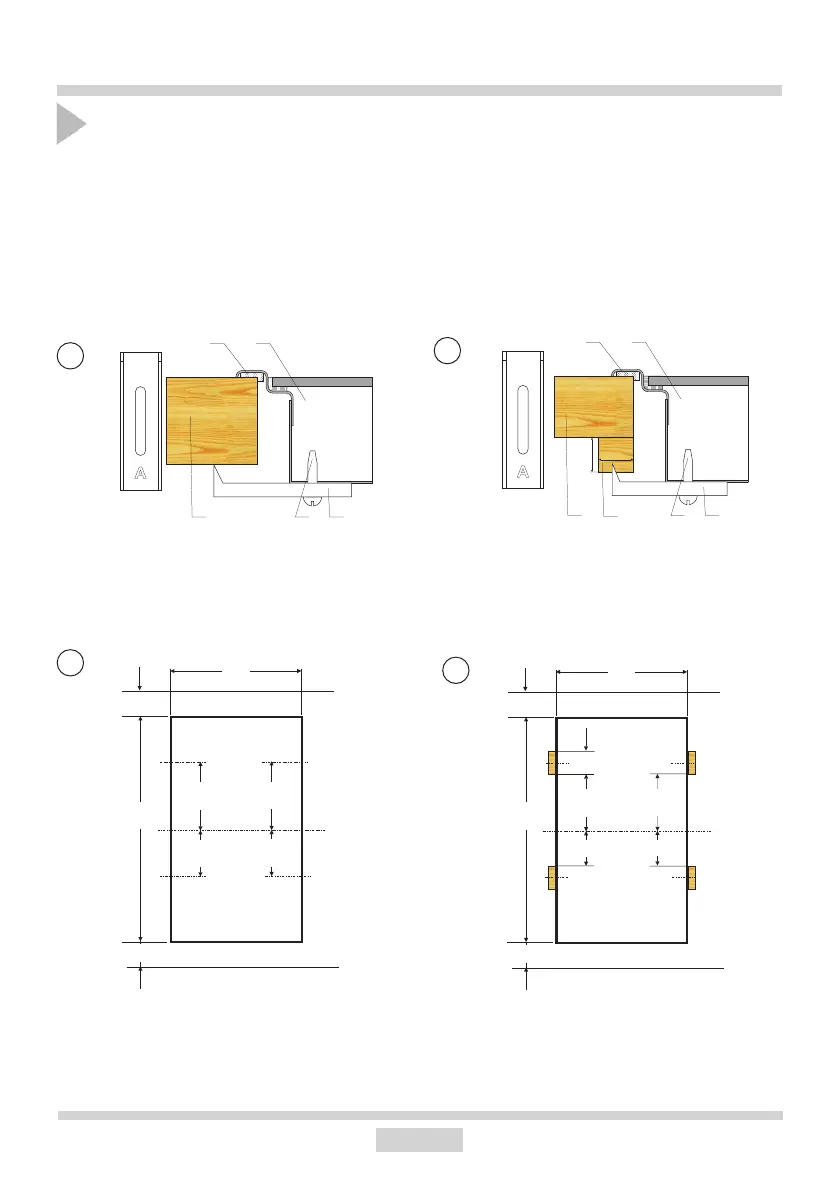

● Use four “A” brackets for 48 mm thick worktops. Fit the hob into worktop opening as shown
on figure2 and 3. To properly secure hob in 28 mm and 38 mm thick worktop, use four
15x15x50 mm wooden blocks in addition to “A” brackets. Fit the hob into worktop opening
as shown on figure 4 and 5.
● Check if adhesive seal is properly applied to the hob’s flange. Loosely attach fixing brackets
to the bottom of the hob
● Remove dust from the worktop, insert hob into the opening and press in firmly,
● Position fixing brackets perpendicularly to the hob’s edge and tighten firmly.
1. worktop
2. screw
3. xing bracket
4. hob
5. seal
1. worktop
2. screw
3. xing bracket
4. hob
5. seal
6. wooden block
3
4
5
Installing hob - bracket
2
● The hob has a xed-mounted cable with a neutral contact and may only be connected to a
230 V ~ 50 Hz socket with grounding pin. Socket power circuit should be protected with a 16
A fuse.
150
285
490
min
60
min
50
100
150
100
50
125
285
490
min
60
min
50
75
125
75
54
321
54
321
15
15
6
