- 25 -

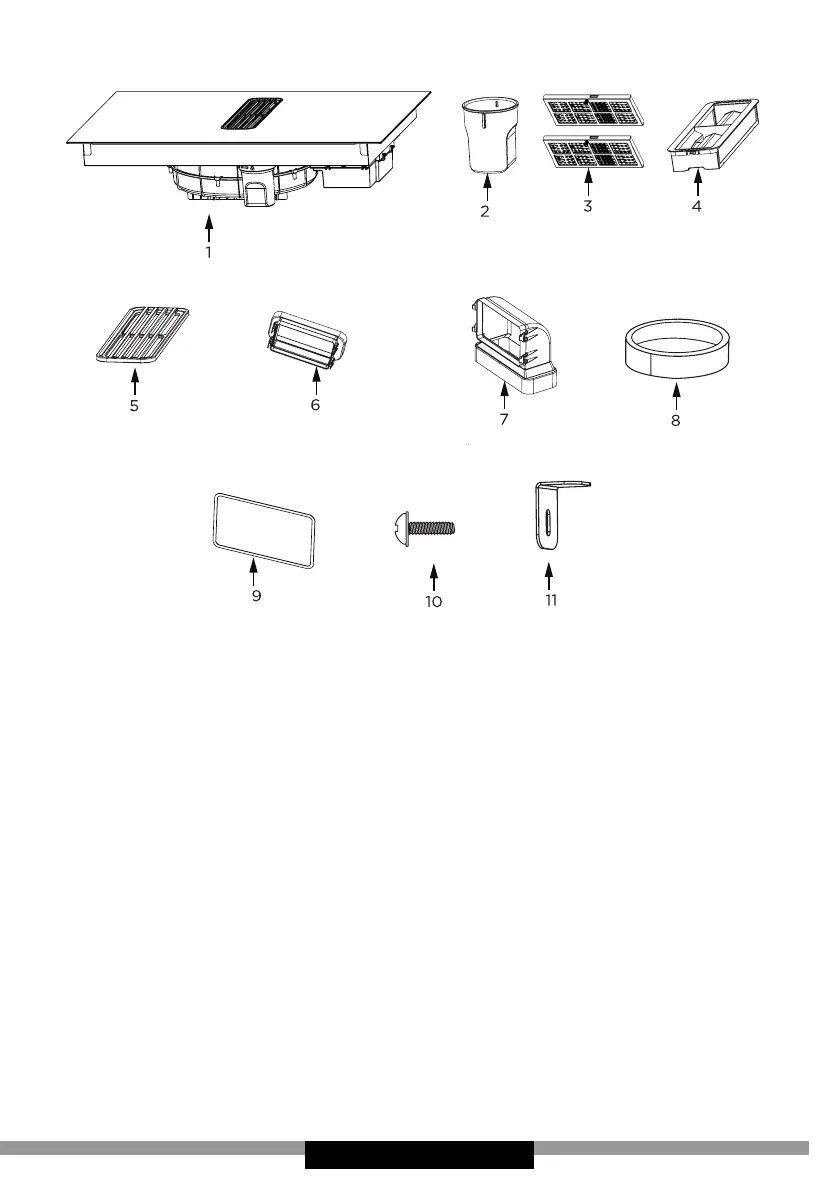

Package contents
1. Induction hob with extractor
2. Water container
3. Activated charcoal lter
4. Grease lter
5. Grille
6. Adapter
7. 90° adapter
8. Sealing tape
9. Seal
10. M4*10 screw (x4)
11. Mounting bracket (x4)
Note!
The optional pipe set for induction hob with extractor is not included with
the appliance and must be purchased separately (PSD 100 DOWNAIR
SET). See the "Pipe set for induction hob with extractor" section for illus-
trations of the kit components and the connection diagram.
Make the worktop recess
• The worktop must be at and level. Edge of the worktop near the wall
must be sealed to prevent ingress of water or other liquids.
• Worktop must be made of materials, including veneer and adhesives,
resistant to a temperature of 100°C. Otherwise, veneer could come
o or surface of the worktop become deformed.
• Edge of the opening should be sealed with suitable materials to pre-
vent ingress of water.
• Worktop opening must be cut to dimensions as shown on gure be-
low (measurement unit [mm]):
