INSTALLATION
SCREW TOTAL QTY. (16) W/CASTERS
#14 1/4 X 3/4
SCREW TOTAL QTY. (12) W/LEGS
BOLT TOTAL QTY. (32)
#20 1/4 X 3/4
LEG TOTAL QTY. (4)
BOTTOM SHELF QTY. (1)
CASTER
MOUNT HOLE
PATTERN
PATTERN
MOUNT HOLE
LEG
Do Not Mount the oven on a curb base. Use casters. Adequate air space at the bottom and rear of the unit must be provided for the
proper venting of the blower motor.
Assembly – Do not use the door to lift or move the oven! The double ovens are installed on casters shipped with the unit.
The standard assembly parts or casters for the single oven are shipped separately, within the crated unit.
Single Oven – Assemble the leg / stand assembly as follows:
1. Remove the legs from the package.
2. Referring to Figure 1, secure bottom shelf to the legs, using bolts, and nuts provided. Tighten all bolts securely.
3. Place oven on the top of leg / stand assembly. Match holes on the frame with oven bottom base. Fasten with bolts
provided. For the bottom shelf and rack support:
a. Screw the bottom shelf to the legs.
b. Screw the guide support angles to the bottom shelf and top leg frame.

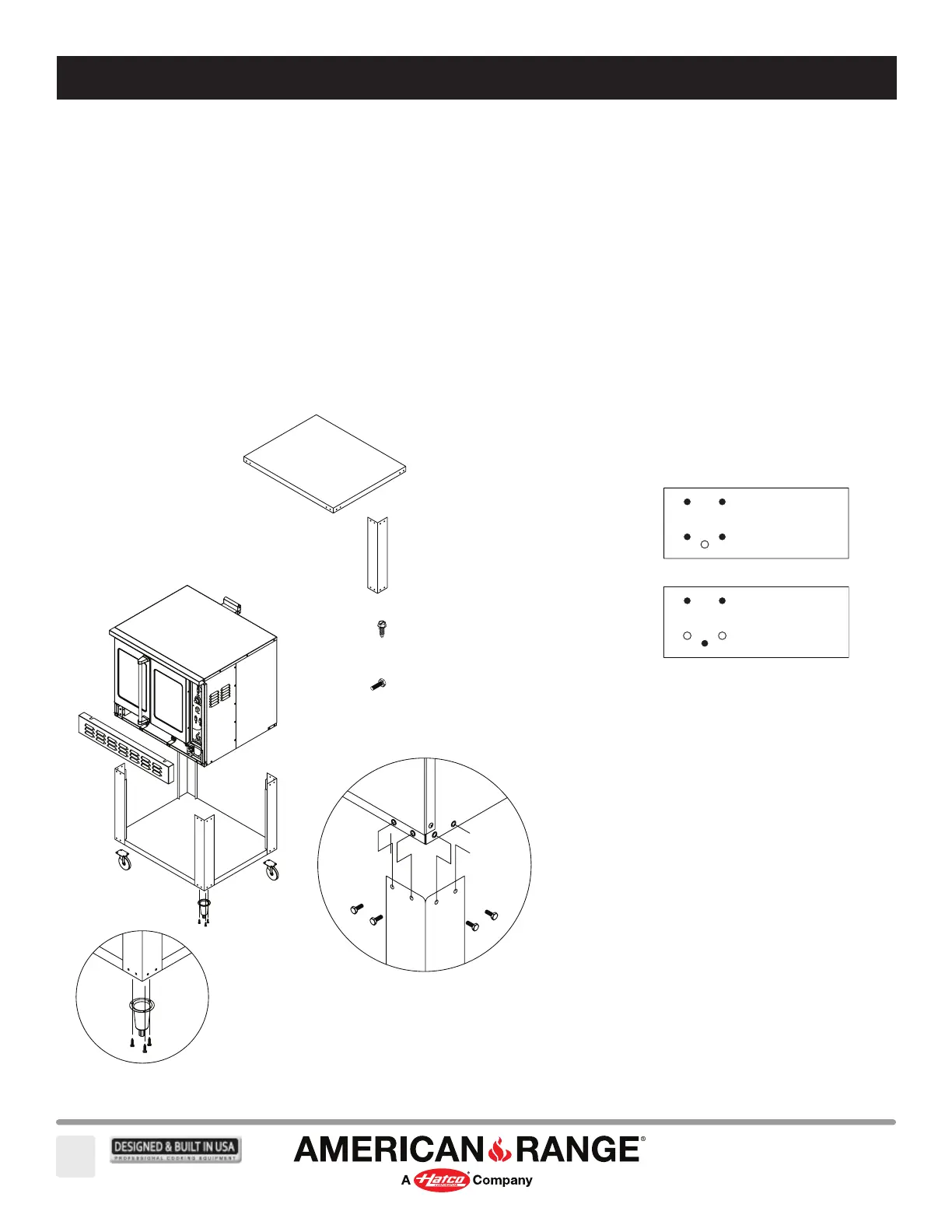

Figure 1
