RETAINING ARM
INSTALLATION

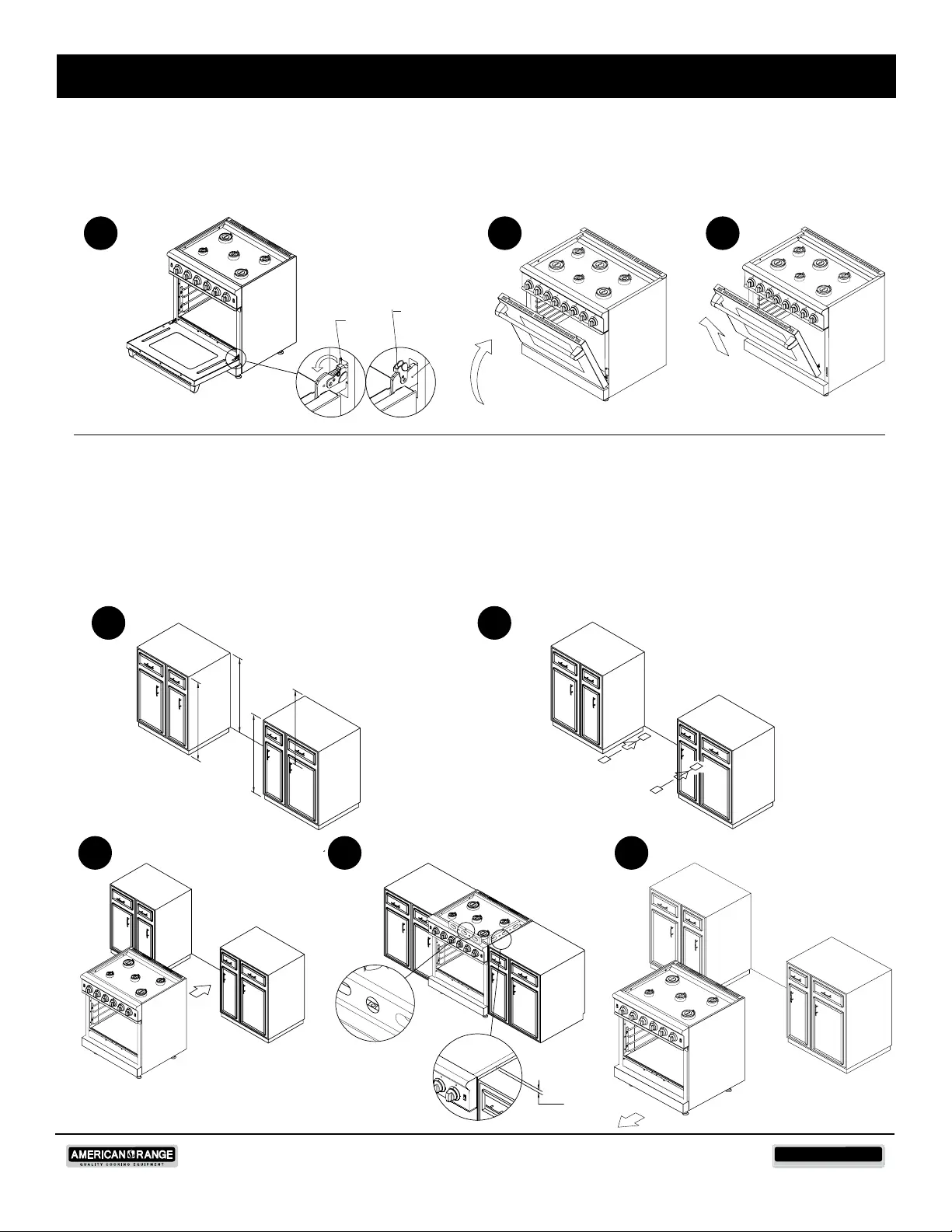

STEP ONE: REMOVE THE OVEN DOOR (Repeat steps A - C for second door, if applicable)
A. Open door to its fully opened position and remove oven racks. Using a screwdriver, rotate the catch over
the retaining arm on each hinge
B. Gently close the door until catch stops the door
C . Hold the door with both hands just below the handle and pull it away from the oven while continuing to lift.
A B C
RETAINING
ARM
STEP TWO: LEVEL THE RANGE
D. Measure the four corners in each cutout area to verify that ooring is level
E. For uneven or sloped oors, level unit with metal shims only, as the adjustment required may exceed the thread available in
the leg.
F. IMPORTANT: Remove/peel-off all protective plastic lm from stainless steel and move unit into opening. If possible, use
protection for the oor.
G. Check that unit is level side to side and front to back. Side trim of the high corner must be 3/8” above countertop.
H. Pull oven straight out. Install Anti-Tip Device according to installation instructions found inside the Anti-Tip Device kit.
D
DESIGNED & BUILT IN USA
PROFESSIONAL COOKING EQUIPMENT
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
9
3/8"
(1cm)
3/8"
(1cm)
E
F G H
