American DJ Vizi Beam 12RX handleiding
Handleiding
Je bekijkt pagina 30 van 34
30
SPECIFICATIONS
Light Source:
260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.)
Color temperature: 7800K
Features:
Motorized Focus + 16-bit ne focus
2-degree beam angle
Frost Filter to create wash effect
High quality glass lens
2 Rotating prisms: 6-facet Linear and 24-facet Circular
0-100% smooth dimming
Various strobe speeds
USB rmware update port
Fan cooled
Color Wheel:
14 dichroic colors + white (Includes CTO, CTB & UV)
Indexable color wheel for split color
GOBO Wheel:
16 static GOBOs + open (4 GOBOs are beam reducers)
GOBO Shake Effect
Prism Wheel:
Rotating, 6-facet linear and 24-facet circular
Control:
2 DMX Channel Modes: 13/17 Channels
Color LCD display with 4-button function menu
Control Mode: DMX512, RDM or internal programs
0-100% smooth dimming
Various strobe speeds
USB rmware update port
With Wired Digital Communication Network
Pan/Tilt:
Pan: 540 degrees (plus 16-bit ne pan)
Tilt: 270 degrees (plus 16-bit ne tilt)
Connections:
DMX Connections: 3-pin & 5-pin DMX In/Out (Data link max: 32 xtures)
Power Connections: IP65 rated power locking In/Out connections to daisy chain power
Electrical:
Multi-voltage operation: 100-240V, 50/60Hz
Max power consumption: 355W (@120V), 344W (@230V)
Dimensions & Weight:
Dimension: 13.8” (L) x 13.5” (W) x 22.25” (H) / 350 x 343.5 x 565mm
Weight: 42.8lbs. / 19.4 kg.
What’s Included:
Omega Brackets
1.83M locking power cable
Rating / Approvals:

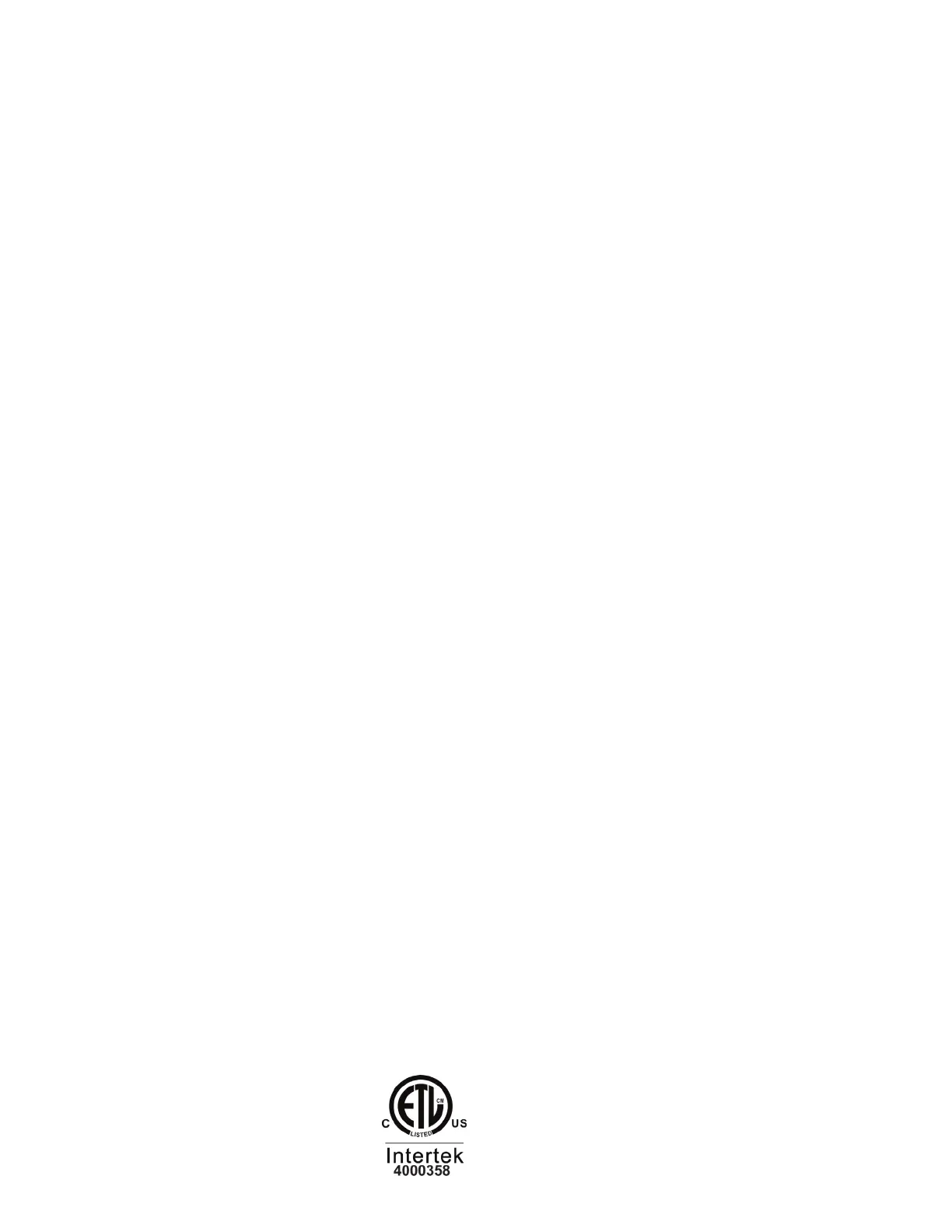

cETLus Approved (Control #4000358)
