INSTALLATION

CLAMP MOUNTING

This fixture features mounting holes on the top of the yoke for the attachment of mounting clamps.

When mounting the fixture to a truss or any other suspended structure, be sure to use a clamp that

is rated to support the weight of the fixture and any associated accessories. Insert a bolt of appropri-

ate size through the bottom of the mounting clamp and the central hole on the mounting bracket, and

secure them together with a matching nut. Additionally, a safety cable of the appropriate weight rating

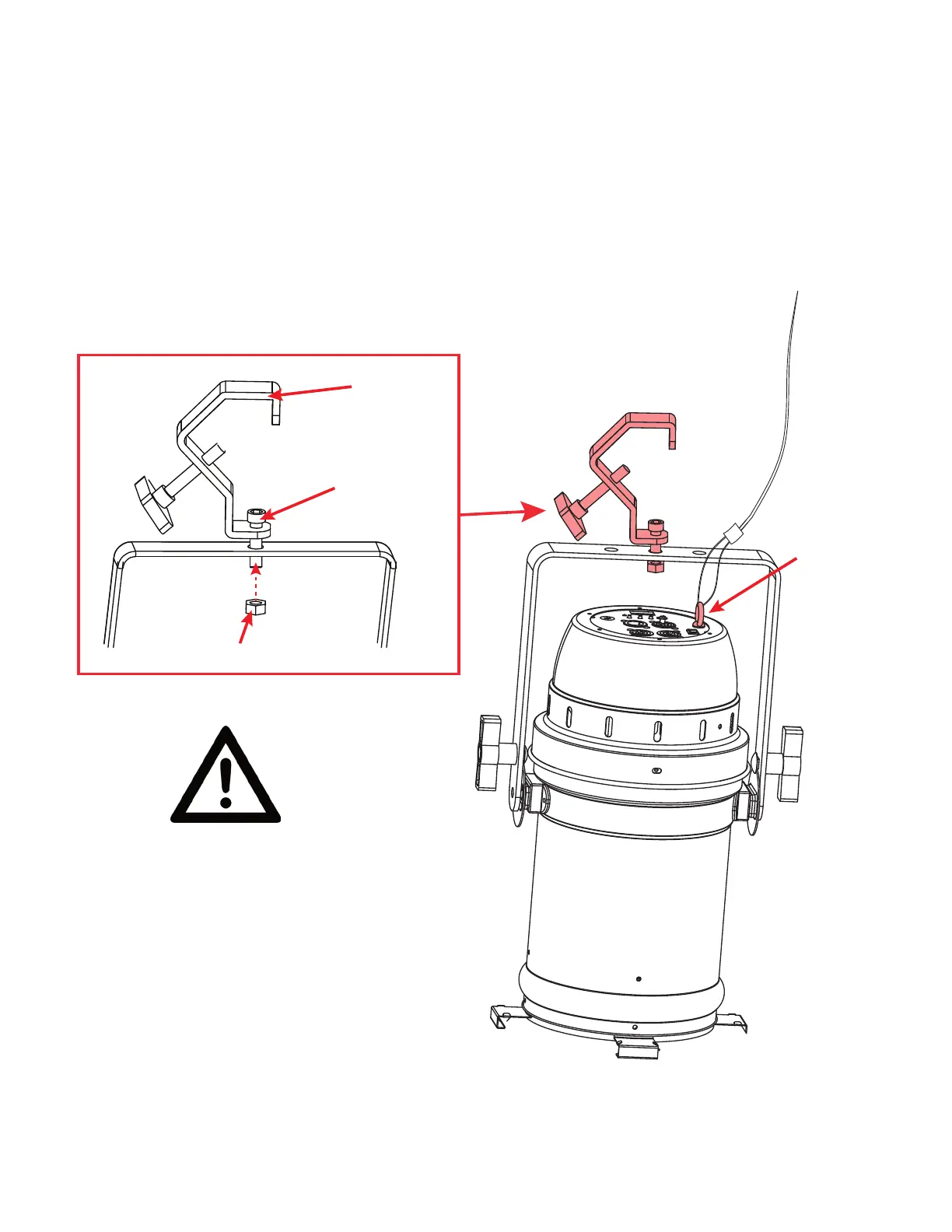

should be secured to the provided attachment point on the rear panel. Please refer to the illustration

below.

SAFETY CABLE:

ALWAYS ATTACH A SAFETY CABLE

WHENEVER INSTALLING THIS FIXTURE

IN A SUSPENDED ENVIRONMENT TO

ENSURE THAT THE FIXTURE WILL NOT

FALL IF THE CLAMP FAILS.

IF THE FIXTURE IS FITTED WITH THE

GEL FRAME ACCESSORY, THE FIXTURE

MUST BE ORIENTED WITH THE LATCH

FACING UPWARDS. THIS IS TO PRE-

VENT THE GEL FRAME FROM FALLING

IN THE EVENT THAT THE LATCH FAILS.

MOUNTING

CLAMP

BOLT

NUT

SAFETY

CABLE

LOOP
